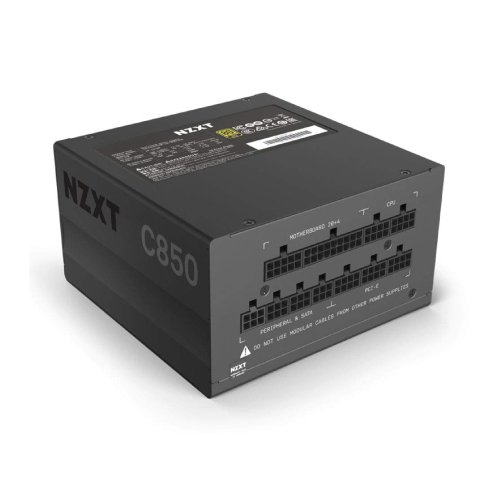

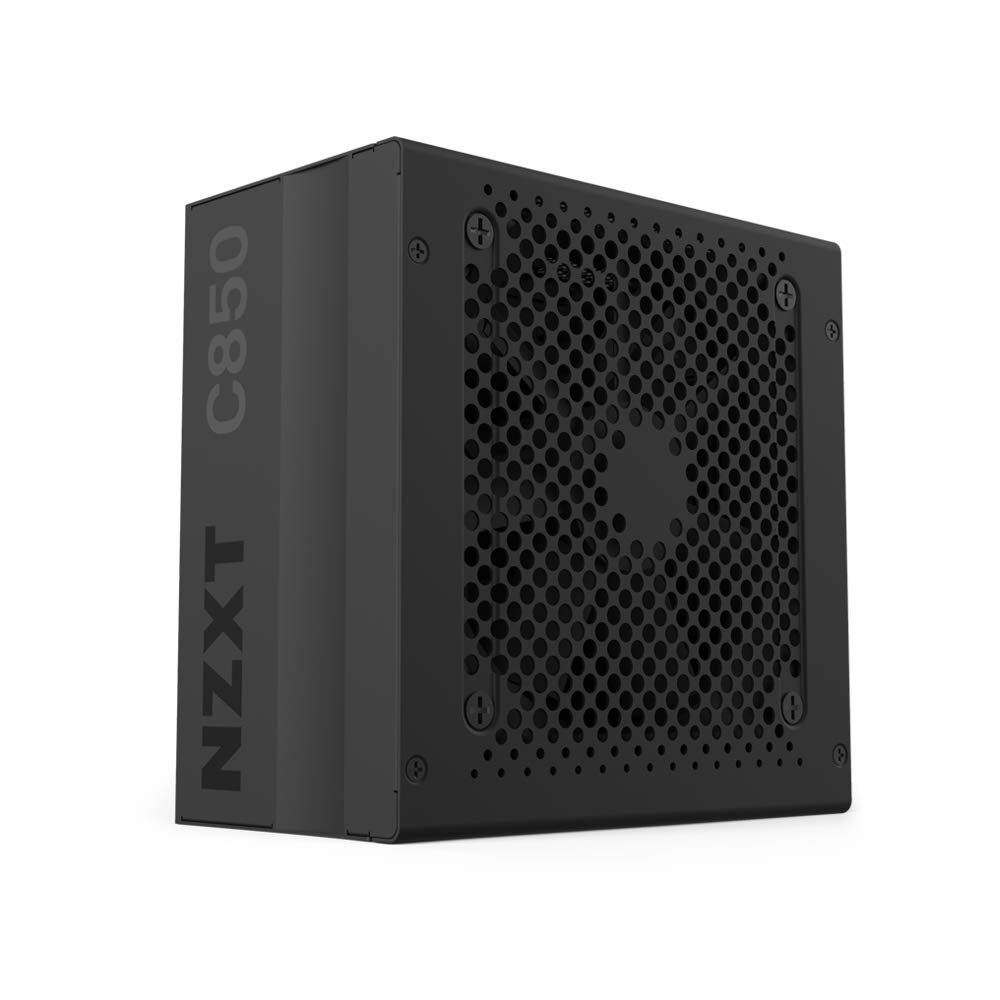

The C850 is an 850-watt power supply unit (PSU) designed by NZXT. Here's a breakdown of its features:
Compatibility and Support:
The C850 fits into any case conforming to the ATX standard. The C750 and C650 variants support NVIDIA GPUs up to 2080ti and AMD GPUs up to Vega 64. The C850 can handle multi-GPU configurations, offering flexibility for users with higher performance needs. Reliable and Efficient Power:
NZXT's C Series power supplies are designed to provide safe, reliable power while maximizing efficiency and minimizing noise. High-quality components are used in manufacturing, ensuring clean and reliable power delivery to your PC gaming system. Modular Design:
The PSU features a modular design, allowing users to connect only the cables they need. This reduces clutter and simplifies installation. The main cables are sleeved, providing both aesthetic appeal and resistance to heat damage and fraying, enhancing durability and longevity. Zero RPM Fan Mode:

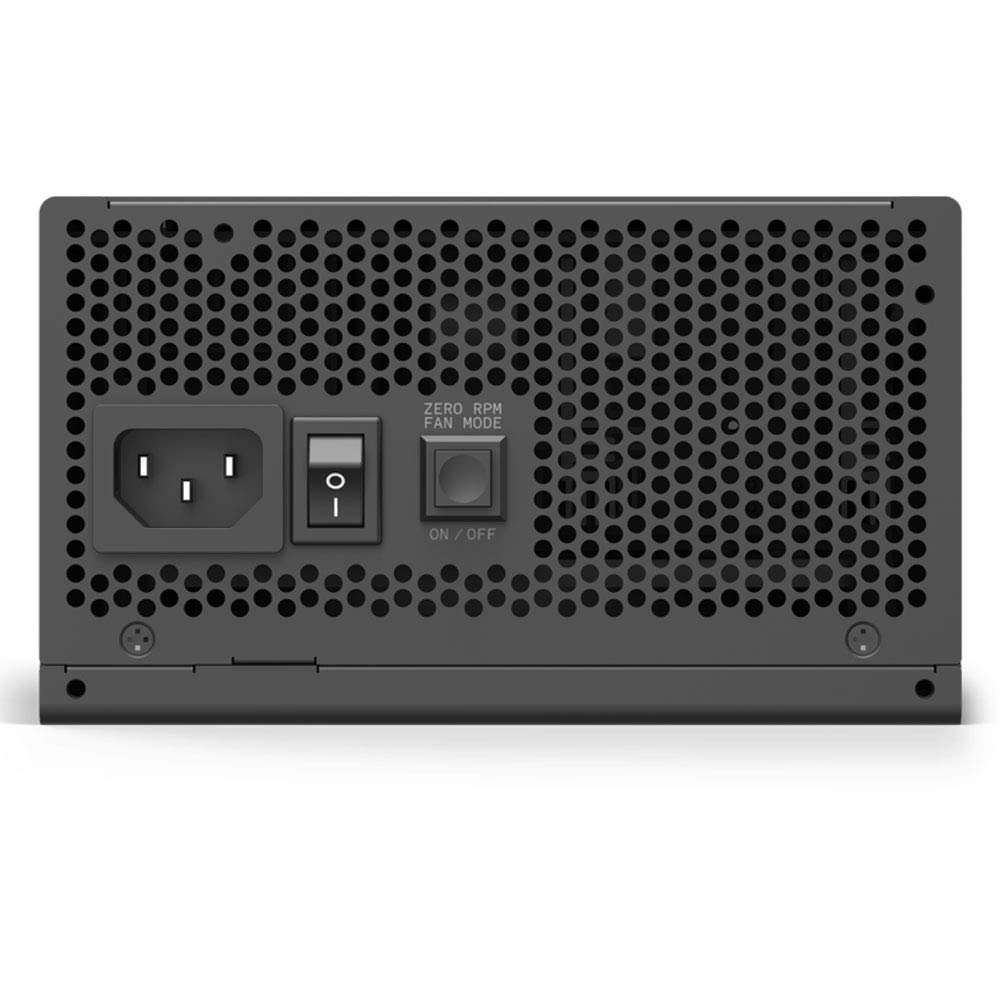

The PSU includes a Zero RPM Fan mode, which silences the fan when the system is under low-load conditions. This helps reduce noise levels during quieter usage scenarios. When cooling is required, the 120mm fluid-dynamic bearing fan efficiently cools the PSU, ensuring system stability even during intense gaming sessions. Warranty and Support:
NZXT offers world-class service and support for their products, including the C Series PSU. The C850 comes with a generous 10-year warranty, providing users with peace of mind and confidence in their PSU's reliability. Overall, the NZXT C850 power supply unit combines reliable performance, efficient design, and robust warranty coverage, making it an excellent choice for gamers and PC enthusiasts seeking high-quality power delivery for their systems.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions | L: 150mm, W: 150mm, H: 86mm |
| Material(s) | Steel, PCB, and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| PF Correction | Active@0.99 |
| AC Input Rating | 100-240Vac, 9-4.5A, 50-60Hz |
| Fan Specs | Dimensions: W: 120mm, H: 120mm, D: 25mm Speed: 0-2,200 + 220 RPM Airflow: 73.9 CFM Noise: 32.3 dBA Bearing: FDB (Fluid Dynamic Bearing) |
| Hazardous Materials | RoHS & China RoHS |
| Energy Efficiency | 80 Plus Gold 20% loading: 87%, 50% loading: 90%, 100% loading: 87% @115Vac |
| Operation Temperature | 0 to 50°C |
| Regulations & Certifications | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC |
| MTBF | 100,000 hours |

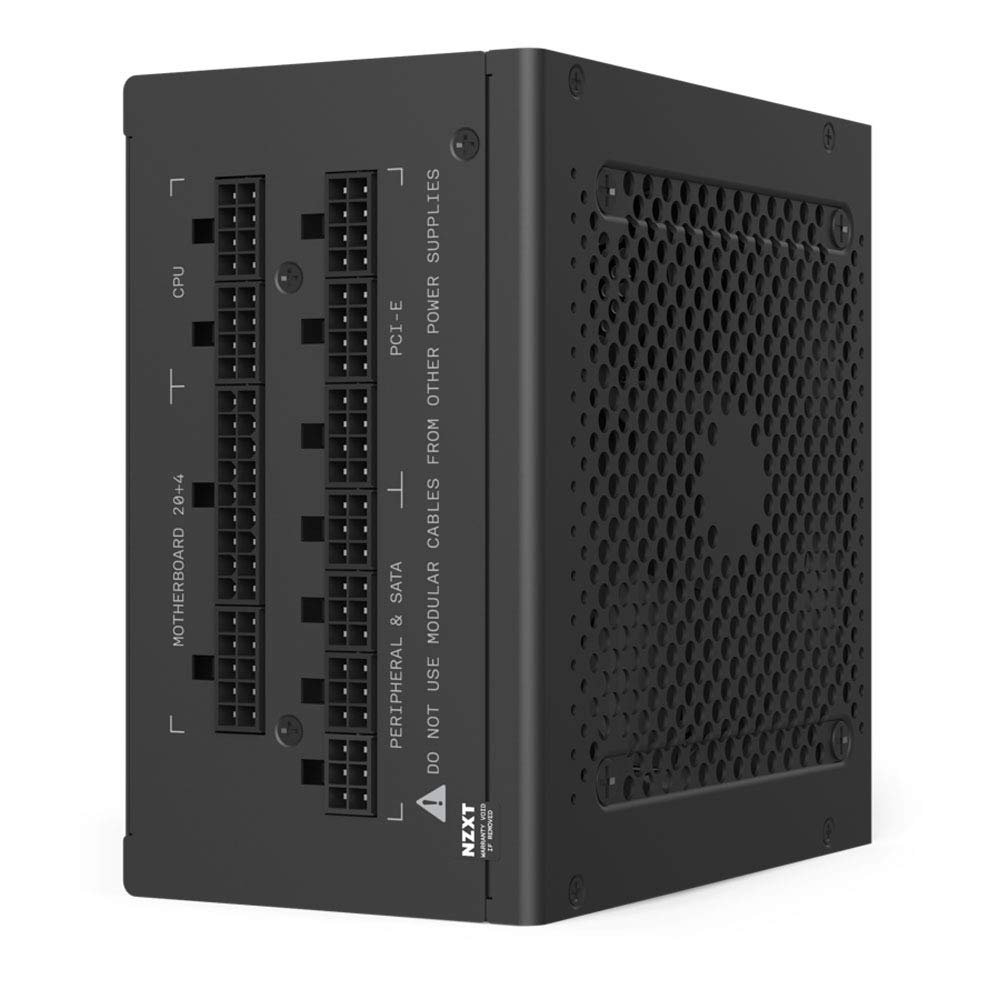

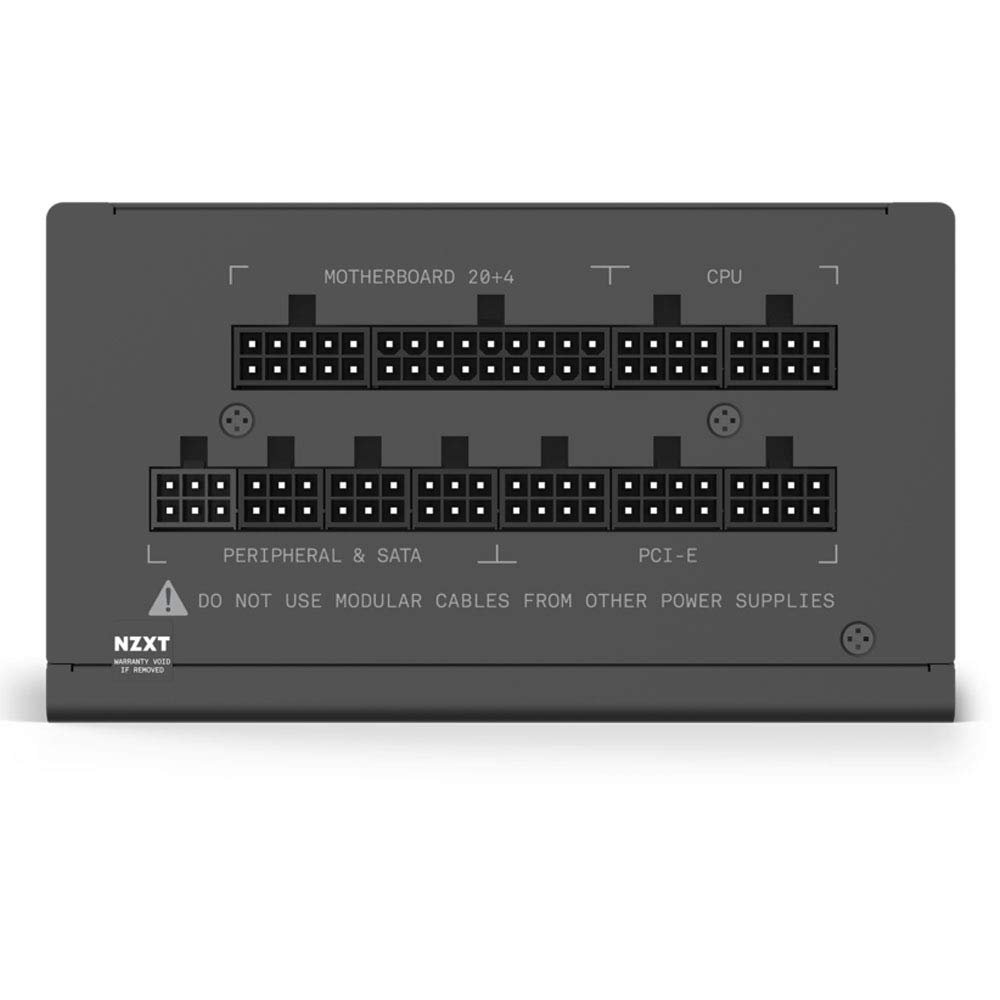

| Output Connector(s) | 1 x 24-pin ATX power 2 x 4+4-pin CPU power 6 x PCIe (6+2 pin) 8 x SATA 6 x Peripherals |
| Included Cables | 1 x 24-pin ATX power (length: 610 mm, Nylon sleeving) 2 x 4+4-pin CPU power (length: 650 mm, Nylon sleeving) 3 x PCIe (6+2 pin) (length: 675 + 75 mm, Nylon sleeving) 2 x SATA (length: 500 + 100 + 100 + 100 mm) 2 x Peripherals (length: 500 + 100 + 100 mm) |
| Model Number | PA-8G1BB-IN |
| Warranty | 10 Years |
| Note | ***Features, Price, and Specifications are subject to change without notice. |
SMPS
| Brand | NZXT |
| Stock Status | IN STOCK |
| Wattage | 850 WATT |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 6 |
| SATA Connector | 8 |
| Peripheral (4-Pin) | 6 |
