The Thermaltake Toughpower GF3 A3 is a power supply unit (PSU) offering 1050 watts of power. It's certified with 80 PLUS Gold efficiency and is compatible with Intel’s ATX 3.0 specifications. Here's a breakdown of its features:
Native PCIe Gen 5.0 Connector: The PSU is designed with a native PCIe Gen 5.0 connector, allowing it to power up next-gen technology with a new 12VHPWR cable.
Fully Compatible with Intel ATX 3.0 Standards: It meets Intel ATX 3.0 specifications, supporting up to 200% power excursion and reaching 60% low load efficiency. It also complies with required power supply timing standards.
PCIe Gen 5.0 Ready: Equipped with a 16-pin connector, it offers powerful and stable performance for running next-generation GPUs.
Compatibility with Latest Graphics Cards: The GF A3 series is designed to support NVIDIA and AMD graphics cards, catering to their different connection requirements.

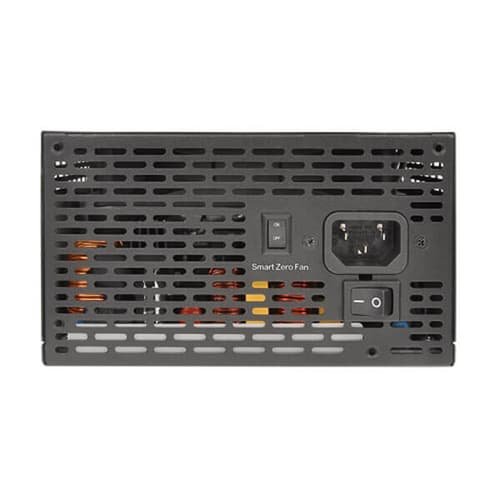

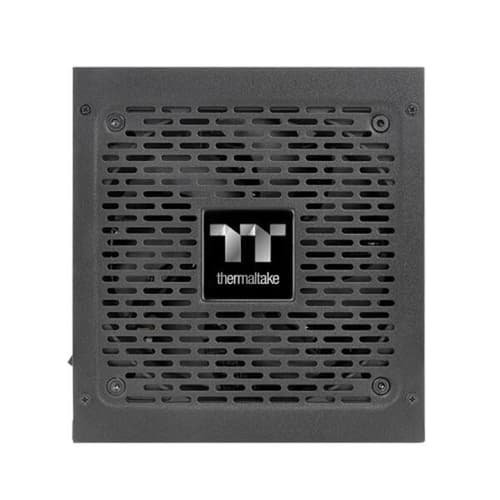

Smart Zero Fan Technology: Featuring a 120mm fluid bearing fan, it delivers excellent airflow. The Smart Zero Fan ensures the fan doesn't spin until the load exceeds 30%, minimizing noise.
High-Quality Japanese Main Electrolytic Capacitor: Utilizing high-quality Japanese capacitors improves durability and ensures stability and reliability.
High Amperage Single +12V Rail: This PSU provides a powerful single +12V rail, ensuring stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection: To safeguard hardware, it includes protections like OCP, OVP, UVP, OPP, SCP, and OTP.

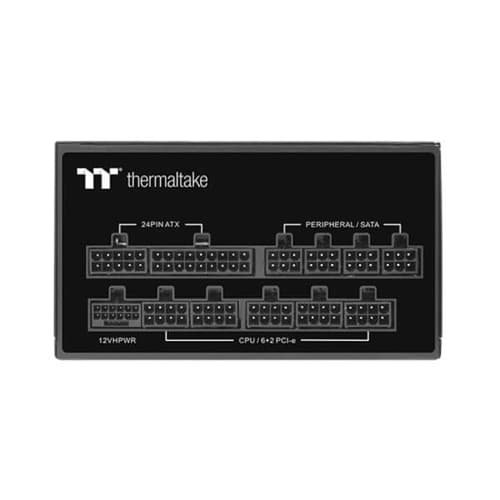

Fully Modular Low-Profile Flat Cables: Offers cable selection while powering the system at an advantageous voltage. Low-profile black cables ease cable management, reduce clutter, and improve airflow.
80 PLUS Gold Certified and Lake C6/C7 States Ready: With high energy efficiency up to 90%, it's certified to 80 PLUS Gold standards. It's optimized to work with all generations of Intel’s processors for maximum energy savings.
Specifications
| Specification | Details |
|---|---|
| Model Number | PS-TPD-1050FNFAGD-H |
| Watts | 1050W |
| Max. Output Capacity | 1050W |
| Color | Black |
| Dimension (W/H/D) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 15A Max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100 - 240Vac |
| Operating Temperature | 0°C to + 45°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1 (600W) |
| Warranty | 10 Years |
SMPS
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| Wattage | 1050 WATT |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 5 |
| SATA Connector | 12 |
| Peripheral (4-Pin) | 4 |
| Series | TOUGHPOWER |
