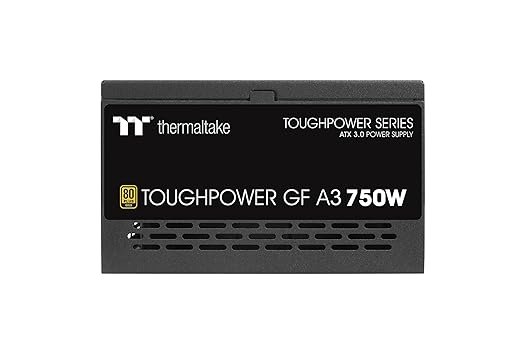

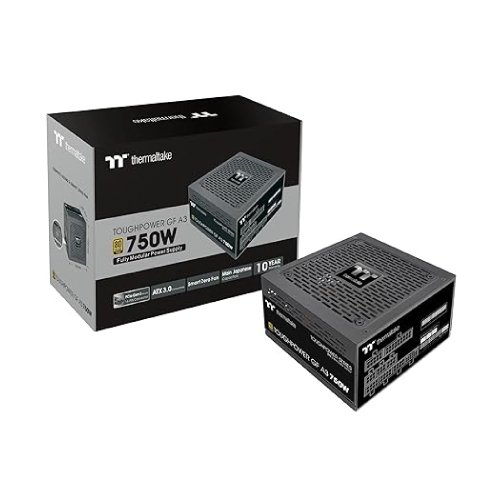

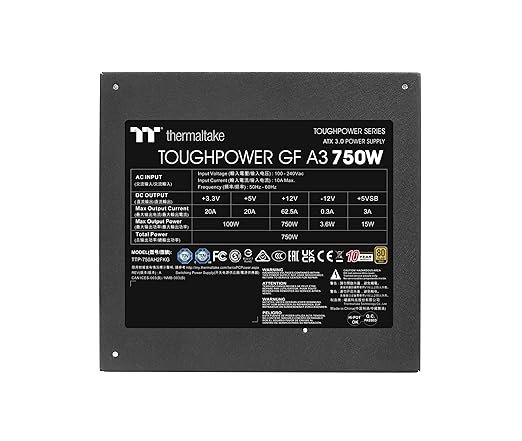

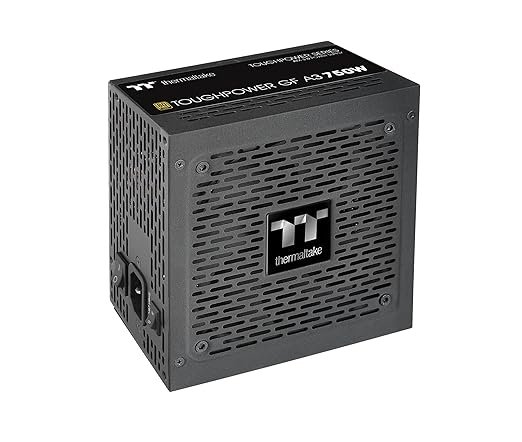

The Toughpower GF 750W power supply offers several features aimed at providing high efficiency, reliable performance, and quiet operation. Let's break down these features:
80 PLUS Gold Efficiency: The Toughpower GF 750W is designed to deliver 80 PLUS Gold efficiency, ensuring that up to 90% of the electrical energy drawn from the wall is converted into usable power for your system. This high efficiency not only reduces energy waste but also helps to lower your electricity bills.
140mm Fluid Dynamic Bearing Fan: Equipped with a 140mm ultra-quiet Fluid Dynamic Bearing fan, this power supply ensures excellent cooling performance while operating silently. The fan's design minimizes noise levels, contributing to a quieter computing experience.

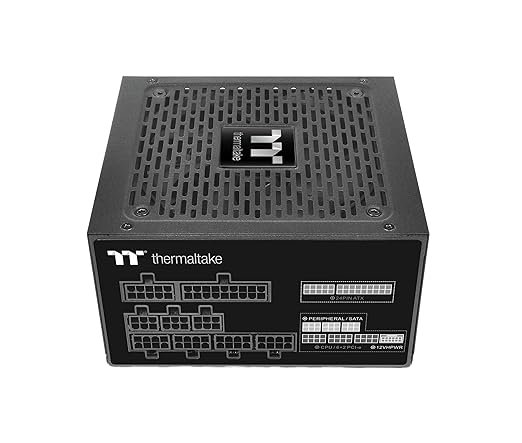

Fully Modular Flat Cable Design: The power supply features a fully modular design with flat black cables. These cables are not only aesthetically pleasing but also make cable installation easier. The modular design allows you to connect only the cables you need, reducing clutter and improving airflow inside your system.
High-Quality Japanese Main Capacitor: The inclusion of high-quality Japanese main capacitors enhances the durability and reliability of the power supply. These capacitors are known for their long lifespan and stable performance, ensuring the Toughpower GF 750W delivers consistent power output even under demanding conditions.
DC to DC for Stable Output Voltage: The power supply employs a DC to DC design, optimizing energy conversion and output voltage stability. This design efficiently adjusts voltage levels for 12V, 5V, and 3V to match the load requirements of your system, ensuring stable and reliable power delivery to all components.
High Amperage Single +12V Rail: The power supply features a powerful single +12V rail, providing stable and reliable power distribution to all components in your PC. This ensures consistent performance and minimizes the risk of voltage fluctuations, which can damage sensitive hardware.
80 PLUS Gold Certified and Lake C6/C7 States Ready: The Toughpower GF 750W is 80 PLUS Gold certified, indicating its high energy efficiency and reduced power consumption. It is also optimized to work with Intel's C6/C7 power states, further enhancing energy savings and compatibility with modern processors.
Overall, the Toughpower GF 750W power supply combines high efficiency, quiet operation, and reliable performance, making it an excellent choice for value-oriented users seeking a premium power supply for their PC builds.
PS-TPD-0750FNFAGD-2 Power Supply Specifications
| Specification | Details |
|---|---|
| Model Number | PS-TPD-0750FNFAGD-2 |
| Watts | 750W |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimension (W / H / D) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load at 230Vac input |
| Input Current | 10A max. |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV/FCC/EAC |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
SMPS
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| Wattage | 750 WATT |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 2 |
| SATA Connector | 3 |
| Peripheral (4-Pin) | 4 |
| Series | TOUGHPOWER |
