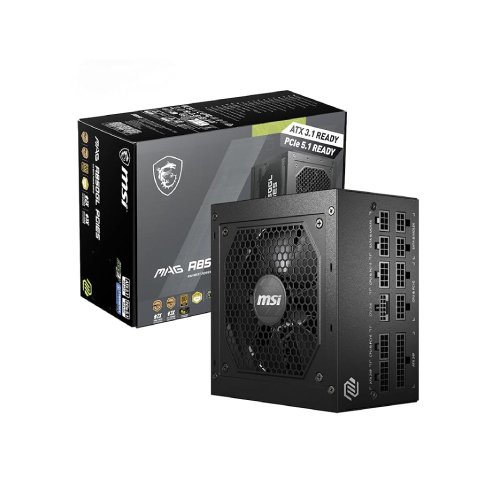

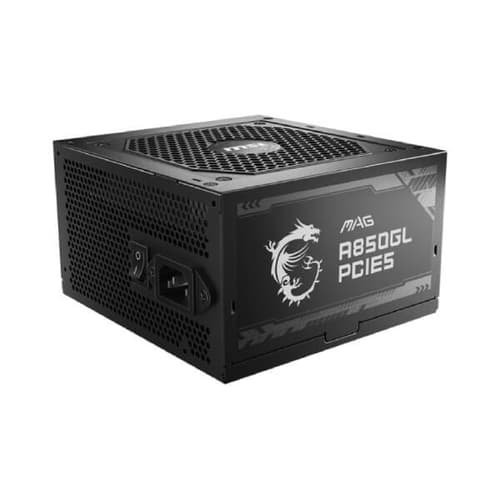

The MSI MAG A850GL appears to be a high-capacity power supply unit designed for gaming and performance-oriented systems. The inclusion of features like PCIe 5.0 support and ATX 3.0 compliance make this model advanced as well as perfect for those users who want their PC performance unstoppable. There are some features of MSI MAG A850GL mentioned below:
This appears to be a power supply unit (PSU) from MSI. The MAG series is commonly associated with gaming products, and the A850GL is likely designed to provide power for gaming and high-performance systems.
The mention of PCIe 5.0 indicates that the power supply is compatible with the PCIe 5.0 standard, which is the fifth generation of the Peripheral Component Interconnect Express interface. PCIe 5.0 offers higher data transfer rates compared to its predecessors.
This suggests that the power supply conforms to the ATX (Advanced Technology eXtended) 3.0 standard. ATX is a form factor specification that includes the physical dimensions and layout of the components on the motherboard and power supply. Version 3.0 likely represents the latest iteration of the ATX standard.
The power supply has a capacity of 850 watts, and it carries an 80 Plus Gold certification. The 80 Plus Gold certification signifies that the power supply is energy-efficient, with a high percentage of power conversion and minimal wastage of heat.
| Specifications | Value |
|---|---|
| Model | MAG A850GL PCIE5 |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |

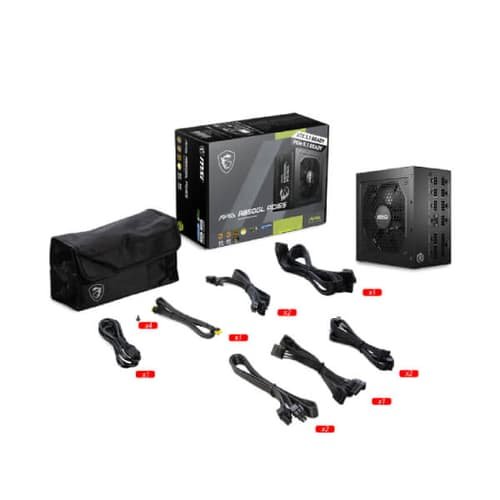

| Modular | Yes (full modular) |

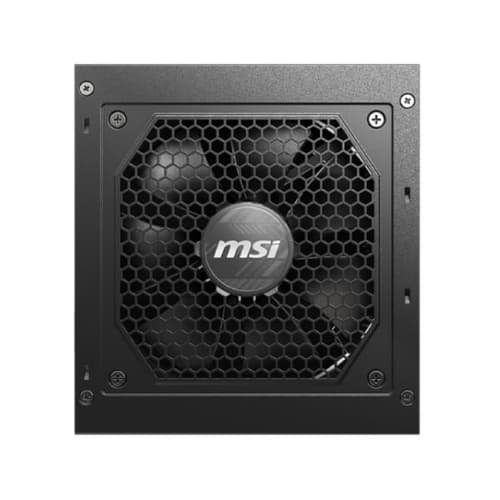

| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

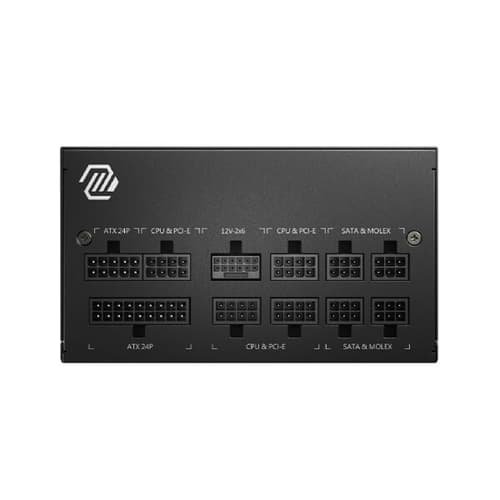

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 7 Years |
SMPS
| Brand | MSI |
| Stock Status | IN STOCK |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 4 |
| SATA Connector | 8 |
| Peripheral (4-Pin) | 4 |
| Series | MAG SERIES |
