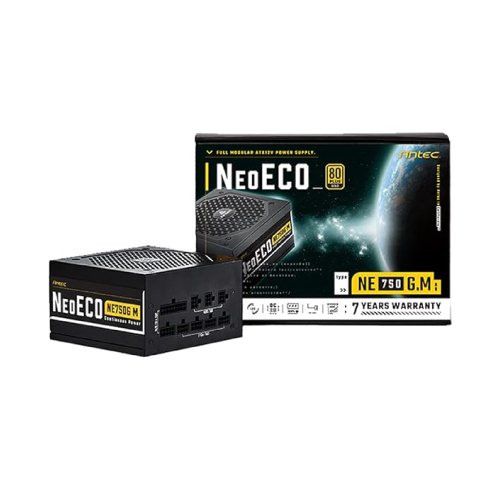

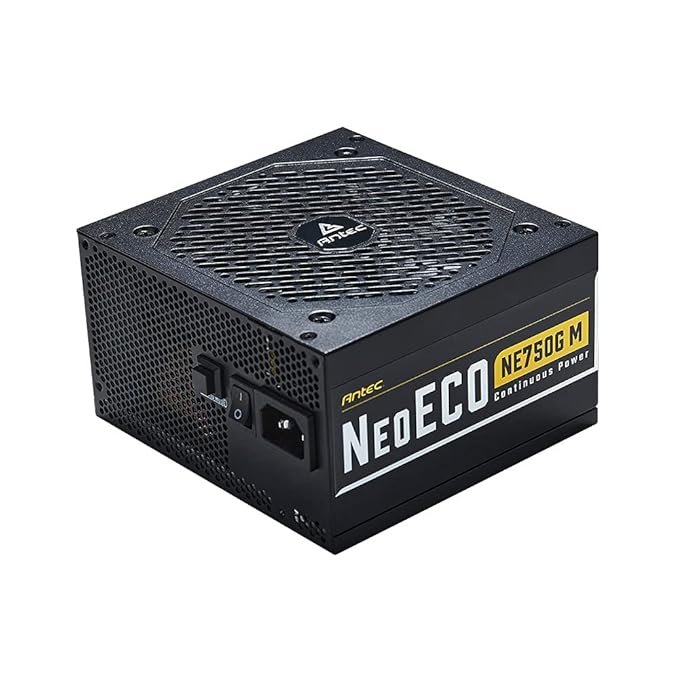

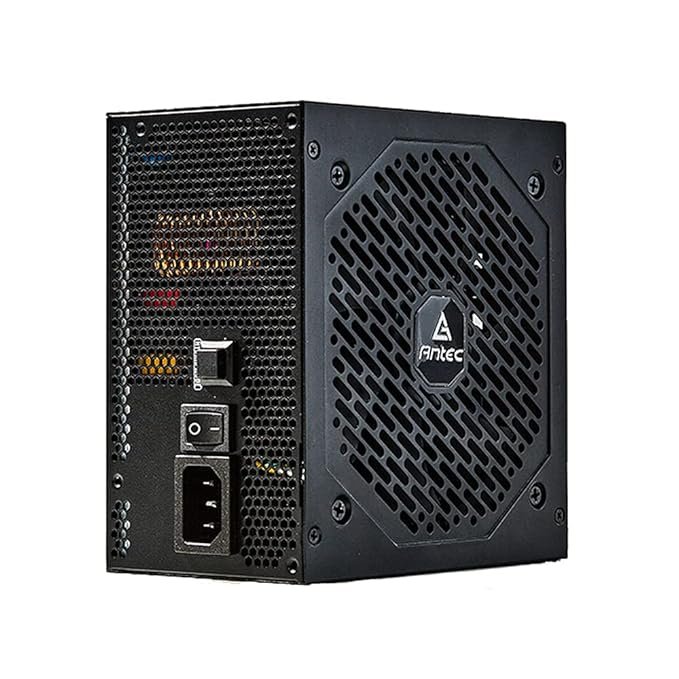

The Antec NE750G M 80 Plus Gold Power Supply is designed for enthusiasts seeking an exceptional DIY-PC experience, combining high performance and stability. Let's break down the key points:
Overview:
The power supply belongs to the Antec NE750G M 80 Plus Gold Modular series, tailored for DIY-PC enthusiasts seeking the best performance and stability. Features:
750W Continuous Power™: Guarantees 750W of continuous power, ensuring reliable performance from Antec. 100% Modular: Enhances airflow and reduces clutter by allowing users to use only the necessary cables, simplifying cable management. 80 PLUS® Gold Certified: Demonstrates high energy efficiency, reducing electricity bills by delivering power more efficiently to the system. PhaseWave™ Design: Incorporates a server-class LLC design with synchronous rectification based on a DC-DC topology, contributing to improved performance and stability. 7-Year Warranty: Backed by a 7-year warranty, providing users with confidence in the product's durability and reliability. 120mm Silent Fan: Features a whisper-quiet, high-quality fluid-bearing fan with a long lifetime, optimizing the balance between cooling and noise. Zero RPM Manager: Utilizes an advanced low-voltage fan control with a fan-off mode at low loads, ensuring absolute silence. 99%+12V Output: Provides high output for maximum CPU and GPU support. CircuitShield™: Offers a full suite of industrial-grade protections (OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO) for enhanced safety in any environment. High-Quality JP Capacitors: Ensures tight DC stability and regulation, reducing ripple and noise for optimal system performance. 28(18+10) pin MBU Socket: Provides compatibility with possible future MBU connectors, allowing for adaptability to evolving technology. ATX 12V 2.4 Compatibility: Engineered according to the newest PSU guidelines and compatible with the latest CPU generation. Improvements:
120mm Silent Fan: Enhances airflow and durability for improved performance. Zero RPM Mode: Automatically ensures zero fan speed at low loads, minimizing noise and providing absolute silence. Japanese Heavy-Duty Caps: Ensures tight DC stability and regulation, enhancing system reliability. PhaseWaveTM LLC + DC to DC Design: Incorporates a server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology, improving performance and stability. 100% Full Modular:
Enables users to use only the necessary cables, reducing excess cables that can obstruct and reduce airflow, thereby improving cooling performance. In summary, the Antec NE750G M 80 Plus Gold Power Supply is positioned as a high-quality, feature-rich option for PC enthusiasts, emphasizing performance, stability, and ease of use.
| Parameter | Details |
|---|---|
| Product Name | NE750G M |
| Model Name | X7000A081-17 |
| Type | ATX 12V 2.4 |
| Modular | Fully |
| Dimension | 150(L) x 140(W) x 86(H) mm |
| Warranty | 7 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A MAX |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 750W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |

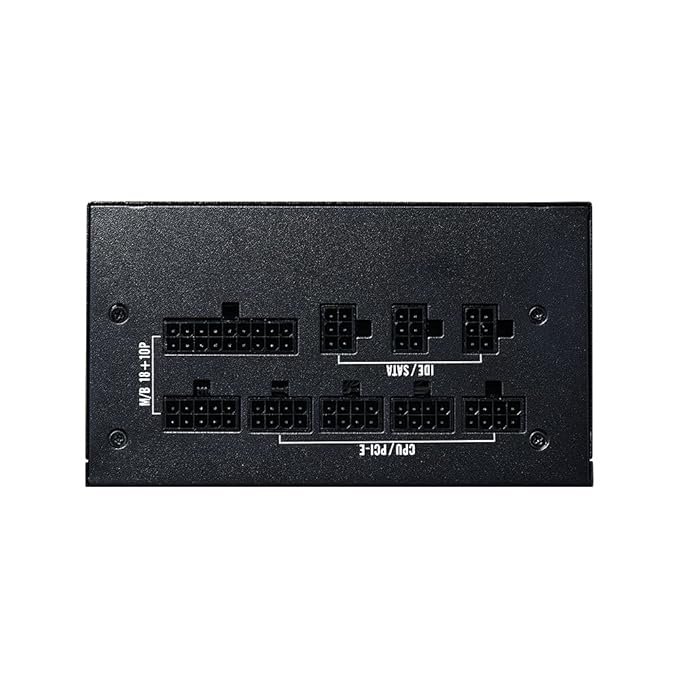

| Connector | 1 x MB 24(20+4) Pin, 2 x 8(4+4) Pin EPS 12V, 4 x 8(6+2) Pin PCI-E, 8 x SATA, 4 x Molex, 1 x FDD |
| Net Weight | 1.37 kgs |
| Gross Weight | 2.53 kgs |
| UPC# | 0-761345-11756-2 |
SMPS
| Brand | ANTEC |
| Stock Status | IN STOCK |
| Wattage | 750 WATT |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 4 |
| SATA Connector | 8 |
| Peripheral (4-Pin) | 8 |
| Series | NEO ECO |
