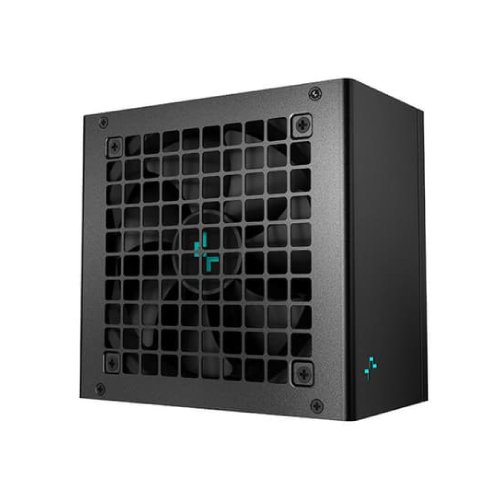

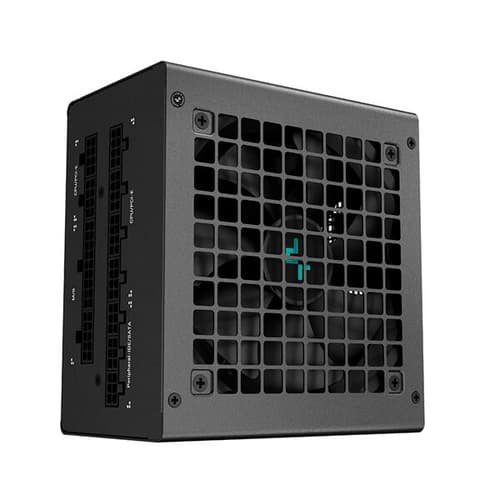

The Deepcool DQ850M-V3L is an 850-watt power supply unit (PSU) designed for computer systems. It features an 80 Plus Gold certification, indicating that it operates efficiently and effectively, with a high level of energy efficiency. This PSU is suitable for powering high-performance gaming rigs, workstations, or any system requiring a reliable and robust power supply.
Some of its attractive features are discussed below:
850 Watts of power output, providing ample power for demanding systems with multiple components such as high-end CPUs, GPUs, and storage drives.
The 80 Plus Gold certification ensures high energy efficiency, meaning it wastes less energy and generates less heat compared to lower-efficiency PSUs.

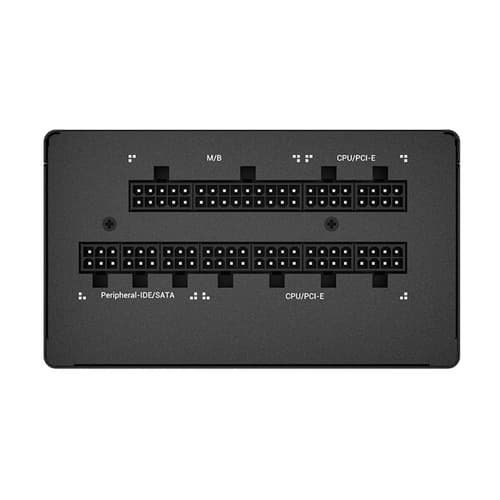

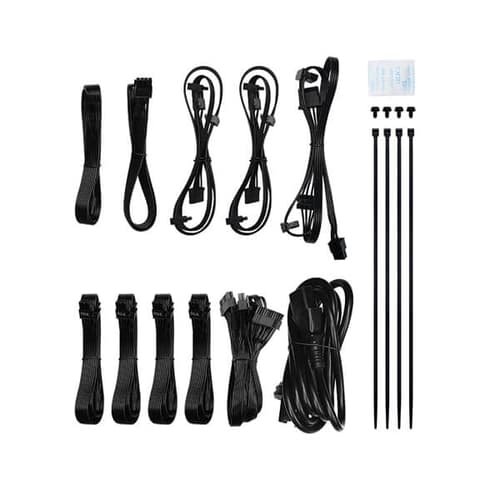

It's a modular power supply, which allows you to connect only the cables you need for your system, reducing clutter and improving airflow within your PC case.
Deepcool is known for producing reliable PC components, and this PSU is likely built with quality components to ensure stable power delivery and longevity.
It likely includes various protection mechanisms such as overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), short circuit protection (SCP), and overpower protection (OPP) to safeguard your components in case of electrical issues.

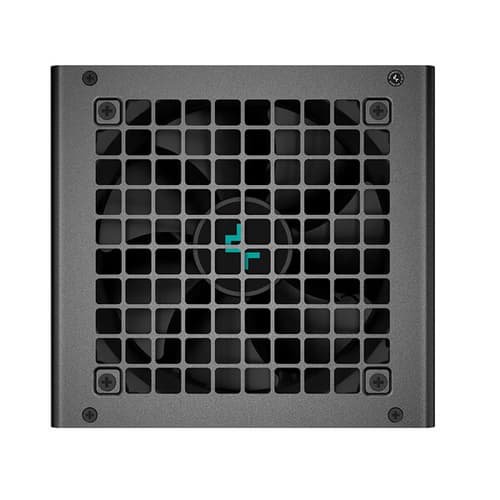

It features a large, quiet fan for cooling, ensuring efficient heat dissipation while keeping noise levels low during operation.
It is compatible with standard ATX cases and motherboards, providing versatile compatibility for a wide range of systems.
| Specification | Value |
|---|---|
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 - 40 °C |
| Regulatory | CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B) |
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| Wattage | 850 Watt |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 3 |
| SATA Connector | 2 |
| Peripheral (4-Pin) | 4 |
| Warranty | 7 Years |
SMPS
| Brand | DEEPCOOL |
| Stock Status | IN STOCK |
| Wattage | 850 WATT |
| Certification | 80 PLUS GOLD |
| Modular | FULLY MODULAR |
| PCle Connector (6+2) | 3 |
| SATA Connector | 2 |
| Peripheral (4-Pin) | 4 |
| Series | DQ SERIES |
