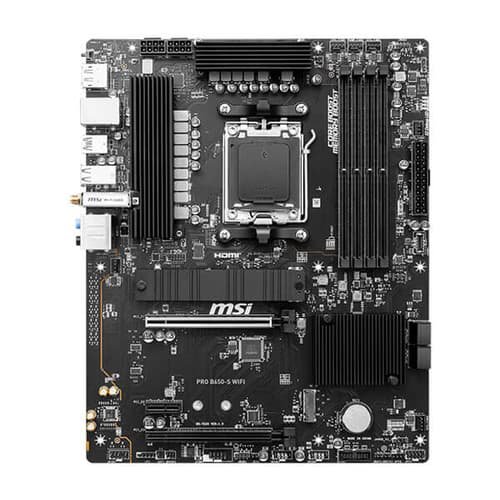

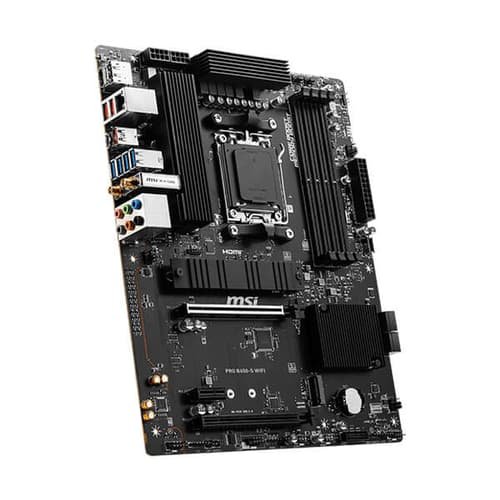

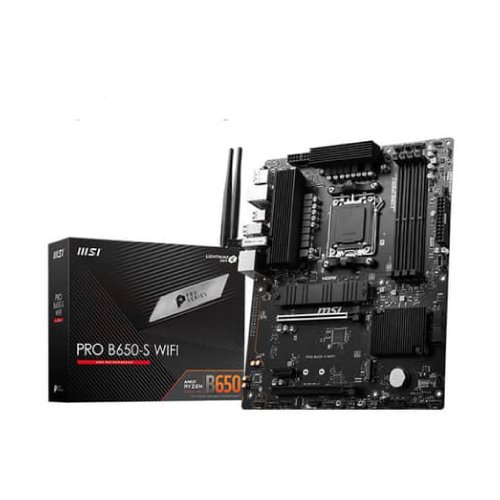

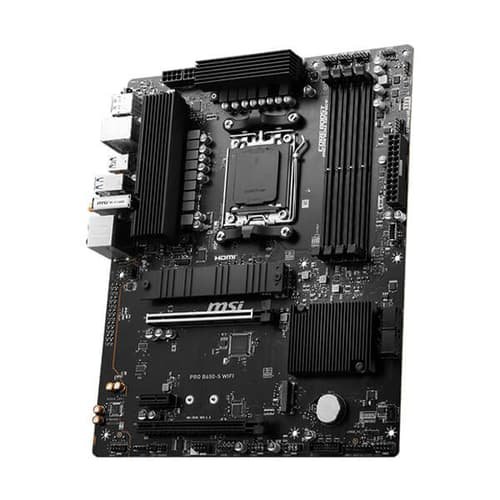

The MSI Pro B650-S WIFI motherboard is part of MSI's professional series designed for business users and professionals who require stability, reliability, and essential f
eatures for their work. Here are some key features and specifications typically associated with this motherboard:
Intel B650 chipset, which is designed to support Intel 10th and 11th Gen processors.
ATX (Advanced Technology Extended), which is a standard size for motherboards, provides a good balance of features and expandability.
It supports Intel Core processors, including 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 sockets.
DDR4 memory support with four DDR4 DIMM slots, supporting up to a certain amount of RAM (usually 128GB or more depending on the specific motherboard model).
It includes PCIe 4.0 x 16 slot(s) for graphics cards and PCIe 3.0 x1 slot(s) for other expansion cards such as sound cards, network cards, or additional USB controllers.
Multiple SATA ports for connecting traditional hard drives and SSDs, as well as M.2 slots for high-speed NVMe SSDs.
Integrated Wi-Fi (hence the "WIFI" designation) for wireless connectivity, as well as Ethernet LAN port(s) for wired networking.
Multiple USB ports, including USB 3.2 Gen 1 and USB 3.2 Gen 2 ports for high-speed data transfer.
Onboard audio solution, often featuring high-quality audio components and support for surround sound formats.
This motherboard includes additional features such as overclocking capabilities, debug LEDs, BIOS flashback buttons, and various software utilities for system management.
Technical Specification
| Specifications | Details |
| Model | PRO B650-S WIFI |
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency:
Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics |
|
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Multi-GPU | AMD MULTI-GPU Support |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |

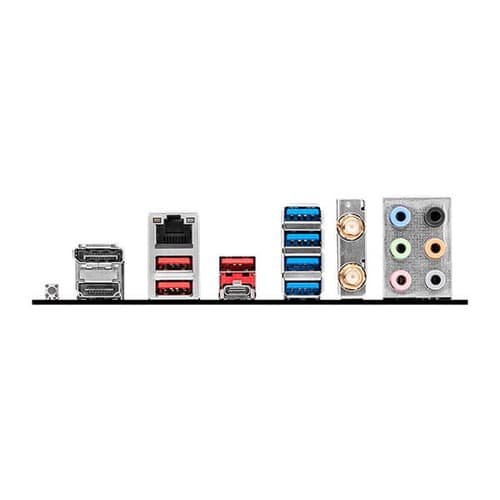

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
| Platform | AMD |
| Shipping Cost |
|
| Shop Location |
