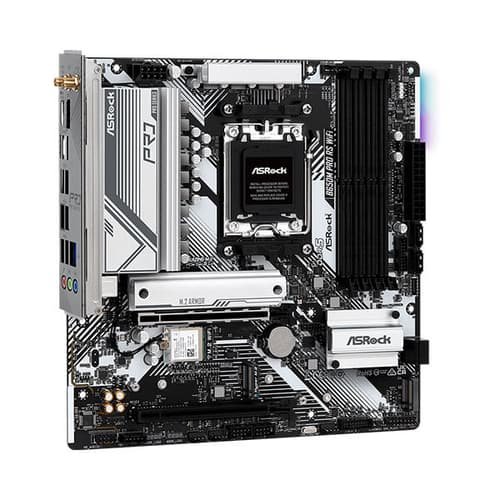

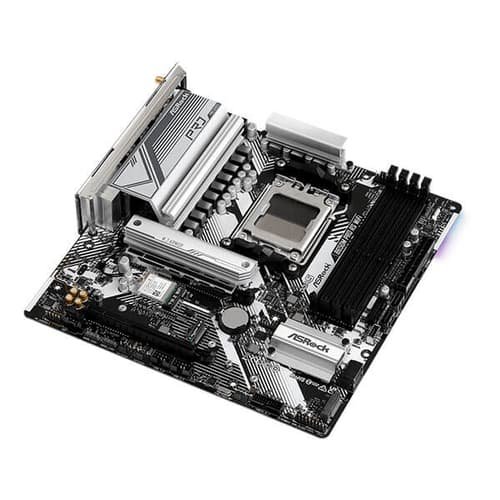

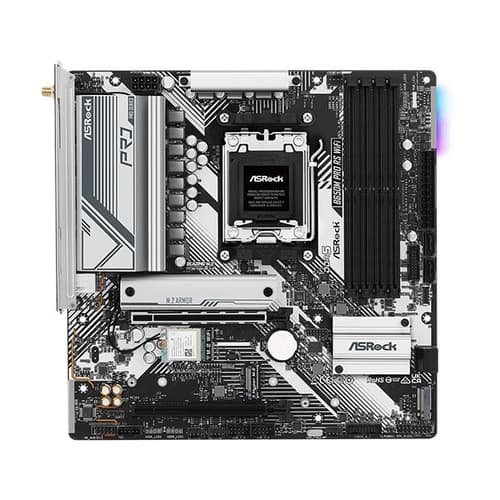

ASRock B650M Pro RS Motherboard Overview
Processor Compatibility and Power Delivery
- AMD Socket AM5 Ryzen™ 7000 Series Processors: Compatible with AMD's latest Socket AM5 Ryzen™ 7000 series processors, ensuring you can utilize the most advanced CPUs available.
- 8+2+1 Power Phase Design with Dr.MOS: Includes an 8-phase power design for CPU cores, 2-phase for integrated graphics, and an additional phase for the system agent. Dr.MOS enhances power efficiency and stability.
Memory Support and Expansion Slots
- DDR5 7200+ MHz (OC) Support: Supports DDR5 memory modules with speeds up to 7200MHz, and higher through overclocking.
- Expansion Slots: One PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and an M.2 Key E slot for Wi-Fi cards.
Graphics and Audio Capabilities
- HDMI and DisplayPort Outputs: Provides HDMI and DisplayPort outputs for high-definition video and audio.
- Realtek ALC897 7.1 Channel HD Audio Codec with Nahimic Audio: Offers 7.1 channel high-definition audio with enhanced sound quality and virtual surround sound.
Storage Options
- Versatile Storage Interfaces: Four SATA3 ports, one Blazing M.2 slot (PCIe Gen5 x4), one Hyper M.2 slot (PCIe Gen4 x4), and one M.2 slot (PCIe Gen4 x2).
Connectivity
- USB Connectivity: One rear USB 3.2 Gen2 Type A+C port, one front USB 3.2 Gen1 Type-C port, and six USB 3.2 Gen1 Type-A ports (two at the rear, four at the front).
- Dragon 2.5G LAN: Equipped with a 2.5 Gigabit Ethernet controller for fast and reliable network connectivity.
Overclocking and Performance Optimization
- DDR5 EXPO & XMP Support: Enables optimized performance and stability at high memory frequencies.
- Blazing OC Tuner: Automatically switches between overclocking mode and Precision Boost Overdrive (PBO) mode based on workload demands.
- AMD PBO Technology: Dynamically increases clock speeds under optimal conditions for enhanced performance.
Thermal Management and Cooling Solutions
- Aluminum Heatsink Design: Efficiently dissipates heat, ensuring system stability and durability during intensive tasks.
- Fan-Tastic Tuning: Allows auto-detection of the minimum duty of each fan and adjustment of the fan curve via a visual UI interface.
- PWM/DC Fan Support: Automatically detects if fans are operating in DC or PWM mode for quieter and more efficient cooling.
Conclusion
The ASRock B650M Pro RS motherboard is a comprehensive solution for building a high-performance PC. With support for the latest AMD processors, advanced power delivery system, extensive memory and storage options, high-speed connectivity, and robust thermal management, it is a reliable and versatile choice for both gaming and professional use. Whether you are an enthusiast looking to push your system to its limits or a professional in need of stability and performance, the ASRock B650M Pro RS delivers on all fronts.
| Model Number | B650M PRO RS |
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 192GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots |
CPU: - Supports AMD CrossFire™ |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |

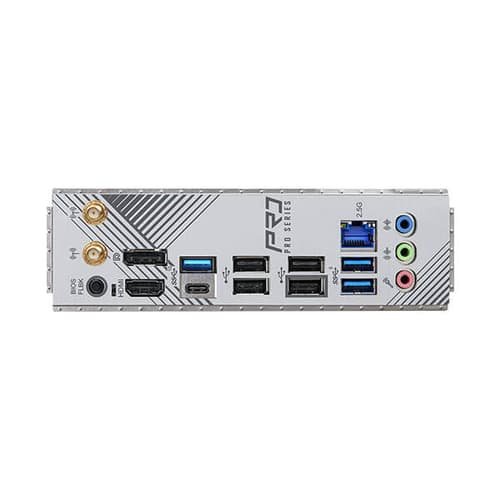

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
