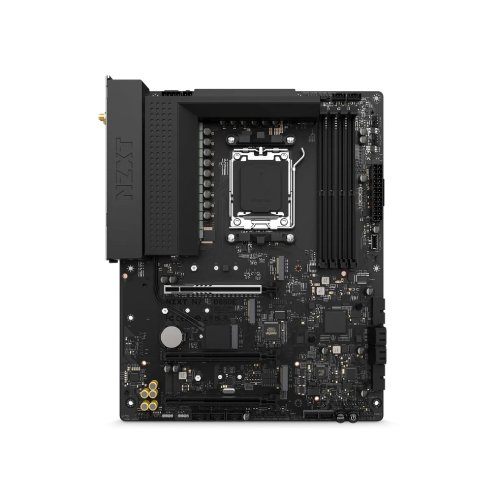

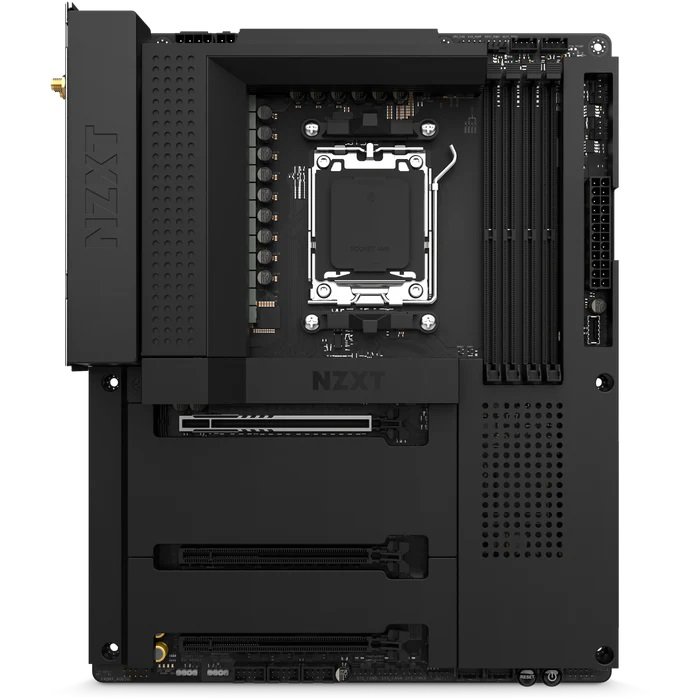

The text describes the features of the NZXT N7 series black motherboard. Here's an explanation of the key points:
Visually Seamless Backdrop: The motherboard is designed to provide a seamless and visually appealing background for any computer build. This means that its appearance complements various components and contributes to an aesthetically pleasing overall look.
AMD B650E Chipset: The motherboard is equipped with the AMD B650E chipset, which is known for its reliability and likely offers a range of features and capabilities suitable for gaming or other high-performance computing tasks.
Seamless Cover with Integrated Heat Spreader: The motherboard has a cover that is seamlessly integrated with a heat spreader. The heat spreader helps dissipate heat generated by the components on the motherboard, contributing to efficient cooling.
Digital RGB Lighting Control through CAM: The motherboard supports digital RGB lighting, and its control can be managed through CAM. CAM is likely a software interface or tool provided by NZXT for controlling various aspects of their hardware, including RGB lighting.
Digital Fan Control: The motherboard features digital fan control, allowing users to set up convenient fan profiles. This includes seven independent fan channels, providing flexibility in managing the cooling system for different components.

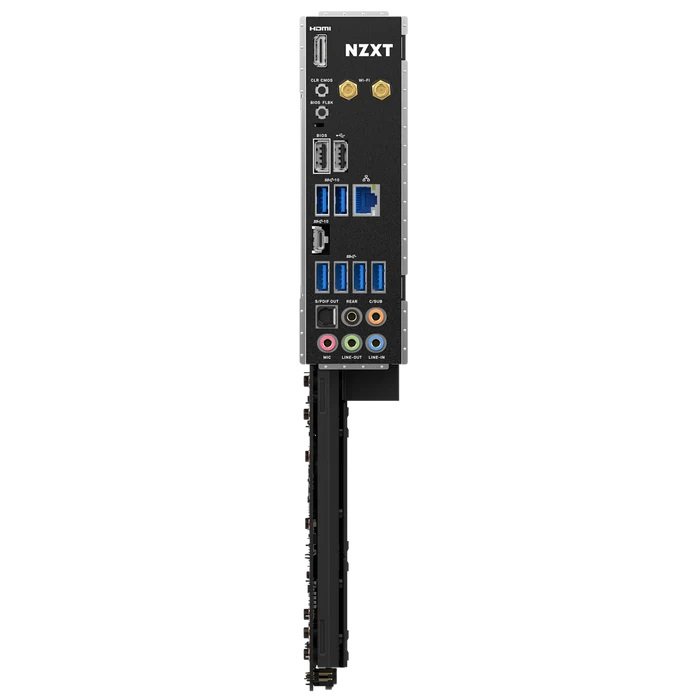

Integrated Rear I/O Shield and Efficient Layout: The motherboard comes with an integrated rear I/O shield, which simplifies the installation process and enhances the overall build quality. An efficient layout suggests that the components on the motherboard are strategically placed for optimal performance and cable management.
16+2+1 Power Phase Design with 90A Smart Power Stage (SPS): This specification refers to the power delivery system of the motherboard. A 16+2+1 power phase design, along with 90A Smart Power Stages, suggests a robust and efficient power delivery system. This is important for providing stable power to the components, especially for overclocking or demanding tasks.
| Category | Details |
|---|---|
| CPU | AMD Socket AM5 Ryzen™ 7000 Series Processors: Supported |
| CHIPSET | AMD: B650E |
| MEMORY | DIMM Slots: 4, DDR5 only |
| Max Memory Support: 128GB | |
| Memory Architecture: Dual-Channel | |
| OC Frequency: DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC) | |
| Extreme Memory Profile (XMP): Supported | |
| Extended Profiles for Overclocking (EXPO): Supported | |
| EXPANSION SLOTS | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode: 2 (Supports NVMe SSD as boot disks) | |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module: 1 | |
| INTEGRATED GRAPHICS | Integrated AMD RDNA™ 2 graphics: Supported |
| HDMI 2.1 TMD Compatible: 1 | |
| HDR: Supported | |
| HDCP 2.3: max. resolution up to 4K 60Hz | |
| STORAGE | M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode): 1 |
| M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1 | |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): 1 | |
| SATA 6Gb/s ports: 4 | |
| RAID 0/1/10 for SATA storage devices: Supported | |
| RAID 0/1/10 for M.2 NVMe storage devices: Supported | |
| NVMe SSD as boot disks: Supported | |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS | 802.11ax Wi-Fi 6E Module: Supported |
| Bluetooth: V5.2 | |
| AUDIO | Realtek® ALC1220 Codec |
| REAR I/O | Wireless antenna SMA connectors: 2 |
| HDMI™ port: 1 | |
| USB 2.0: 2 | |
| USB 3.2 Gen 2 Type-C port: 1 | |
| USB 3.2 Gen 2 ports: 2 | |
| USB 3.2 Gen 1 ports: 4 | |
| Clear CMOS button: 1 | |
| BIOS Flashback button: 1 | |
| LAN (RJ45) port: 1 | |
| Audio jacks: 5 | |
| Optical S/PDIF Out port: 1 | |
| INTERNAL I/O | 24-pin ATX power connector: 1 |
| 8+4-pin ATX 12V power connector: 1 | |
| 4-pin CPU_FAN connector: 1 | |
| 4-pin AIO_PUMP connector: 1 | |
| 4-pin SYS_FAN connectors: 5 | |
| NZXT RGB LED connectors: 4 | |
| 5V ARGB LED connector: 2 | |
| USB 2.0 header (Up to 6 USB 2.0 ports): 3 | |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): 2 | |
| USB 3.2 Gen2x2 front panel header (For USB Type-C): 1 | |
| Front panel audio connector: 1 | |
| Power button: 1 | |
| Reset button: 1 | |
| POST LEDs: 4 | |
| GENERAL | System Requirements: NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor: ATX | |
| Warranty: 3 years | |
| Certifications: FCC, CE, WHQL, ErP/EuP Ready | |
| Model Number: N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) | |
| UPC: 810074842877 (White) / 810074842884 (Black) | |
| EAN: 5056547202815 (White) / 5056547202822 (Black) |
Motherboard
| Brand | NZXT |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
