Key Features

Processor Compatibility

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors: Engineered to fully accommodate AMD's latest Socket AM5 platform, specifically optimized for Ryzen 7000 Series processors. This compatibility ensures users can harness the full potential of AMD's latest CPU architecture, delivering unmatched processing power and efficiency. Whether for intense gaming sessions, creative content production, or demanding professional workloads, this motherboard ensures robust performance and reliability.

Power Delivery System

6+2+1 Power Phase Design with Dr.MOS: The motherboard employs a meticulously crafted 6+2+1 power phase design utilizing Dr.MOS technology. This setup dedicates six phases to CPU cores, two phases to integrated graphics, and an additional phase for the system agent. This advanced configuration ensures consistent and efficient power delivery, crucial for maintaining peak performance under heavy computational loads and during overclocking endeavors. Users can expect a stable computing experience with enhanced longevity and reliability.

Memory Support

Supports DDR5 Memory at 7200+ MHz (OC): Embracing the latest in memory technology, the ASRock B650M PG Lightning WiFi facilitates impressive DDR5 memory speeds exceeding 7200 MHz through overclocking. This capability not only boosts data transfer rates but also enhances system responsiveness and multitasking efficiency. DDR5 support translates into faster application loading times and smoother overall system performance, catering to users who demand uncompromising speed and reliability in their computing environment.

Expansion Slots

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi: Offering versatile expansion capabilities, the motherboard features a PCIe 4.0 x16 slot dedicated to high-bandwidth graphics cards, ensuring superior visual performance for gaming and professional graphics applications. Additionally, it includes a PCIe 3.0 x16 slot for other expansion cards and an M.2 Key-E slot specifically designed for WiFi modules, providing flexible connectivity solutions to accommodate diverse user needs.

Graphics Output

HDMI and DisplayPort: To cater to various display requirements, the motherboard supports HDMI and DisplayPort outputs. These ports deliver high-definition video and audio signals, ensuring impeccable visual output quality. Whether engaging in immersive gaming experiences, multimedia consumption, or professional-grade visual tasks, users can rely on crisp and clear display performance.

Audio Capabilities

Realtek ALC897 7.1 Channel HD Audio Codec with Nahimic Audio: The audio experience is enriched by the Realtek ALC897 codec, delivering pristine 7.1 channel high-definition audio. Enhanced by Nahimic Audio technology, users can enjoy immersive soundscapes with virtual surround effects. This sophisticated audio setup is ideal for immersive gaming sessions, multimedia content creation, and professional audio editing, ensuring every sound detail is faithfully reproduced.

Storage Options

1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2), 4 SATA3 Ports: Catering to diverse storage needs, the motherboard offers a comprehensive array of storage options. It includes a Blazing M.2 slot supporting PCIe Gen5 x4 interface for lightning-fast data transfers, suitable for high-performance NVMe SSDs. Additionally, there's a Hyper M.2 slot with PCIe Gen4 x4 interface, another M.2 slot supporting PCIe Gen4 x2 interface, and four SATA3 ports for conventional SATA hard drives and SSDs. This versatility ensures ample storage capacity and flexibility to accommodate various storage configurations.

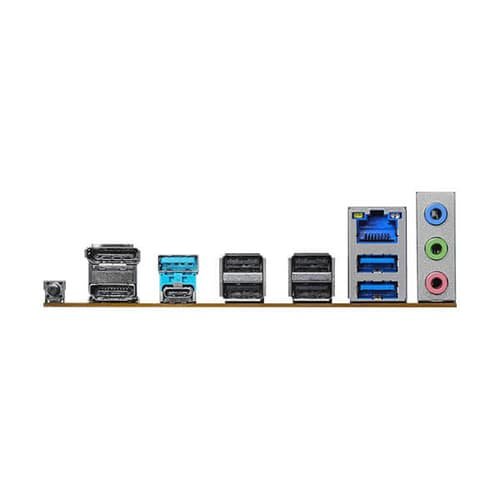

USB Connectivity

1 USB 3.2 Gen2 Type-A+C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front): Equipped with a diverse range of USB ports, the motherboard ensures extensive connectivity options for connecting a wide array of peripherals. This includes a rear USB 3.2 Gen2 Type-A and Type-C combo port, a front USB 3.2 Gen1 Type-C port, and six USB 3.2 Gen1 Type-A ports (two at the rear and four at the front). These ports facilitate rapid data transfers and support seamless integration with external devices, enhancing overall system functionality.

Networking

Phantom Gaming 2.5G LAN, 802.11ax WiFi 6E + Bluetooth: Addressing networking needs, the B650M PG Lightning WiFi features a Phantom Gaming 2.5G LAN port for reliable wired internet connectivity at high speeds. It also supports the latest 802.11ax WiFi 6E standard, delivering ultra-fast wireless connections with reduced latency for smooth online gaming and multimedia streaming experiences. Bluetooth support further enhances connectivity options, enabling seamless pairing with Bluetooth-enabled devices and peripherals.

Additional Features

Supports ASRock Auto Driver Installer, BIOS Flashback: Enhancing user convenience, the motherboard includes features such as ASRock Auto Driver Installer, simplifying the installation of essential drivers for seamless system setup. The BIOS Flashback feature allows users to effortlessly update the BIOS firmware, ensuring the system remains current with the latest enhancements and optimizations.
