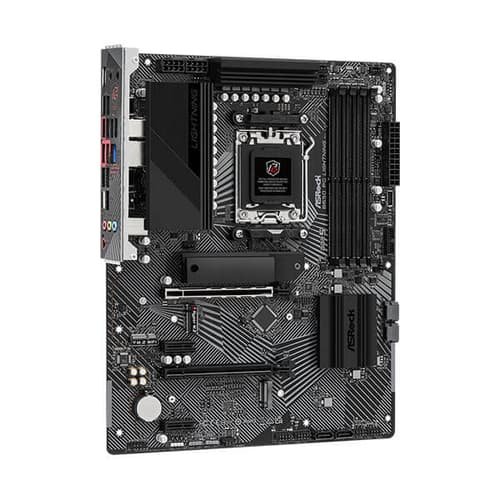

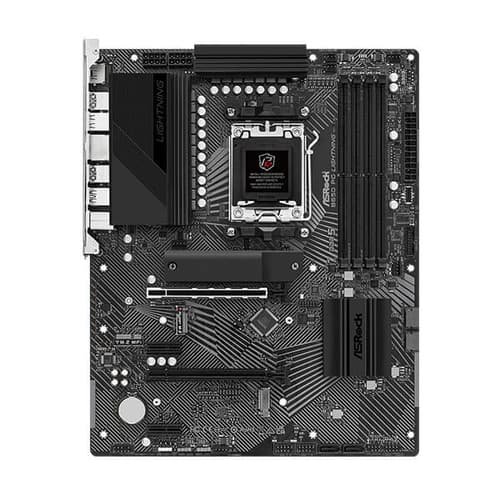

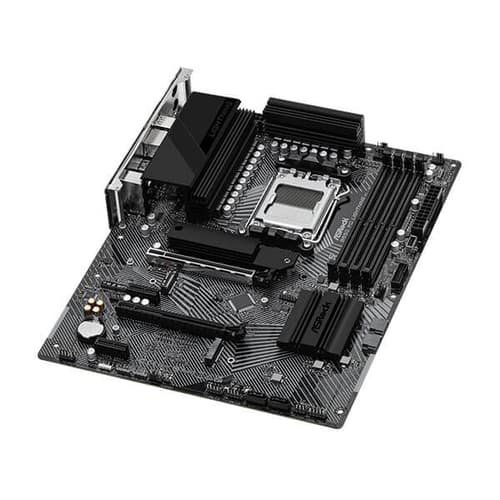

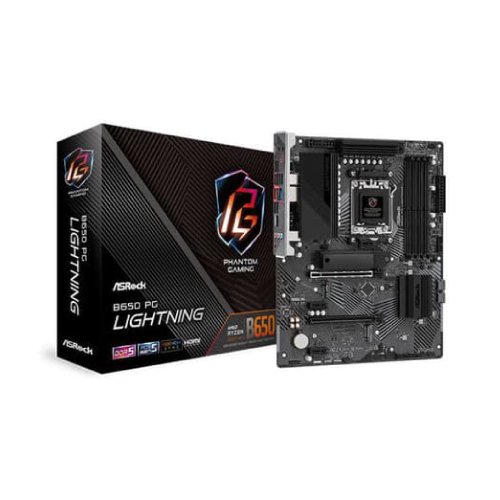

B650 PG Lightning: This is the model of the motherboard.
Supports AMD Ryzen™ 7000 Series Processors: This indicates compatibility with AMD's Ryzen™ 7000 series processors.
14+2+1 Phase Power Design, SPS: This refers to the power delivery system for the CPU. It features a 14-phase power design for the CPU cores, a 2-phase power design for the integrated graphics, and an additional phase for the system agent (SPS - System Power Stage). This design ensures stable and efficient power delivery to the processor.
4 x DDR5 DIMMs, supports up to 6400+(OC): This indicates that the motherboard has four DIMM slots for DDR5 RAM modules. It supports DDR5 memory with a maximum frequency of 6400MHz, and it can support even higher frequencies through overclocking (OC).
1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi: These are expansion slots for adding additional components such as graphics cards, network cards, or storage devices. It includes two PCIe 4.0 x16 slots for high-speed graphics cards, two PCIe 4.0 x1 slots for smaller expansion cards, and one M.2 Key-E slot specifically designed for Wi-Fi cards.
Graphics Output Options: 1 HDMI: This indicates the types of ports available for connecting displays to the motherboard. HDMI is a common type of video output port, providing high-definition video and audio signals.
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio: This refers to the audio capabilities of the motherboard. It supports 7.1 channel high-definition audio, powered by the Realtek ALC897 audio codec. Additionally, it features Nahimic Audio, which is audio enhancement software designed to improve sound quality and provide virtual surround sound.
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3: These are storage options available on the motherboard. It has one M.2 slot supporting PCIe Gen5 x4 interface, one Hyper M.2 slot supporting PCIe Gen4 x4 interface, one M.2 slot supporting PCIe Gen4 x2 interface, and four SATA3 ports for connecting traditional SATA hard drives or SSDs.
1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front): These are the USB ports available on the motherboard. It features one rear USB 3.2 Gen2x2 Type-C port, one front USB 3.2 Gen2 Type-C port, nine USB 3.2 Gen1 ports (seven at the rear and two at the front), and eight USB 2.0 ports (four at the rear and four at the front).
Realtek 2.5G LAN: This indicates the network interface controller (NIC) used for Ethernet connectivity, supporting 2.5 Gigabit Ethernet speeds, provided by Realtek.
Specification
| Unique Feature |
Superb Productivity -
Rock-Solid Durability -
Ultrafast Connectivity
|
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio |
|
| LAN |
|
| Slots |
CPU: -
Chipset:
|
| Storage |
CPU: -
Chipset: -
|
| RAID |
|
| USB |
|
| Connector |
|
| Rear Panel I/O |
|
| Software and UEFI |
Software -
UEFI -
|
| Accessories |
|
| Form Factor |
|
| OS |
|
| Certifications |
|
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
| Platform | AMD |
| Shipping Cost |
|
| Shop Location |
