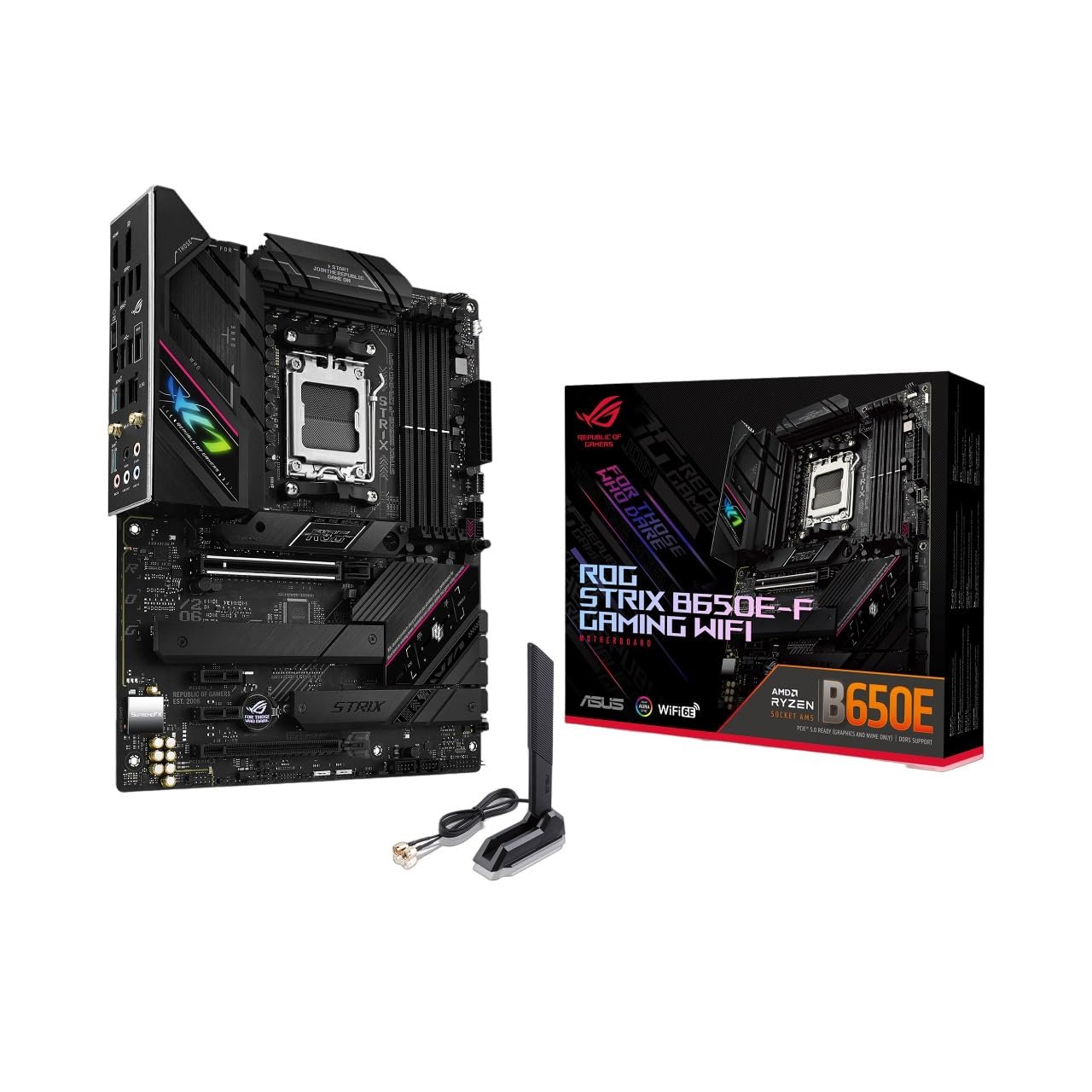

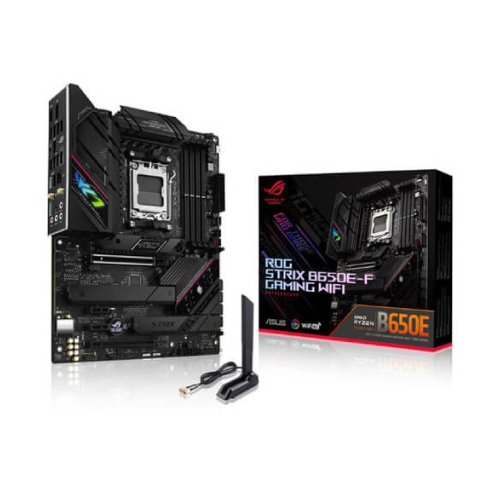

Experience Next-Gen Gaming with ROG Strix B650E-F Gaming WiFi II
AMD Socket AM5 Compatibility
The ROG Strix B650E-F Gaming WiFi II is built to leverage the capabilities of AMD’s latest technology. With support for DDR5 memory, it delivers faster data transfer rates and overall enhanced performance. The inclusion of PCIe 5.0 provides increased bandwidth for next-gen GPUs and storage devices. AMD EXPO technology enables users to unlock the full potential of their DDR5 memory. Additionally, the AM5 socket and AMD Ryzen 7000 Series processors are unlocked for overclocking, allowing users to fine-tune their systems for peak performance.
PCIe® Slot Q-Release
This feature simplifies GPU upgrades and device changes with a single press of a button, which releases the security latch of the first PCIe slot, making it easy to remove and replace PCIe cards without additional tools.
M.2 Q-Latch Technology
The M.2 Q-Latch design makes SSD installation and removal straightforward. This mechanism secures M.2 SSDs without the need for traditional screws, reducing the risk of damage and streamlining maintenance and upgrades.
BIOS Flashback
The BIOS FlashBack™ feature offers a secure and convenient way to update the BIOS. Users simply place the UEFI BIOS file onto a FAT32-formatted USB stick, insert it into the designated USB BIOS FlashBack port, and press the button, even without a CPU or memory installed.
Q-LED Diagnostic System
The Q-LED diagnostic system includes four onboard LEDs that provide real-time feedback on the status of key components such as the CPU, memory, graphics card, and boot device. This feature helps users quickly identify and troubleshoot issues, ensuring that any problems can be addressed promptly and efficiently.

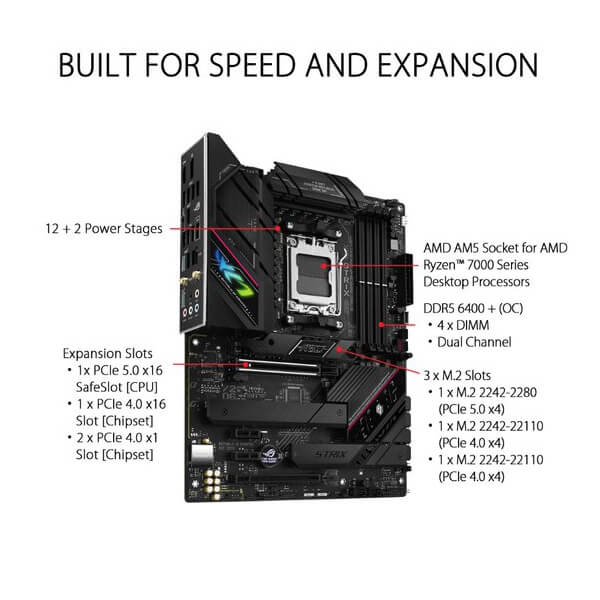

PCIe 5.0 Support
The motherboard features PCIe 5.0 for increased data transfer speeds and bandwidth. The PCIe 5.0 x16 slot, designed with SafeSlot technology, ensures durability to handle the increased size and weight of next-gen GPUs. The motherboard also includes two PCIe 4.0 M.2 slots, each with robust heatsinks to prevent thermal throttling and maintain high-speed performance.
Advanced Overclocking Features
Equipped with AMD Precision Boost Overdrive (PBO), the motherboard dynamically increases CPU performance by maximizing available power and thermal headroom. The ROG Strix B650E-F Gaming WiFi II has a robust power delivery system with 12 + 2 power stages, alloy chokes, and durable capacitors, ensuring stable power delivery under extreme conditions. The eight-layer PCB design helps dissipate heat more effectively, providing additional overclocking headroom and enhancing system stability.
DDR5 Performance
Supporting high-performance DDR5 memory kits, the motherboard allows users to achieve unprecedented speeds and performance levels. With AMD EXtended Profiles for Overclocking (EXPO), users can take advantage of pre-optimized memory settings for higher frequencies and tighter timings. ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and applies optimized profiles, ensuring users get the most out of their DDR5 memory.

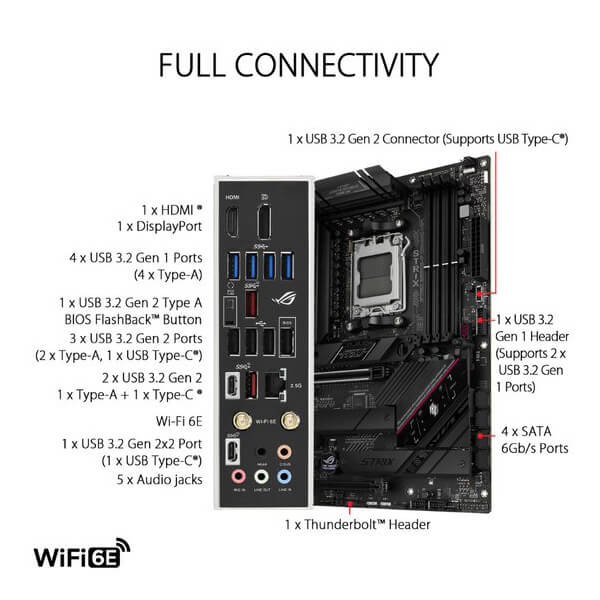

Next-Gen Connectivity
Enjoy ultra-fast data transfers and low-latency networking with the latest connectivity options. Onboard WiFi 6E technology leverages the 6 GHz band for faster and more reliable wireless connections, even in crowded environments. Additionally, the Intel® 2.5 Gbps Ethernet port ensures a stable and speedy wired connection, ideal for online gaming, high-resolution video streaming, and rapid file transfers.
SupremeFX Audio Excellence
Experience exceptional audio quality with ROG SupremeFX technology. The integrated ALC4080 codec supports high-resolution audio playback up to 32-bit/384 kHz, ensuring clear sound across all channels. The front-panel output, enhanced by an integrated Savitech amplifier, delivers high-fidelity audio to a wide range of speakers and headsets, enhancing gaming and multimedia experiences.
| Specification | Details |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
| Graphics |
|
| Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors
|
AMD B650 Chipset
|
|
| PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2 | |
Storage
|
|
