8+2+1 Power Phase, Dr.MOS: This refers to the power delivery system for the CPU. It features an 8-phase power design for the CPU cores, a 2-phase power design for the integrated graphics, and an additional phase for the system agent. The Dr.MOS (Driver and MOSFETs) integration enhances power efficiency and stability.
Supports DDR5 7200+ MHz (OC): This indicates that the motherboard supports DDR5 RAM modules with a maximum frequency of 7200MHz, and it can support even higher frequencies through overclocking (OC).
2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi: These are expansion slots for adding additional components such as graphics cards, network cards, or storage devices. It includes two PCIe 4.0 x16 slots for high-speed graphics cards, one PCIe 4.0 x1 slot for smaller expansion cards, and one M.2 Key E slot specifically designed for Wi-Fi cards.
Integrated AMD RDNA™ 2 Graphics: This indicates that the motherboard has integrated graphics based on AMD's RDNA™ 2 architecture.
Graphics Output Options: HDMI, DisplayPort: These are the types of ports available for connecting displays to the motherboard. HDMI and DisplayPort are common types of video output ports, providing high-definition video and audio signals.
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio: This refers to the audio capabilities of the motherboard. It supports 7.1 channel high-definition audio, powered by the Realtek ALC897 audio codec. Additionally, it features Nahimic Audio, which is audio enhancement software designed to improve sound quality and provide virtual surround sound.
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4): These are storage options available on the motherboard. It has four SATA3 ports for connecting traditional SATA hard drives or SSDs, one M.2 slot supporting PCIe Gen5 x4 interface (Blazing M.2), and one M.2 slot supporting PCIe Gen4 x4 interface (Hyper M.2).
1 USB 3.2 Gen2 Front Type-C, 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front): These are the USB ports available on the motherboard. It features one front USB 3.2 Gen2 Type-C port, seven USB 3.2 Gen1 ports (two at the rear, one rear Type-C, and four at the front).
Dragon 2.5G LAN: This indicates the network interface controller (NIC) used for Ethernet connectivity, supporting 2.5 Gigabit Ethernet speeds, branded as "Dragon."
Supports ASRock Auto Driver Installer, BIOS Flashback: These are features provided by ASRock to simplify driver installation and BIOS updating processes.
Pre-Installed I/O Shield: The motherboard comes with a pre-installed I/O shield, making installation easier and protecting the ports on the rear panel.
Specification:

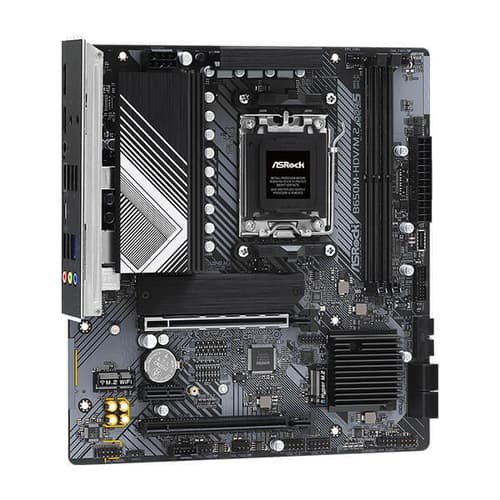

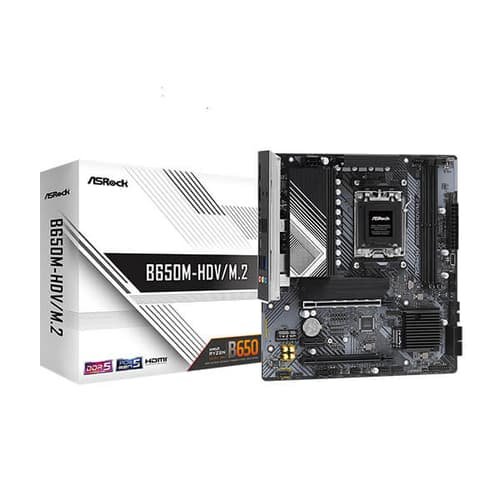

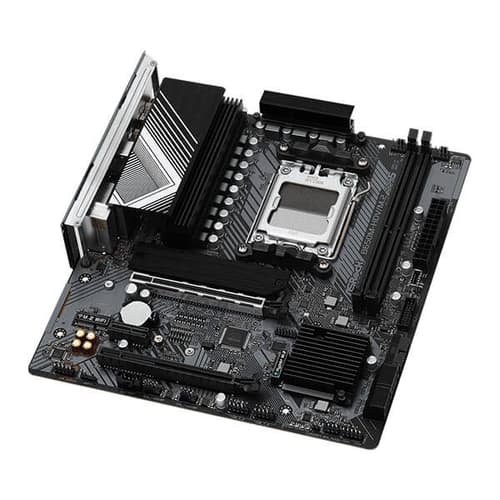

| Model | B650M-HDV/M.2 |
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Gaming - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 96GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots |
CPU: Chipset: - Supports AMD CrossFire™ |
| Storage |
CPU: Chipset: |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2 Type-C (Front) - 1 x USB 3.2 Gen1 Type-C (Rear) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header |

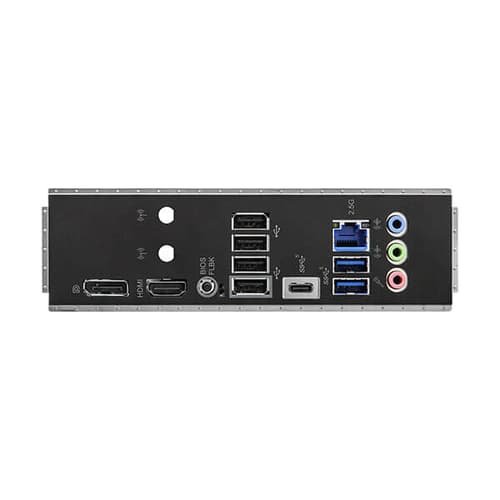

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
