The B650 GAMING X AX motherboard offers several key features designed to enhance performance, connectivity, and convenience for users:
AMD Socket AM5: This motherboard supports AMD Ryzen™ 7000 Series Processors, providing users with the latest generation of AMD CPU compatibility.
Unparalleled Performance: The motherboard employs a direct 8+2+1 phases digital VRM (Voltage Regulator Module) solution, ensuring stable power delivery to the CPU for optimized performance.
Dual Channel DDR5: Equipped with 4 SMD DIMMs (Dual In-Line Memory Modules), the motherboard supports DDR5 memory technology. It also features support for AMD EXPO™ and Intel® XMP memory modules, allowing for easy overclocking and enhanced memory performance.
SuperSpeed Storage: The motherboard features three PCIe 4.0 x4 M.2 connectors, providing high-speed storage options for solid-state drives (SSDs) and other compatible devices.
Advanced Thermal Design & M.2 Thermal Guard: To maintain stable power delivery and prevent overheating, the motherboard incorporates advanced thermal design features, including M.2 Thermal Guard technology for optimal performance of M.2 SSDs.
PCIe x16 EZ-Latch with Quick Release & Screwless Design: This feature simplifies the installation and removal of PCIe x16 expansion cards, providing users with a hassle-free experience when upgrading their system.
Fast Networks: The motherboard includes 2.5GbE LAN (Gigabit Ethernet) and Wi-Fi 6E 802.11ax connectivity options, offering fast and reliable network connections for gaming, streaming, and other online activities.

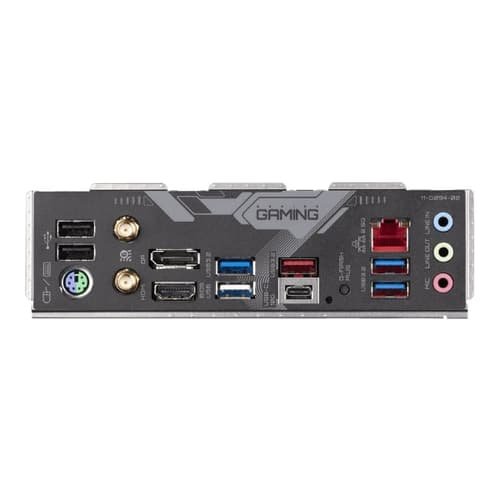

Extended Connectivity: With support for DisplayPort, HDMI, Rear USB-C® 10Gb/s, and Front USB-C® 20Gb/s, the motherboard provides users with a wide range of connectivity options for monitors, peripherals, and high-speed data transfer.
Smart Fan 6: This feature incorporates multiple temperature sensors and hybrid fan headers with FAN STOP functionality, allowing for customizable and efficient cooling performance to maintain system stability.
Q-Flash Plus: With Q-Flash Plus, users can update the motherboard BIOS without the need to install the CPU, memory, or graphics card, simplifying the BIOS update process and ensuring compatibility with the latest hardware and software.
| Specification | Details |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory |
|
| Onboard Graphics |
|
| Audio |
|
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
|
| Expansion Slots |
|
| Storage Interface |
|
| USB |
|
| Internal I/O Connectors |
|
| Back Panel Connectors |
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
|
| BIOS |
|
| Unique Features |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Bundled Software |
|
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | GIGABYTE |
| Stock Status | IN STOCK |
| Chipset | B650 |
| Memory Type | DDR5 |
| Socket Support | AM5 |
| Form Factor | ATX |
| Platform | AMD |
| Shipping Cost |
|
| Shop Location |
