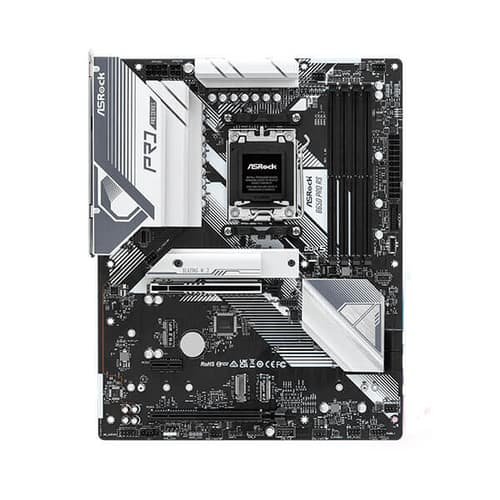

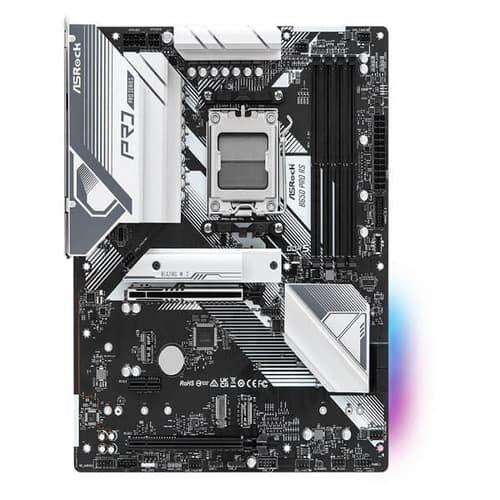

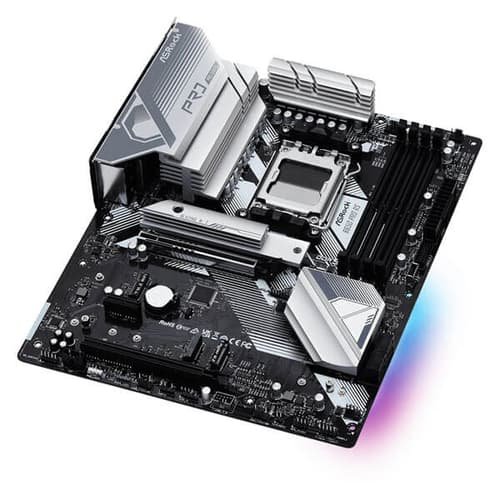

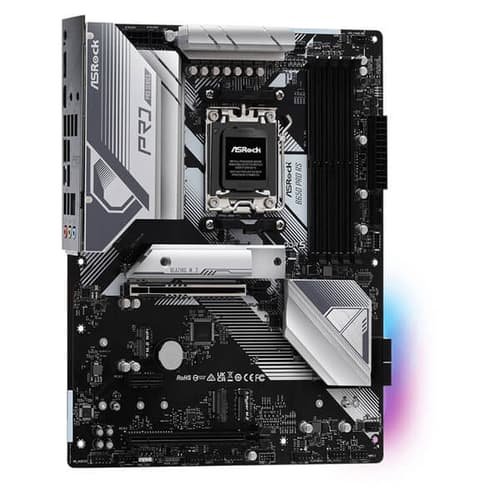

ASRock B650 Pro RS Motherboard

The ASRock B650 Pro RS motherboard is designed to deliver exceptional performance and versatile functionality for gamers, content creators, and PC enthusiasts. Below are its key features and specifications:

Processor Compatibility

Supports AMD Ryzen™ 7000 Series Processors: This motherboard is built to support the forthcoming AMD Ryzen™ 7000 series processors, ensuring seamless compatibility with the latest CPU architecture. This enables users to leverage cutting-edge performance and advanced features for diverse computing tasks, from gaming to content creation.

Power Delivery System

16+2+1 Phase Power Design with SPS: The motherboard's power delivery system is meticulously engineered with a 16-phase power design dedicated to the CPU cores, a 2-phase design for the integrated graphics, and an additional phase for the system agent, known as the System Power Stage (SPS). This multi-phase configuration ensures that the processor receives stable and efficient power, which is crucial for maintaining optimal performance, especially during intensive workloads and overclocking scenarios.

Memory Support

4 x DDR5 DIMM Slots, Supports up to 6400MHz (OC): The motherboard includes four DIMM slots for DDR5 RAM modules, supporting memory frequencies up to 6400MHz. This allows for superior data throughput and system responsiveness. Additionally, the capability to overclock (OC) means users can push memory frequencies even higher, significantly enhancing multitasking and system performance.

Expansion Slots

1 PCIe 5.0 x16, 1 PCIe 3.0 x16: The motherboard provides versatile expansion options with one PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot. The PCIe 5.0 x16 slot supports the latest high-speed graphics cards, delivering unparalleled bandwidth for demanding applications. The PCIe 3.0 x16 slot offers compatibility for a wide range of expansion cards, enabling users to customize their systems with additional components such as network or storage cards.

Graphics Output

1 HDMI, 1 DisplayPort: For video output, the motherboard includes both HDMI and DisplayPort connectors. These ports support high-definition video and audio signals, providing flexibility and superior quality for connecting modern displays. This makes it ideal for a variety of uses, from gaming to professional media creation.

Audio Capabilities

7.1 Channel HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio: The motherboard features advanced audio capabilities with the Realtek ALC897 audio codec, supporting 7.1 channel high-definition audio. This ensures rich, immersive sound quality. Additionally, Nahimic Audio software enhances the audio experience further by providing virtual surround sound and advanced audio effects, perfect for gamers and multimedia enthusiasts.

Storage Options

1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 2 SATA3: For storage, the motherboard offers a variety of options. It includes a Blazing M.2 slot with a PCIe Gen5 x4 interface for ultra-fast data transfer, ideal for the latest NVMe SSDs. There are also two Hyper M.2 slots with PCIe Gen4 x4 interfaces, providing high-speed storage solutions. Additionally, two SATA3 ports are available for connecting traditional SATA hard drives or SSDs, ensuring ample storage capacity and versatility.

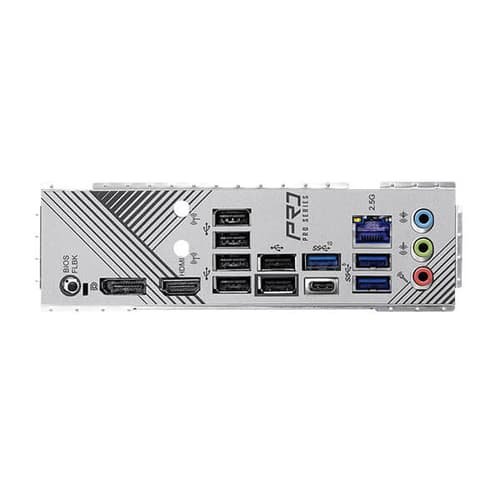

USB Connectivity

1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front): The motherboard features extensive USB connectivity options. It includes a front USB 3.2 Gen2x2 Type-C port for rapid data transfer, a rear USB 3.2 Gen2 Type-C port, a rear USB 3.2 Gen2 Type-A port, and eight USB 3.2 Gen1 ports (four at the rear and four at the front). Additionally, there are six USB 2.0 ports (two at the rear and four at the front), providing ample connectivity for a wide range of peripherals and devices.

Networking

Realtek 2.5G LAN: The network interface controller on this motherboard is the Realtek 2.5G LAN, which supports Ethernet speeds up to 2.5 Gigabits per second. This ensures fast and reliable network connectivity, essential for online gaming, streaming, and large file transfers.

Wireless Connectivity

802.11ax Wi-Fi 6E + Bluetooth: The motherboard supports Wi-Fi 6E, the latest Wi-Fi standard, offering higher speeds, lower latency, and improved overall network performance. Additionally, integrated Bluetooth connectivity ensures seamless connection with a wide range of Bluetooth-enabled devices, enhancing the system's wireless capabilities.

Conclusion

The ASRock B650 Pro RS motherboard combines advanced power efficiency, comprehensive connectivity options, and support for the latest components, making it an excellent choice for users who demand high performance and reliability from their PC builds. Whether you are a gamer, a content creator, or a professional, this motherboard offers the features and capabilities to meet your needs.
