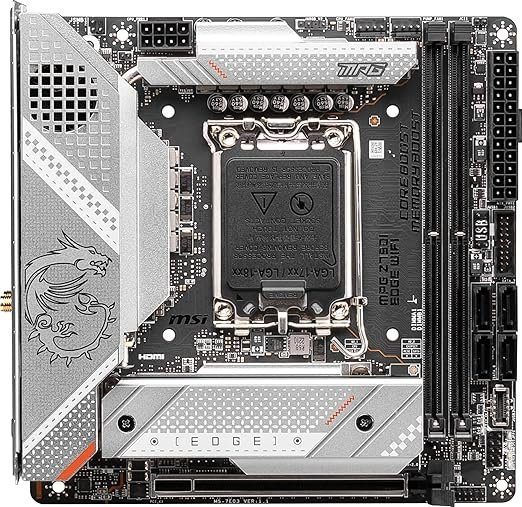

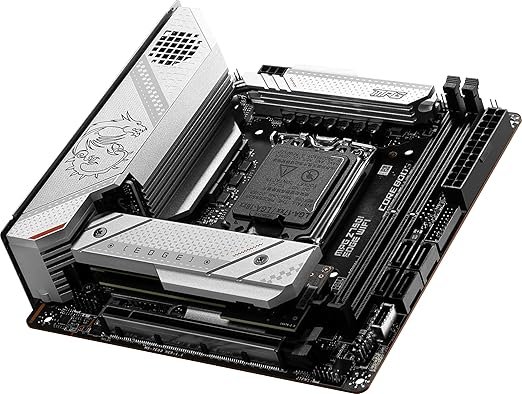

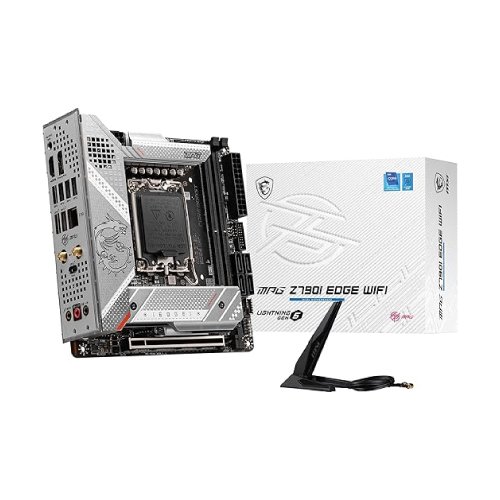

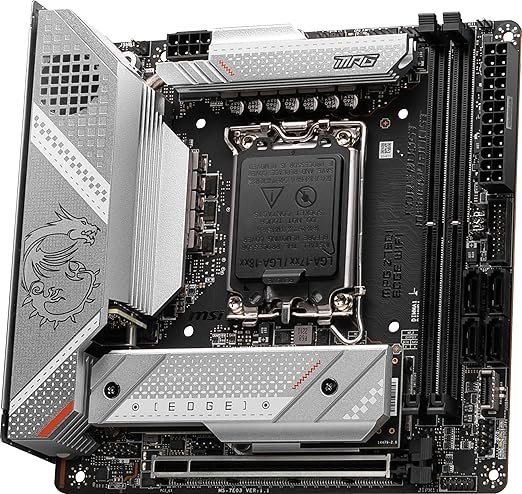

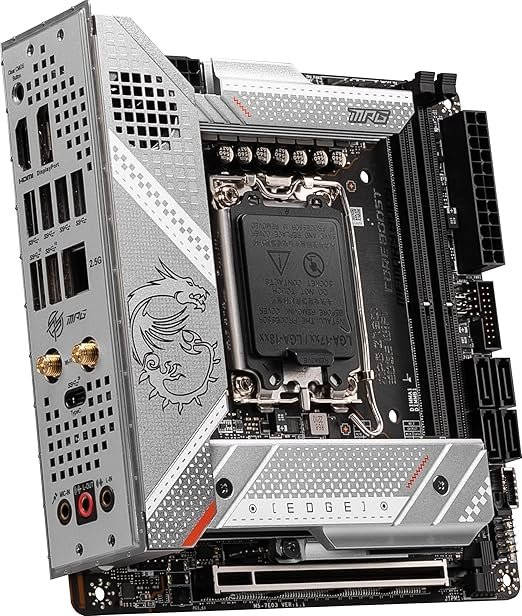

The MSI MPG Z790I Edge WIFI is a motherboard designed for Intel's 12th generation Alder Lake processors and uses the Z790 chipset. As part of MSI's MPG (MSI Performance Gaming) series, it's geared towards gamers and enthusiasts who seek high performance and reliability. Here are some key features you can typically expect from this motherboard:
The 'I' in the name means that it's a Mini-ITX motherboard, which means it's compact and suitable for small form factor builds.
It features the Intel Z790 chipset, which is tailored for high-end gaming and overclocking capabilities.
The motherboard likely supports Intel's LGA 1700 socket, which is specific to 12th-generation Alder Lake processors.
DDR5 RAM support is expected, as Alder Lake CPUs primarily use DDR5 memory, though there might be some models that support DDR4 as well.
Typically, Mini-ITX motherboards have limited expansion options due to their compact size. Expect one or two PCIe slots for graphics cards and other expansion cards.
As suggested by the name, it features built-in Wi-Fi support, along with other connectivity options like Bluetooth and Ethernet.
Multiple M.2 slots for NVMe SSDs are common in high-end motherboards like the MPG Z790I Edge WIFI, providing fast storage options.
Expect high-quality onboard audio and LAN networking, which are crucial for gaming and multimedia applications.
Many gaming-oriented motherboards come with customizable RGB lighting and stylish designs to enhance the aesthetics of the build.
The BIOS is likely user-friendly and offers advanced overclocking options for enthusiasts to tweak performance settings.
Technical Specification
| Specifications | Details |
| Model | MPG Z790I EDGE WIFI |
| Chipset | INTEL Z790 |
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 64GB Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:
Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
| Slot | 1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Storage | 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| USB |
|
| LAN | Intel® 2.5Gbps LAN |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) |
| LED Features | 4x EZ Debug LED |
| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | Mini-ITX 170mmx170mm |
| Warranty | 3 Years |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | Z790 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | MINI-ITX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
No reviews found!
No comments found for this product. Be the first to comment!
