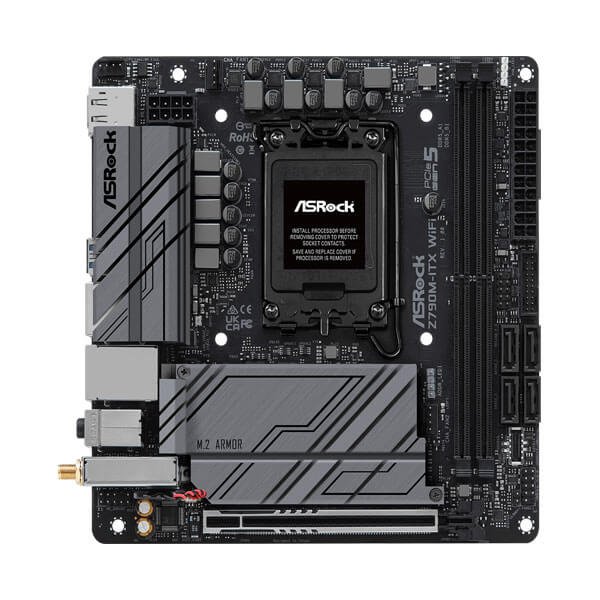

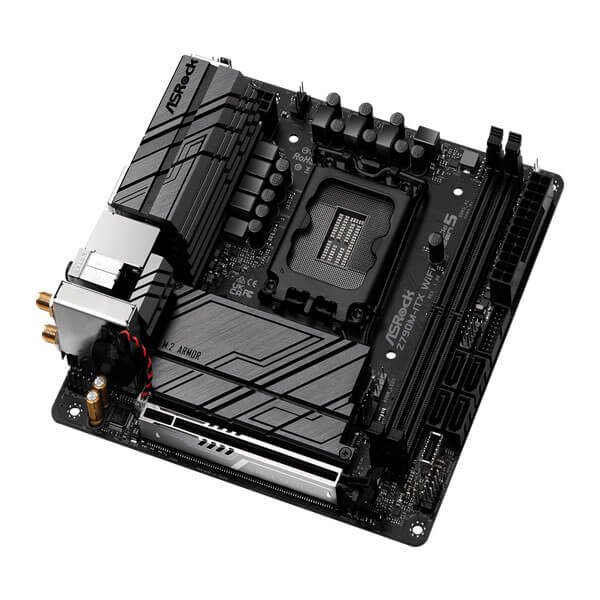

ASRock Z790M ITX DDR5 WiFi Motherboard
The ASRock Z790M ITX DDR5 WiFi motherboard is engineered for compact ITX systems, delivering high performance and advanced connectivity options to support the latest Intel Core processors. Here’s an in-depth look at its key features and specifications:
Processor Support
- Compatible with 14th, 13th, and 12th Gen Intel Core processors, ensuring a wide range of CPU options for diverse computing needs.
Power Design
- Features a robust 7+1+1 Phase Power Design with Dr.MOS for VCore+GT, providing stable power delivery for overclocking and resource-intensive applications.
Memory Support
- Equipped with 2 DDR5 DIMM slots supporting memory speeds up to 7000+ MHz (OC). This high-speed memory performance enhances overall system responsiveness and efficiency.
Expansion Slots
- Includes 1 PCIe 5.0 x16 slot, offering high-bandwidth connectivity for graphics cards and other PCIe devices, ensuring top-tier performance for gaming and professional applications.
Graphics Output Options
- Offers versatile display connectivity with 1 HDMI port, 1 DisplayPort, and eDP, catering to various monitor and display setups.
Audio
- Supports 7.1 Channel HD Audio with Realtek ALC897 Audio Codec and Nahimic Audio, delivering rich, high-quality sound for an immersive gaming and multimedia experience.
Storage
- Features 1 Hyper M.2 slot (PCIe Gen4x4) and 1 Hyper M.2 slot (PCIe Gen4x4 & SATA3), providing high-speed storage connectivity for SSDs. Additionally, it includes 4 SATA3 ports for traditional storage drives.
USB Connectivity
- Offers a comprehensive range of USB ports:
- Front: 1 USB 3.2 Gen2x2 Type-C port, 2 USB 3.2 Gen1 ports, 2 USB 2.0 ports
- Rear: 1 USB 3.2 Gen2x2 Type-C port, 4 USB 3.2 Gen2 Type-A ports, 1 USB 2.0 port
Networking
- Equipped with Intel 2.5G LAN and Intel 1G LAN for high-speed wired networking, along with 802.11ax Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity.
Summary
The ASRock Z790M ITX DDR5 WiFi motherboard is a feature-rich platform designed for compact ITX systems. It offers support for the latest Intel Core processors, advanced connectivity options, and robust power delivery, making it an excellent choice for demanding applications and gaming experiences.
| Model | Z790M-ITX-WIFI |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphic) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® Z790 |
| Memory |
- Dual Channel DDR5 Memory Technology |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V) - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 (Front) - 3 x USB 2.0 (1 Rear, 2 Front) |
| Connector | - 1 x eDP Signal Connector - 1 x RGB LED Header - 1 x Addressable LED Header - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis Fan Connectors (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

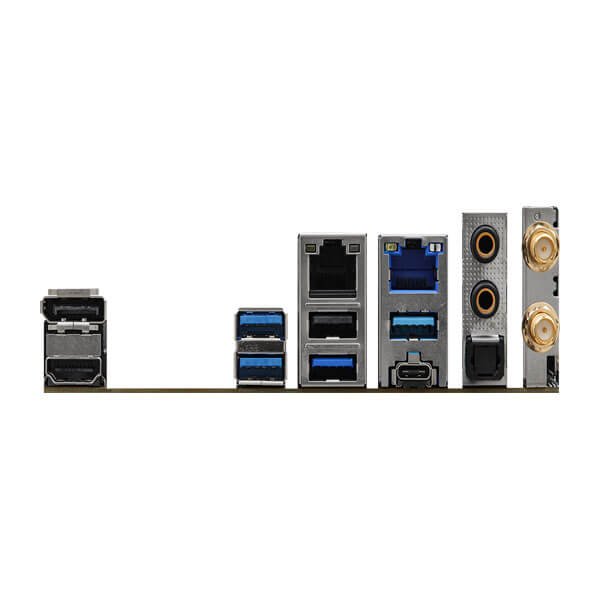

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 2.0 Port - 2 x RJ-45 LAN Ports - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |

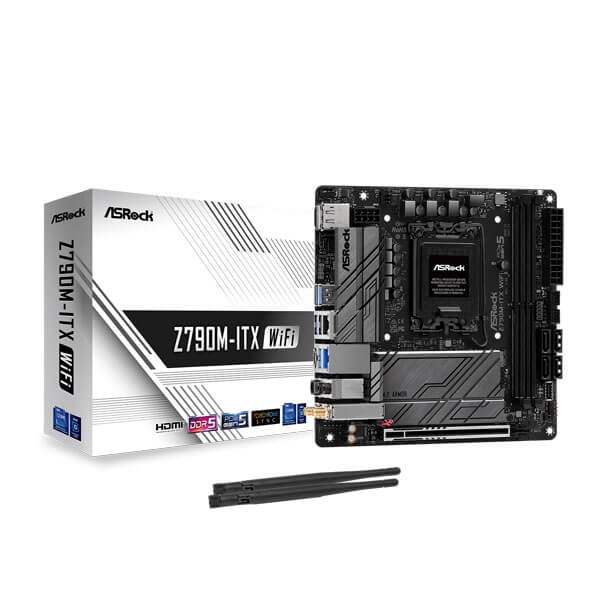

| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 8 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | Z790 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | MINI-ITX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
