These features are designed to offer a high-performance and reliable computing experience, particularly for users who need powerful processing capabilities and advanced connectivity options. Here's a detailed breakdown of each feature:
**Intel® LGA 1700 Socket:** This motherboard supports both 12th and 13th Gen Intel® processors, ensuring compatibility with the latest CPU technology from Intel.
**Enhanced Power Solution:** The motherboard is equipped with a robust power delivery system, including a 14+1 DrMOS configuration, a 6-layer PCB design, ProCool connectors, alloy chokes, and durable capacitors. This setup guarantees stable and efficient power delivery to the CPU and other components, which is essential for maintaining system stability and performance.
**Next-Gen Connectivity:** The motherboard offers advanced connectivity options, such as support for DDR5 memory, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, and three PCIe® 4.0 M.2 slots. These features enable high-speed data transfer, networking, and storage capabilities, making the system suitable for demanding tasks and future-proofing it for upcoming technologies.
**Exclusive Memory Technology:** ASUS Enhanced Memory Profile II and ASUS OptiMem II technologies optimize memory performance and stability. These features ensure efficient memory operation, allowing users to maximize the potential of their system's memory configuration.
**Comprehensive Cooling:** The motherboard includes effective cooling solutions, such as large VRM heatsinks, a flexible M.2 heatsink, a PCH heatsink, hybrid fan headers, and Fan Xpert 4 with AI Cooling II. These cooling features help dissipate heat generated by critical components, maintaining optimal operating temperatures and preventing thermal throttling, which can degrade performance.
**ASUS Control Center Express:** This real-time IT monitoring and management software provides enhanced data protection and system control. It allows users to monitor system health, manage device inventory, and perform remote maintenance tasks, enhancing overall system reliability and security.
Overall, these features work together to deliver a high-performance, stable, and future-ready computing experience for users who demand the best from their systems.
| Specification Description | __parsed_extra |
|---|---|
| CPU Intel® Socket LGA1700 for 14th | 13th, and 12th Gen Intel® Core™ Processors |
| Chipset | Intel® Z790 Chipset |
| Memory 4 x DIMM | Max. 128GB, DDR5 7200+/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 |
| Non-ECC | Un-buffered Memory |
| Graphics | 1 x DisplayPort |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z790 Chipset | |
| 3 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| M.2_1 slot (Key M) | type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_2 slot (Key M) | type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M) | type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth Vertical M.2 slot only (Key E | CNVi & PCIe) |
| Wi-Fi | module is sold separately |
| USB | Rear USB (Total 8 ports) |
| Front | USB (Total 9 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

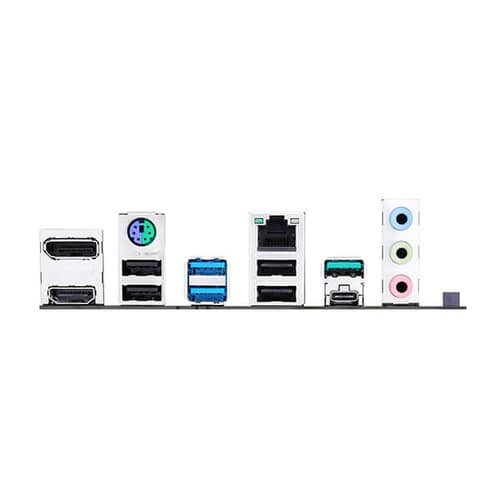

| Back Panel I/O Ports Various USB ports | DisplayPort, HDMI® port, Ethernet port, Audio jacks, PS/2 Keyboard/Mouse port |
| Internal I/O Connectors Various fan and cooling headers | power connectors, storage connectors, USB headers |
| Special Features ASUS 5X PROTECTION III | ASUS Q-Design, ASUS Thermal Solution, Aura Sync, ASUS EZ DIY |
| Software Features ASUS Exclusive Software | Armoury Crate, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, etc. |
| BIOS 192 (128+64) Mb Flash ROM | UEFI AMI BIOS |
| Manageability WOL by PME | PXE |
| Accessories Cables | I/O Shield, M.2 Rubber Package, Screw packages for M.2 SSD, Documentation, etc. |
| Operating System Windows® 11 | Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| Warranty | 3 Years |
| Note Features | Price, Specifications are subject to change without notice |
Motherboard
| Brand | ASUS |
| Stock Status | IN STOCK |
| Chipset | Z790 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | ATX |
| Platform | INTEL |
