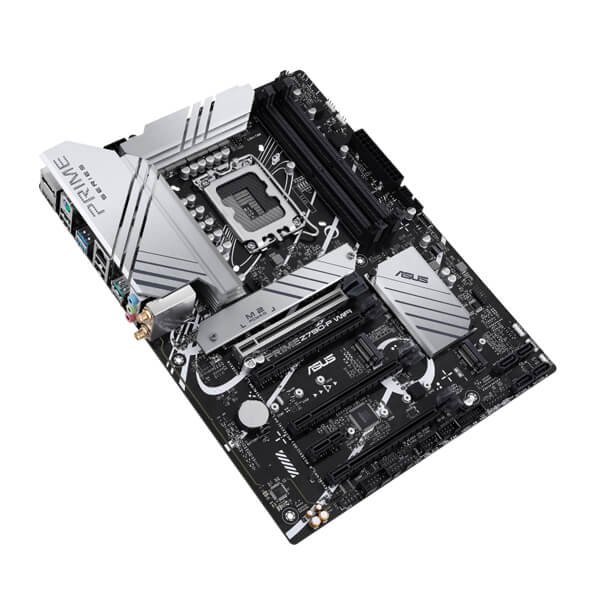

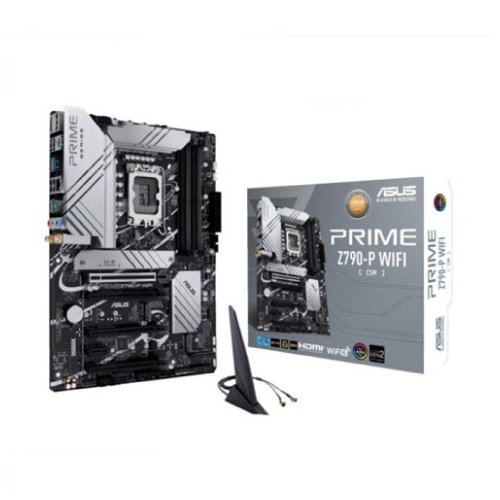

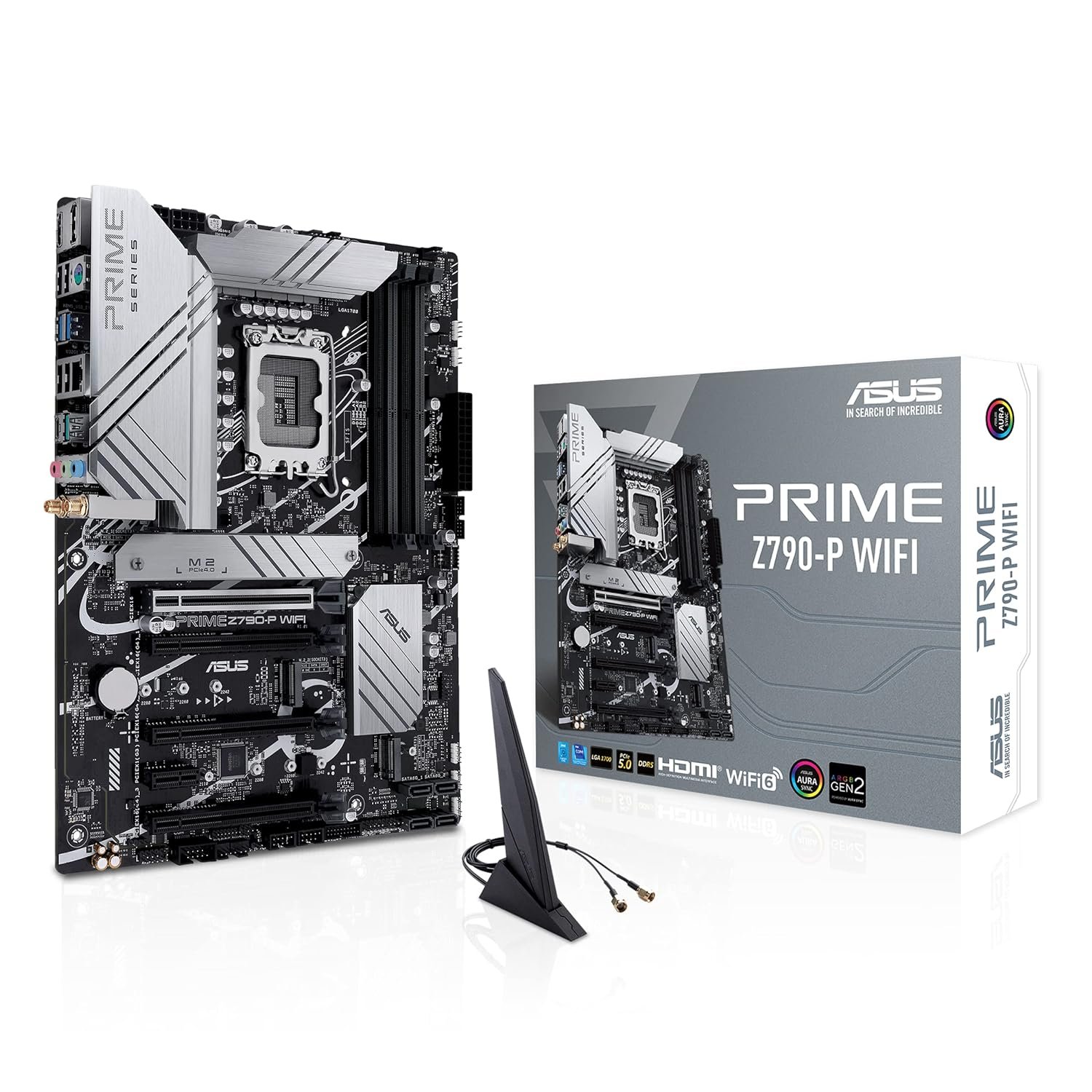

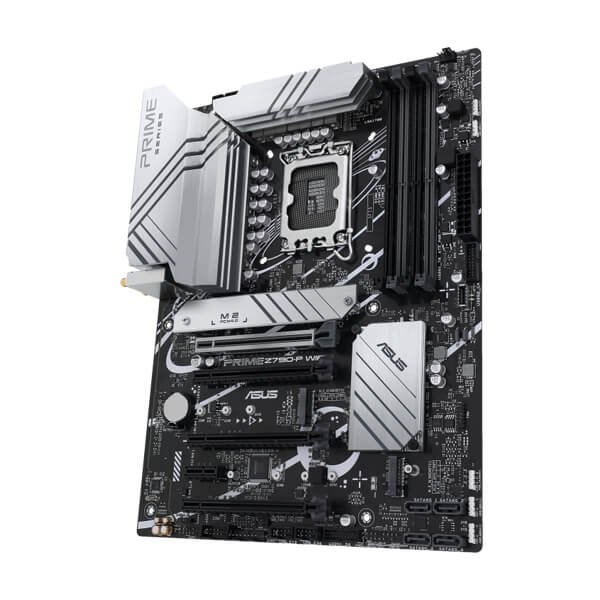

ASUS Prime Z790-P WIFI-CSM Series Motherboards
The ASUS Prime Z790-P WIFI-CSM series motherboards are specifically engineered to optimize the performance of 13th Gen Intel® Core™ Processors. These motherboards combine a powerful power system, advanced cooling solutions, and intelligent tuning features, making them ideal for users and PC builders seeking superior performance. Key features include:
ASUS Corporate Stable Model (CSM)
Provides long-term product lifecycle support up to 36 months and a 6-month end-of-life notification, with ASUS Control Center Express for efficient IT management.
Enhanced IT Management
Allows IT teams to monitor, manage, and maintain devices across corporate networks effectively, facilitating inventory checks and automated updates for BIOS, software, and utilities.
Energy Efficiency
Features power-saving settings including CPU power limits, dimmable Aura lighting, and adjustable fan profiles to improve energy consumption.
AI Cooling II
Automatically adjusts fan speeds based on CPU temperatures, ensuring optimal cooling and acoustic performance with a single click.
UEFI BIOS
Offers extensive configuration options for both novice and experienced PC builders, making system adjustments and tuning straightforward.
Advanced Cooling Solutions
Includes multiple onboard heatsinks and hybrid fan headers to maintain stable operation during heavy workloads, along with an AIO pump header for water-cooling setups.
M.2 Heatsink
Comes with a flexible M.2 heatsink with removable screws to prevent thermal throttling during prolonged data transfers.
Power Design
Ensures stable power delivery to fully utilize high-core-count CPUs.
AEMP II for DDR5 Performance
ASUS Enhanced Memory Profile II optimizes memory clock speeds for improved performance and stability, particularly with PMIC-restricted memory modules.
ASUS OptiMem II
Enhances memory stability and compatibility by optimizing signal pathways across various PCB layers, reducing crosstalk, and allowing for lower memory latencies at equivalent voltages.
These features make the ASUS Prime Z790-P WIFI-CSM motherboard a premier choice for achieving high performance, stability, and efficiency in demanding computing environments, making it suitable for both professional and enthusiast users.
| Specifications Details | __parsed_extra |
|---|---|
| Model PRIME | |
| CPU Intel® Socket LGA1700 for 14th Gen Intel® Core™ Processors | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Chipset |
| Memory 4 x DIMM | Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Graphics 1 x DisplayPort | 1 x HDMI® port |
| Expansion Slots 1 x PCIe 5.0 x16 slot | 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth Wi-Fi 6 | Bluetooth® v5.2 |
| USB Rear USB: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| Front USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

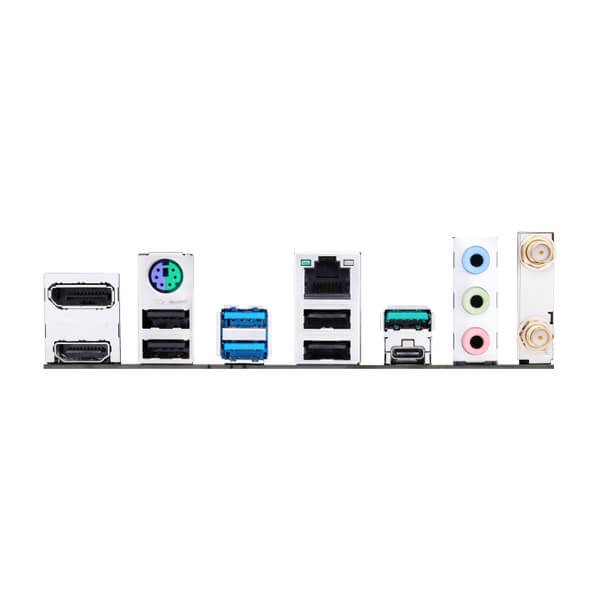

| Back Panel I/O Ports 1 x DisplayPort | 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors Various fan and cooling headers | power connectors, storage connectors, USB headers, miscellaneous headers, Thunderbolt™ (USB4®) Header |
| Special Features ASUS 5X PROTECTION III | ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features Armoury Crate | AI Suite 3, ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY |
| BIOS 192 (128+64) Mb Flash ROM | UEFI AMI BIOS |
| Manageability WOL by PME | PXE |

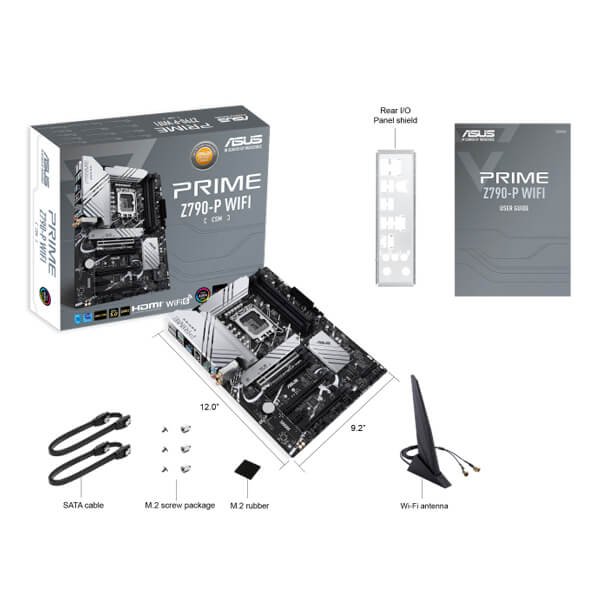

| Accessories Cables | ASUS Wi-Fi moving antennas, I/O Shield, M.2 Rubber Package, Screw packages for M.2 SSD, ACC Express Activation Key Card, User guide |
| Operating System Windows® 11 | Windows® 10 64-bit |
| Form Factor ATX Form Factor | 12 inch x 9.2 inch (30.5 cm x 23.4 cm) |
| Warranty | 3 Years |
| Note Features | Price, Specifications are subject to change without notice |
