ProArt Z790-Creator WiFi Motherboard
The ProArt Z790-Creator WiFi motherboard is meticulously crafted to meet the high demands of content creators, offering superior performance, rapid connectivity, and advanced features designed to streamline creative workflows. Here’s an overview of its key features:
Enhanced Performance

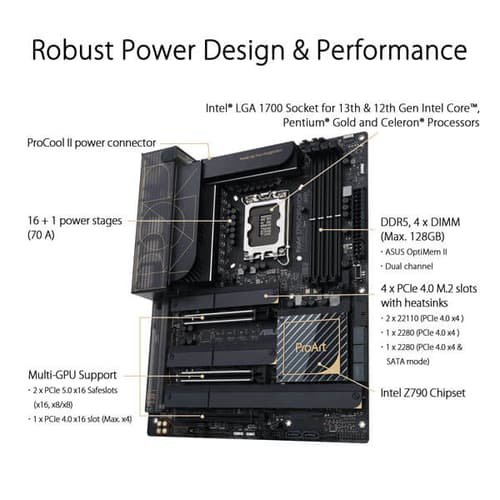

Optimized for 13th and 12th Gen Intel® Core™ processors, this motherboard includes 16+1 teamed power stages, DDR5 memory support, and PCIe 5.0 expansion slots for peak performance.
Sophisticated Design
Showcasing a sleek, professional look, it features black tones complemented by metallic gold accents, epitomizing precision and elegance.

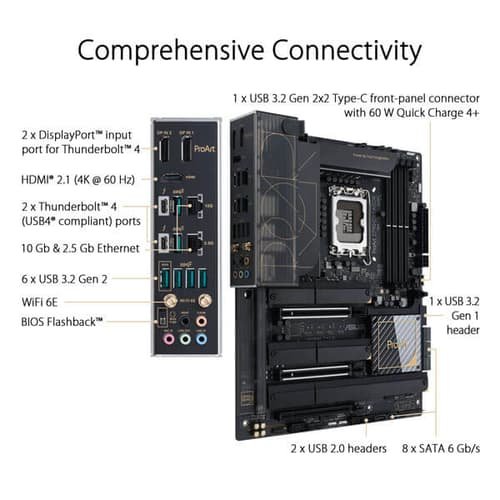

Thunderbolt 4 Ports
Equipped with Thunderbolt™ 4 (USB4® compliant) ports, the motherboard supports up to 40 Gbps bi-directional data transfers and high-resolution monitors, ideal for immersive creative work.
High-Speed Networking
- WiFi 6E: Operates on the 6 GHz band, providing ultrafast wireless speeds, enhanced capacity, and superior performance in crowded environments.
- 10 Gb & 2.5 Gb Ethernet: Dual Ethernet ports facilitate rapid data transfers for internet streaming, uploading, and network-attached storage, improving data management and security.
PCIe 5.0 Expansion Slots
Both x16 expansion slots support PCIe 5.0, offering speeds up to 64 GB/s for compatible devices, with SafeSlot retention brackets ensuring secure graphics card installation.
High-Speed M.2 Storage
Four PCIe 4.0 M.2 slots support NVMe® SSD RAID configurations, delivering significant performance boosts for storage-intensive applications.
Quick Charging and Connectivity
The USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+ technology provides fast charging for compatible devices and data transfers up to 20 Gbps.
AI Overclocking
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration, enabling users to achieve peak system performance.
Memory Optimization
- AEMP II: ASUS Enhanced Memory Profile II optimizes DDR5 memory clock speeds, enhancing performance while maintaining stability.

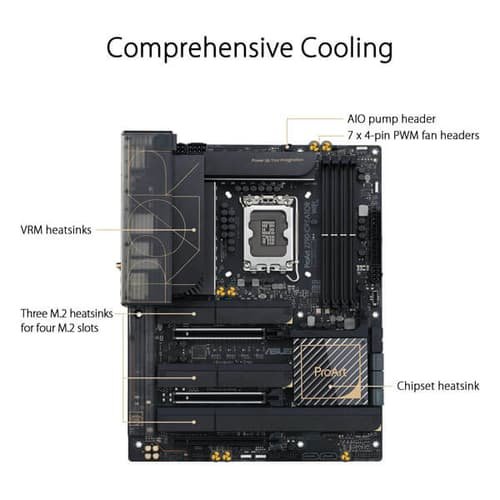

- AI Cooling II: Dynamically adjusts fan speeds based on CPU temperatures, balancing thermal management and acoustics.
- Two-Way AI Noise Cancellation: Minimizes background noise for both microphone and incoming audio, ensuring clear communication during video conferences and calls.
ProArt Creator Hub
This personal portal allows for PC status monitoring, personalized settings adjustments, and workflow optimization, featuring an intuitive dashboard and quick fan profile switching.
In summary, the ProArt Z790-Creator WiFi motherboard is a powerhouse of features and optimizations tailored to the exacting needs of content creators, empowering them to unleash their creativity with efficiency and confidence.
| Specification Details | __parsed_extra |
|---|---|
| Model ProArt Z790-CREATOR WIFI | |
| CPU Intel® Socket LGA1700 for 14th Gen Intel Core Processors | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset Intel® Z790 Chipset | |
| Memory 4 x DIMM | Max. 128GB, DDR5 Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics 1 x HDMI® port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
|
| Expansion Slots Intel® 13th & 12th Gen Processors: 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel® Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| Storage Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports NVMe RAID 0/1/5 |
SATA RAID 0/1/5/10 |
| Ethernet 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 |
|
| USB Rear USB (Total 8 ports): 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A |
15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC | |
| Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI® port 1 x ASUS Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
|
| Internal I/O Connectors Various headers for fans | power, storage, USB, etc. |
| Special Features ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync |
|
| Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 IT Management software supported ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY FlexKey MemTest86 |
|
| BIOS 256 Mb | |
| Manageability WOL by PME | PXE |
| Operating System Windows® 11 64-bit | Windows® 10 64-bit |
| Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
|
| Warranty 3 Years | |
| Note Features | Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASUS |
| Stock Status | IN STOCK |
| Chipset | Z790 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | ATX |
| Platform | INTEL |
