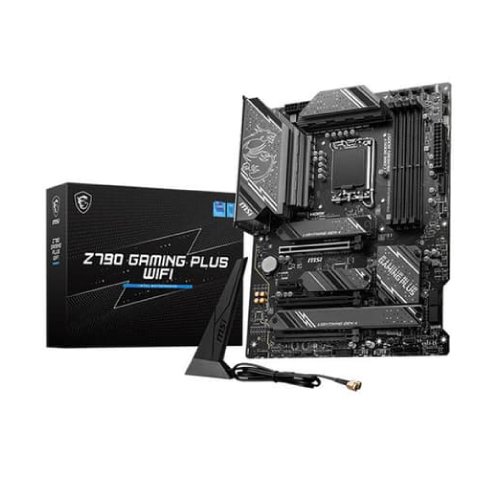

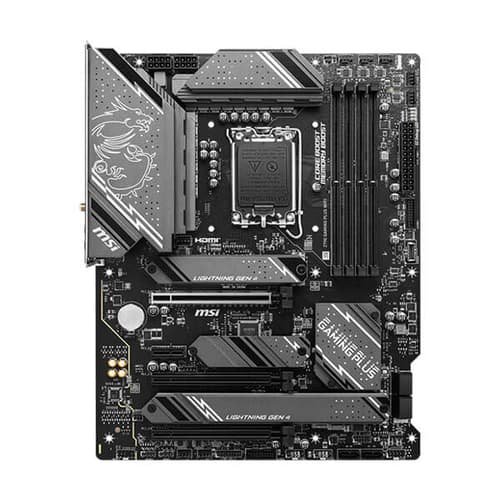

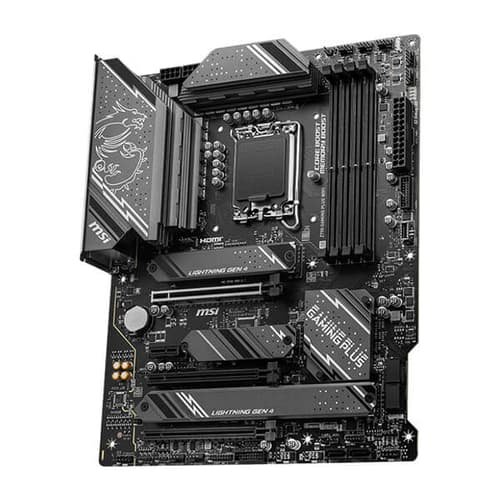

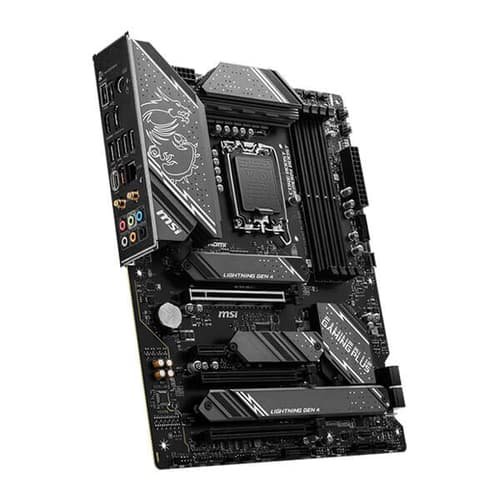

The MSI Z790 Gaming Plus WIFI motherboard is tailored for gamers and enthusiasts who seek high performance, reliability, and advanced features for their gaming rigs. Here are some key features typically associated with this MSI Z790 gaming motherboard:
The Z790 chipset is designed for Intel's 12th-generation Alder Lake processors, offering support for both DDR5 and DDR4 memory.
The motherboard likely follows the ATX form factor, which is standard for gaming and enthusiast builds, offering ample space for expansion cards and cooling solutions.
It supports Intel's LGA 1700 socket for Alder Lake processors, offering a wide range of performance options for gaming and multitasking.
It supports DDR5 and DDR4 memory, providing high-speed memory options for improved performance.
Typically, the motherboard offers multiple PCIe slots for graphics cards, storage expansion cards, and other add-in cards.
It provides multiple SATA III ports and M.2 slots for high-speed SSD storage, supporting both SATA and NVMe protocols.
It features onboard Wi-Fi connectivity, enabling wireless internet access for convenience.
It is often equipped with high-quality audio components and features for immersive gaming audio experiences.
Many gaming-oriented motherboards include customizable RGB lighting and design elements to enhance the visual appeal of the build.
It offers a variety of USB ports, audio jacks, and other I/O options for connecting peripherals and devices.
It includes features and utilities for overclocking the CPU, RAM, and other system components for increased performance.
It provides a user-friendly BIOS interface with advanced options for tweaking performance settings and monitoring system health.
| Specifications | Value |
|---|---|
| Model | Z790 GAMING PLUS WIFI |
| Chipset | INTEL Z790 |
| CPU SUPPORT | Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:
Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |

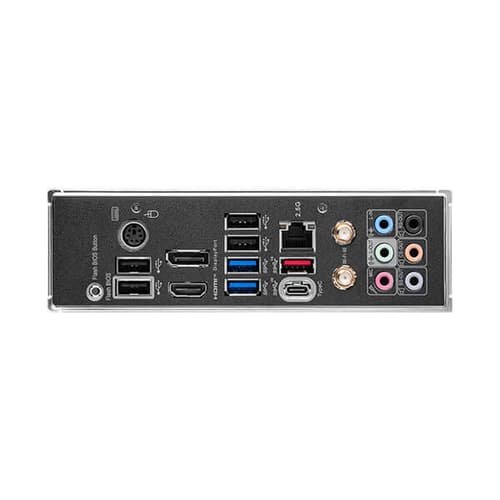

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | Z790 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | ATX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
