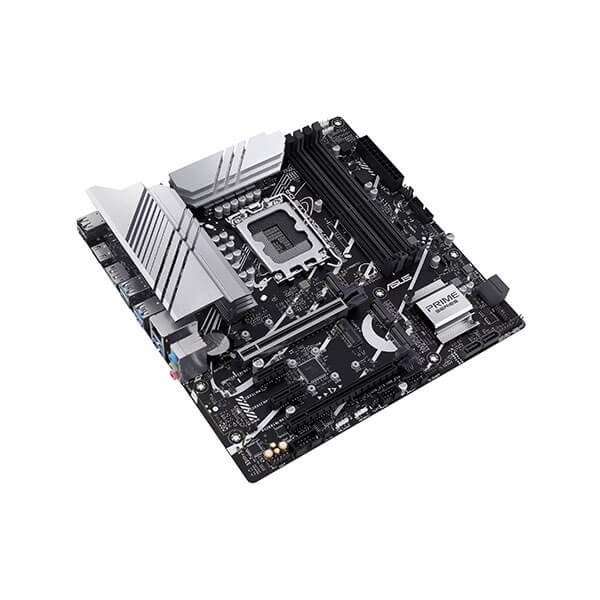

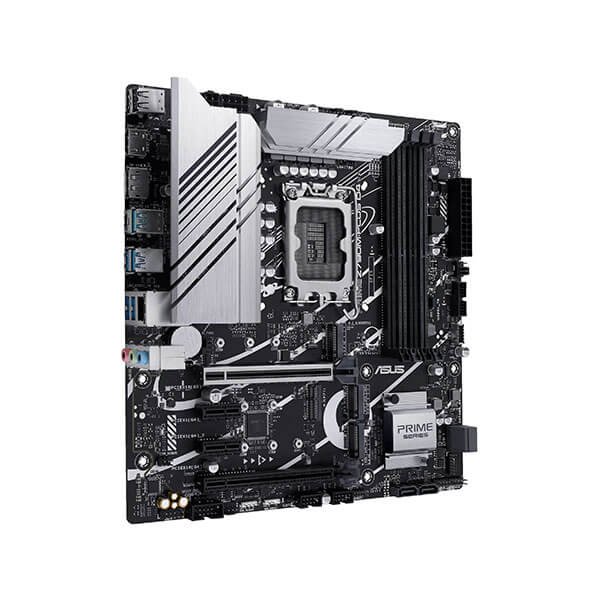

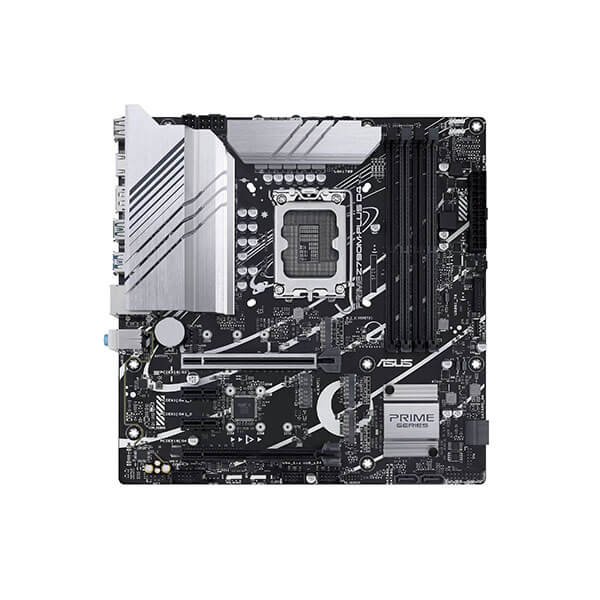

Intel LGA 1700 socket: This motherboard supports Intel's LGA 1700 socket, making it compatible with both 12th and 13th Gen Intel® processors. The LGA 1700 socket is specifically designed for these generations of Intel processors, ensuring optimal performance and compatibility.
Enhanced power solution: The motherboard features a 10+1 DrMOS power delivery system, which includes high-quality components such as a 6-layer PCB, ProCool connectors, alloy chokes, and durable capacitors. This setup ensures stable power delivery to the CPU, which is crucial for maintaining performance and stability, especially during demanding tasks like gaming or content creation.
Next-gen connectivity: It offers advanced connectivity options including PCIe® 5.0 for high-speed data transfer, Intel® 1 Gb Ethernet for reliable networking, USB 3.2 Gen2x2 Type-C® for fast peripheral connections, front panel USB 3.2 Gen 1 Type-C, and support for Thunderbolt™ (USB4) headers. These features provide users with fast and versatile connectivity options for various devices.
ASUS OptiMem II: This feature involves careful routing of traces and vias, as well as ground layer optimizations on the motherboard, aimed at preserving signal integrity. This optimization helps in improving memory overclocking capabilities, ensuring stable and reliable performance when pushing the memory to higher speeds.
Comprehensive cooling: The motherboard includes large VRM heatsinks and a PCH heatsink to effectively dissipate heat generated by the components. It also features hybrid fan headers and Fan Xpert 4 with AI Cooling II technology, which intelligently adjusts fan speeds based on system temperatures to maintain optimal cooling performance.
ASUS Control Center Express: This is real-time IT monitoring and management software provided by ASUS. It allows users to monitor and manage their system's performance and health in real-time, enhancing data protection and ensuring efficient system operation. It's particularly useful for businesses or organizations looking to manage multiple systems effectively.
| Component Description | __parsed_extra |
|---|---|
| CPU | Intel® Socket LGA1700 for 14th, 13th, 12th Gen Intel® Core™, Pentium Gold and Celeron Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Z790 |
| Memory 4 x DIMM | Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Graphics 1 x DisplayPort** | 1 x HDMI® port*** |
| Expansion Slots | Intel® 13th Gen and 12th Gen Processors*: 1 x PCIe 5.0 x16 slot, Intel® Z790 Chipset**: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots |
| Storage Supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports, Intel 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280, Intel® Z790 Chipset**: M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E CNVi & PCIe), *Wi-Fi module is sold separately |
| USB Rear USB: | Total 8 ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB:Total 7 ports: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports* |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |

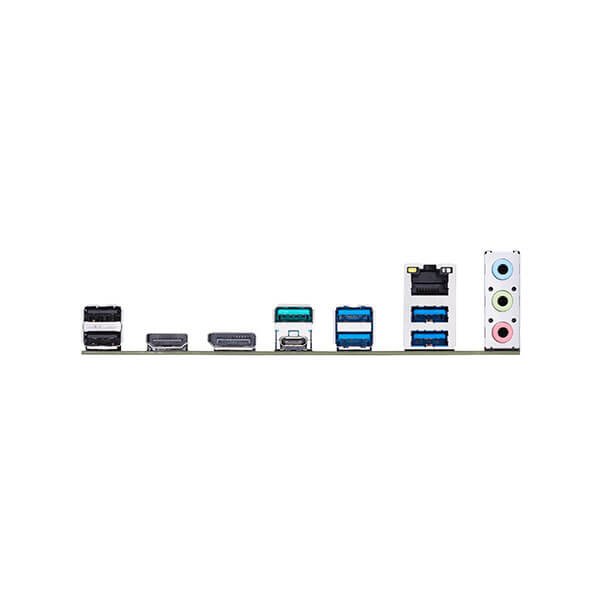

| Back Panel | I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks |
| Internal I/O Connectors | Fan and cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x M.2 slot (Key E), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ header |
| Special Features | ASUS 5X PROTECTION III, DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O, ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot, ASUS Thermal Solution: VRM heatsink design, ASUS EZ DIY: ProCool, AURA Sync: AURA RGB header, Addressable Gen 2 headers |
| Software Features ASUS Exclusive Software: Armoury Crate - AURA Sync | Fan Xpert 4, Power Saving, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, PC Cleaner, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME | PXE |
| Accessories Cables: 2 x SATA 6Gb/s cables | Miscellaneous: 1 x I/O Shield, 2 x M.2 SSD screw packages, Documentation: 1 x User guide, 1 x ACC Express Activation Key Card |
| Operating System Windows® 11 64-bit | Windows® 10 64-bit |
| Form Factor | 24 |
