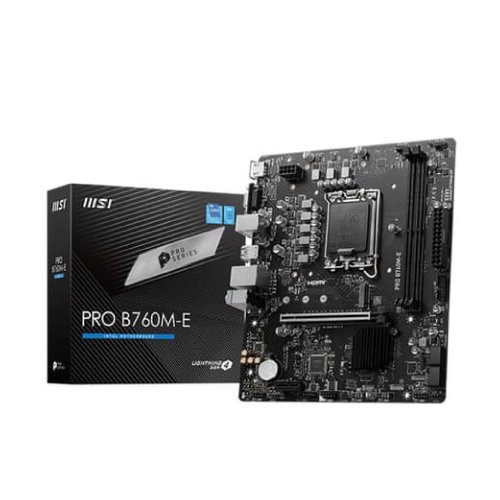

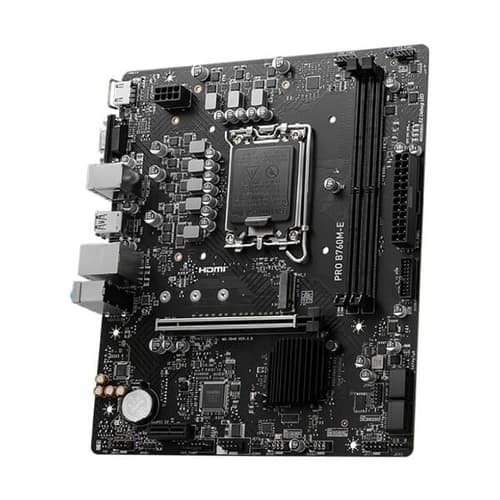

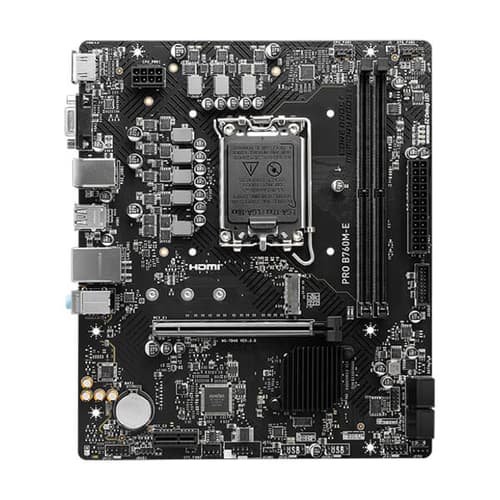

The MSI Pro B760M-E is a motherboard designed for Intel processors, featuring the B760M-E chipset. However, generally, MSI Pro series motherboards are known for their reliability and stability, often targeted towards business or professional users. Here are some general features you might find on a motherboard like the MSI Pro B760M-E:
It supports Intel processors and is compatible with 8th and 9th-generation Intel Core processors.
It supports DDR4 memory modules, typically with multiple DIMM slots for memory expansion.
PCIe slots for adding graphics cards, additional storage controllers, or other expansion cards.
Built-in LAN port for networking, USB ports for peripherals, and possibly other connectivity options like SATA ports for storage drives.
This motherboard adheres to the micro-ATX form factor, which is smaller than standard ATX but larger than mini-ITX. This form factor is often chosen for its balance between size and expandability.
Basic Input/Output System (BIOS) features for configuring hardware settings, overclocking (if supported), and monitoring system health.
Onboard audio and video support may be available, though dedicated graphics cards are typically used for better performance, especially in gaming or professional applications.
MSI Pro Series motherboards often emphasize durability and stability for long-term use in business or professional environments.
This could include features like M.2 slots for fast SSD storage, RGB lighting control, or software utilities for system management.
| Specifications | Details |
| Model | PRO B760M-E |
| Chipset | INTEL B760 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency:
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
|
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
|
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | mATX 200mmx236.16mm |
| Warranty | 3 Years |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | B760 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | MICRO-ATX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
No reviews found!
No comments found for this product. Be the first to comment!
