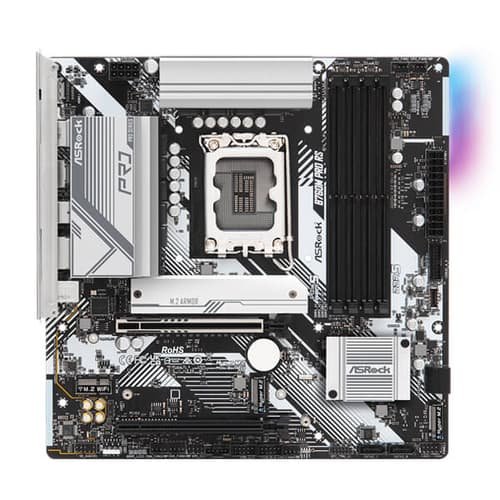

ASRock B760M RS Gaming Pro Motherboard

The ASRock B760M Pro RS motherboard is packed with features designed to deliver high performance and stability:

Processor Compatibility: It supports a wide range of Intel® Core™ processors, including 14th, 13th, and 12th generation CPUs designed for the LGA1700 socket. This compatibility ensures users have flexibility in choosing their preferred processor for their system.

Power Phase Design: Featuring a 7+1+1 power phase design with Dr.MOS technology for VCore+GT, this motherboard ensures efficient and stable power delivery to the CPU and integrated graphics, crucial for maintaining system stability, especially during overclocking.

DDR5 Memory Support: With support for DDR5 memory clocked at speeds of up to 7200MHz (when overclocked), users can enjoy the benefits of high-speed memory configurations, enhancing overall system performance.

Expansion Slots: It comes with one PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot, providing ample room for high-speed expansion cards such as graphics cards. Additionally, it features an M.2 Key E slot dedicated to WiFi modules, offering convenient wireless connectivity options.

Graphics Output Options: The motherboard offers HDMI and DisplayPort connections, providing flexibility in connecting various display devices.

Audio Codec: Equipped with a Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio technology, users can enjoy high-quality audio output for an immersive listening experience.

Storage Connectivity: With four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4), users have plenty of options for connecting storage devices, including traditional hard drives and high-speed SSDs.

USB Ports: It features extensive USB connectivity, including two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front), offering versatility in connecting peripherals and devices.

Networking: With Dragon 2.5G LAN support, users can benefit from high-speed wired network connectivity, ensuring fast and reliable data transfer rates.

Auto Driver Installer: ASRock's Auto Driver Installer simplifies the driver installation process, making it easier for users to set up and configure their system.

DDR5 Memory with Protection Circuit: To prevent damage to DDR5 memory modules during installation or removal, ASRock has implemented a protection circuit on every DDR5 motherboard, enhancing reliability and durability.

PCIe 5.0 + Surface-Mount Technology: Featuring SMT PCIe slots, the motherboard improves signal flow and stability under high-speed conditions, fully supporting the lightning speed of the PCIe 5.0 standard. PCIe 5.0 offers a bandwidth of up to 128GBps, ensuring compatibility with future high-end graphics cards and other PCIe devices.
