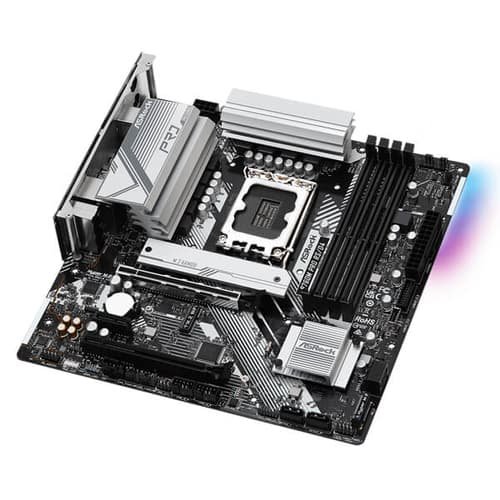

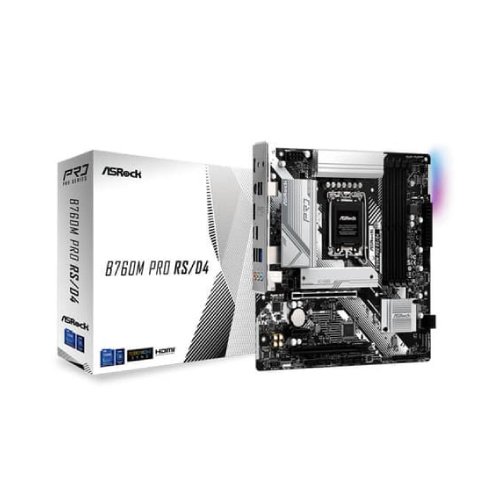

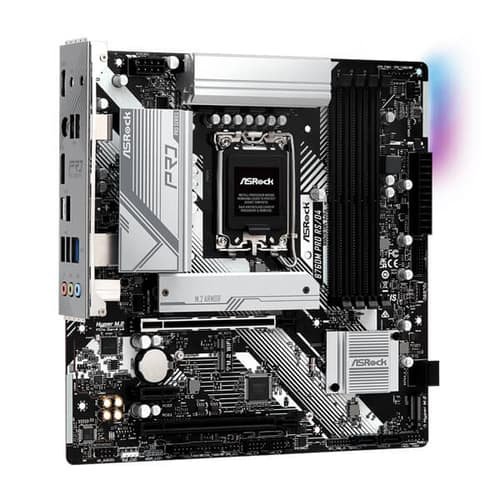

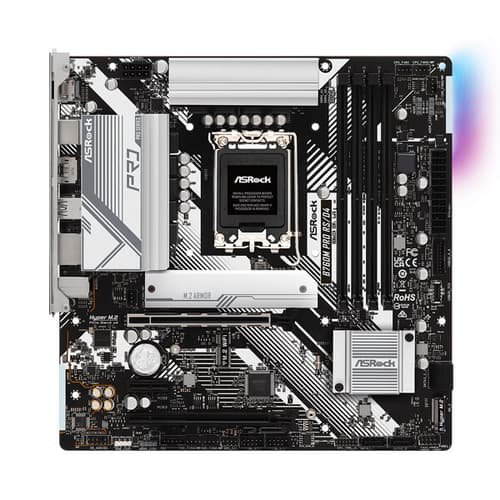

The ASRock B760M Pro RS Gaming D4 Motherboard is engineered to deliver strong, reliable performance for gamers, creators, and PC enthusiasts who demand both efficiency and flexibility. Built on the Intel B760 chipset, it supports 12th and 13th Generation Intel Core processors, offering advanced performance with excellent stability. The board’s robust design, accented with silver and black tones, provides a professional look while integrating durable components and intelligent layout for long-lasting reliability.
Optimized for gaming and productivity, the B760M Pro RS features dual-channel DDR4 memory support, PCIe 5.0 for next-generation GPUs, and multiple M.2 slots for lightning-fast storage. Comprehensive connectivity options, including high-speed USB ports, 2.5G LAN, and premium audio, make it ideal for modern gaming setups. With advanced cooling features, enhanced power delivery, and support for ASRock’s Polychrome RGB lighting, this motherboard provides the perfect balance of aesthetics, performance, and value.
Key Features
-
Supports Intel 12th & 13th Gen Processors:
Compatible with the latest Intel Core, Pentium Gold, and Celeron CPUs using the LGA 1700 socket. -
Intel B760 Chipset:
Designed for high stability, efficient performance, and future-ready expandability. -
Dual-Channel DDR4 Memory:
Supports up to 128GB of DDR4 RAM for smooth multitasking and gaming performance. -
PCIe 5.0 Graphics Slot:
Delivers maximum bandwidth for next-generation graphics cards and superior data throughput. -
Ultra-Fast M.2 Slots:
Dual M.2 slots support NVMe SSDs for high-speed storage and reduced load times. -
2.5G LAN Connectivity:
Ensures fast and stable wired network performance for gaming and streaming. -
High-Definition Audio:
Built-in HD audio with premium capacitors provides immersive and clear sound quality. -
Polychrome RGB Lighting:
Customizable RGB lighting allows synchronization with compatible ARGB devices for personalized aesthetics. -
Durable Build & Cooling Design:
Reinforced power phases, solid capacitors, and extended heatsinks ensure stable operation under load.
Technical Specifications
| Specification | Value |
|---|---|
| Model Name | B760M Pro RS Gaming D4 |
| Chipset | Intel B760 |
| CPU Support | 12th & 13th Gen Intel Core, Pentium Gold, Celeron |
| Socket Type | LGA 1700 |
| Memory Support | Dual Channel DDR4 (Up to 128GB) |
| Memory Slots | 4 × DDR4 DIMM Slots |
| PCIe Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x1 |
| Storage Options | 2 × M.2 (PCIe Gen4), 4 × SATA III Ports |
| Graphics Output | 1 × HDMI, 1 × DisplayPort |
| LAN | 2.5G Ethernet |
| Audio | 7.1 Channel HD Audio (Realtek ALC897) |
| USB Ports | Front & Rear USB 3.2 Gen1 / Gen2 / USB 2.0 |
| RGB Support | ASRock Polychrome SYNC (ARGB + RGB Headers) |
| Power Phase Design | 8 Power Phase |
| Cooling Support | Multiple Fan Headers + M.2 Heatsink Support |
| Form Factor | Micro-ATX |
| Dimensions | 244 × 244 mm |
| Colour Scheme | Black & Silver |
| Warranty | 3 Years |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B760 |
| Memory Type | DDR4 |
| Socket Support | LGA 1700 |
| Form Factor | MICRO-ATX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
