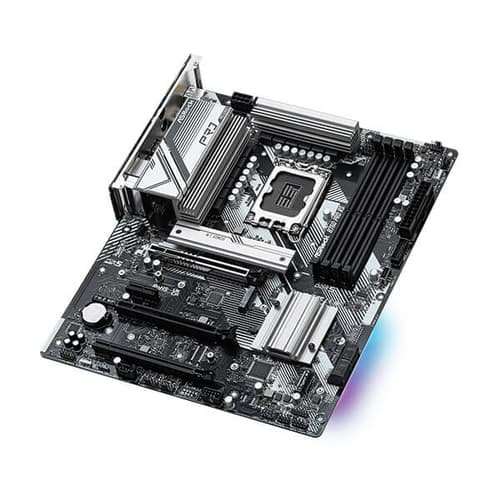

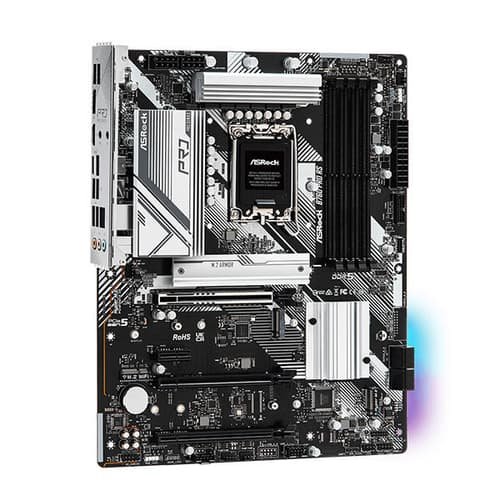

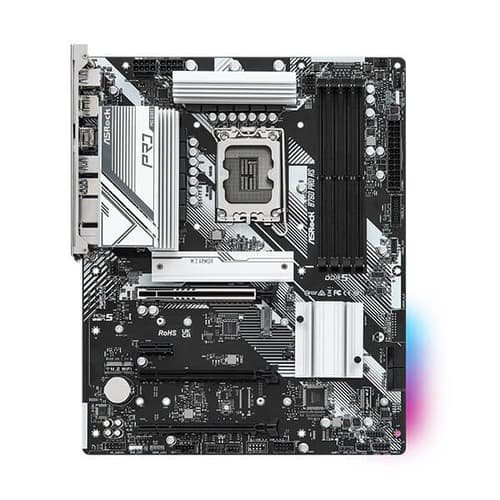

Motherboard Key Features
- Compatibility with Intel® Core™ Processors: Supports 14th, 13th, and 12th generation Intel® Core™ processors using the LGA1700 socket.
- Robust Power Delivery: Equipped with a 10+1+1 power phase design featuring Dr.MOS technology, ensuring efficient and stable power delivery to both the CPU and integrated graphics.
- High-Speed DDR5 Memory Support: Capable of supporting DDR5 memory with speeds up to 7200MHz when overclocked, facilitating enhanced system performance.
- Versatile Expansion Slots:
- 1 PCIe 5.0 x16 slot
- 1 PCIe 4.0 x16 slot
- 1 PCIe 3.0 x16 slot
- 1 PCIe 3.0 x1 slot
- 1 M.2 Key E slot for WiFi modules
- Multiple Graphics Output Options: Supports HDMI, DisplayPort, and eDP (embedded DisplayPort) to cater to different display setups.
- Advanced Audio Technology:
- Realtek ALC897 audio codec providing 7.1 channel high-definition audio
- Enhanced with Nahimic Audio technology for immersive sound quality
- Comprehensive Storage Solutions:
- 4 SATA3 ports for traditional hard drives or SATA SSDs
- 2 Hyper M.2 slots supporting PCIe Gen4x4 SSDs
- 1 M.2 slot supporting PCIe Gen4x2 SSDs
- Extensive USB Connectivity:
- 2 USB 3.2 Gen2 Type-C ports (1 rear, 1 front)
- 1 USB 3.2 Gen2 Type-A port (rear)
- 6 USB 3.2 Gen1 ports (4 rear, 2 front)
- 4 USB 2.0 ports (2 rear, 2 front)
- High-Speed Network: Includes a Dragon 2.5G LAN controller for fast wired network connectivity.
- User-Friendly Setup: Supports ASRock Auto Driver Installer, simplifying driver installation and system configuration.
Specificaton:

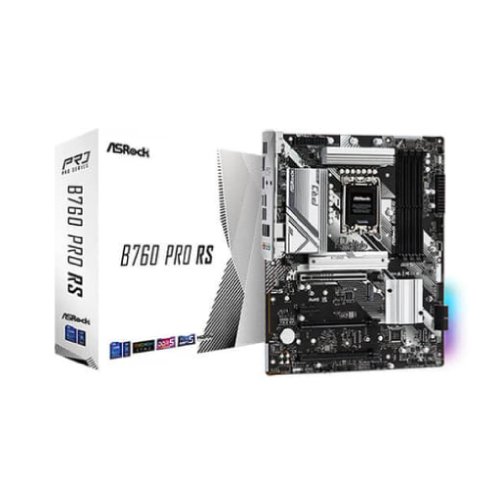

| Model | B760 Pro RS |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® B760 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
| Connector |
- 1 x eDP Signal Connector *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). |

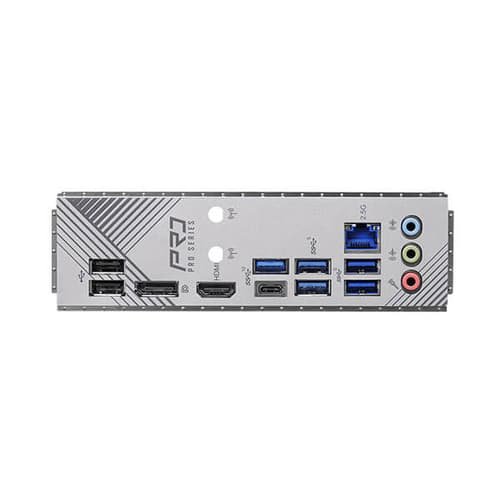

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B760 |
| Memory Type | DDR5 |
| Socket Support | LGA 1700 |
| Form Factor | ATX |
| Platform | INTEL |
| Shipping Cost |
|
| Shop Location |
