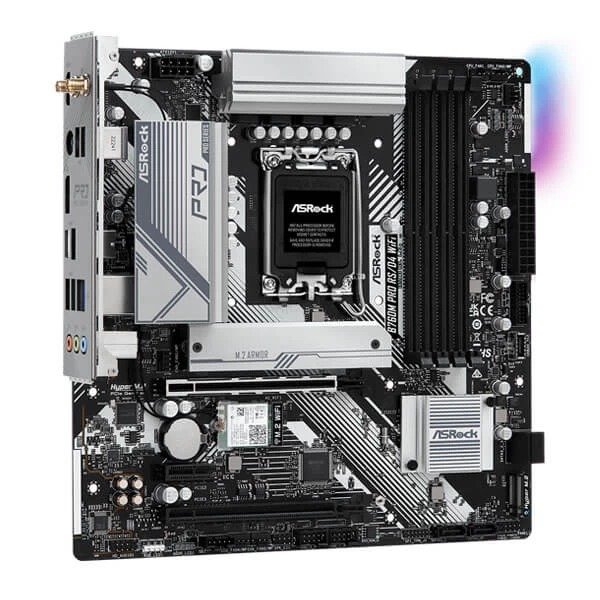

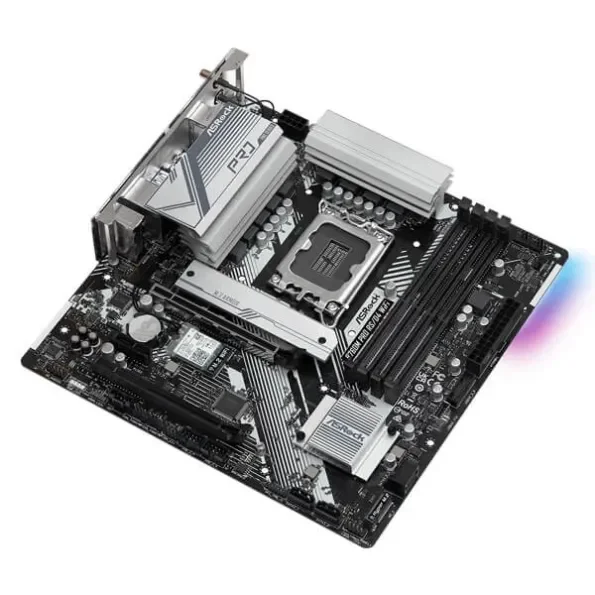

The ASRock B760M Pro RS/D4 WiFi motherboard is equipped with features aimed at delivering high performance and connectivity:
Processor Compatibility: It supports 14th, 13th, and 12th generation Intel Core processors designed for the LGA1700 socket, providing users with a wide range of CPU options to choose from.
Power Phase Design: Featuring a 7+1+1 power phase design with Dr.MOS technology for VCore+GT, this motherboard ensures efficient and stable power delivery to the CPU and integrated graphics, essential for overclocking and system stability.
Supports DDR4 5333MHz (OC): It supports DDR4 memory with speeds of up to 5333MHz when overclocked, offering high-speed memory configurations for enhanced system performance.
Expansion Slots: The motherboard comes with two PCIe 4.0 x16 slots and one PCIe 4.0 x1 slot, providing ample room for high-speed expansion cards such as graphics cards and other peripherals.
Graphics Output Options: It offers HDMI and DisplayPort connections for video output, catering to various display devices and setups.
Audio Codec: Equipped with a Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio technology, users can enjoy high-quality audio output for an immersive listening experience.
Storage Connectivity: With four SATA3 ports and two Hyper M.2 slots supporting PCIe Gen4x4 SSDs, users have ample options for connecting storage devices, including traditional hard drives and high-speed SSDs.
USB Ports: The motherboard features extensive USB connectivity, including two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front), providing versatile connectivity for peripherals and devices.
Dragon 2.5G LAN: With intelligent 2.5Gb/s LAN support, users can enjoy maximum networking performance for gaming, content creation, online streaming, and file transfers, offering faster and more reliable connectivity compared to standard gigabit Ethernet.
802.11ax (WiFi 6E) + Bluetooth 5.3: The motherboard is equipped with WiFi 6E technology and Bluetooth 5.3 support, providing high-speed wireless connectivity and enhanced Bluetooth capabilities.
ASRock Auto Driver Installer: Simplifying the setup process, ASRock's Auto Driver Installer facilitates easy driver installation, ensuring users can quickly set up and configure their system.
Nahimic Audio: Nahimic Audio offers an engaging listening experience with vibrant and rich details, enhancing communication quality with features such as static noise suppression, echo cancellation, lateral sound cancellation, and voice stabilizer.
POLYCHROME RGB: Featuring built-in RGB illumination and onboard RGB headers, users can connect compatible LED devices to create custom lighting effects and synchronize them across Polychrome RGB Sync-certified accessories.
High-Speed M.2 Solution (PCIe Gen4 x4): With support for PCI Express 4.0 M.2 SSDs, the motherboard delivers twice the speed compared to previous generations, providing lightning-fast data transfer speeds.
These features make the ASRock B760M Pro RS/D4 WiFi motherboard a versatile and high-performance option for various computing needs, from gaming to content creation and multimedia consumption.
Specifications:
| Model Name | B760M Pro RS/D4 WiFi |
| Unique Feature | Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update - ASRock Auto Driver Installer EZ Troubleshooter |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® B760 |
| Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks - Supports AMD CrossFire™ |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |

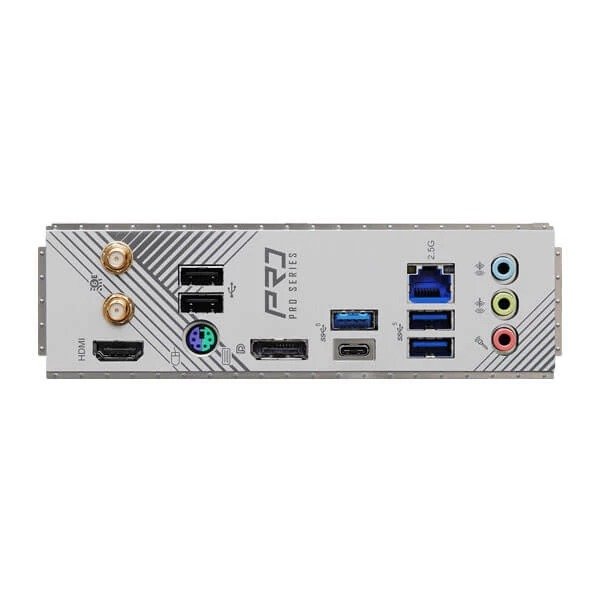

| Rear Panel I/O | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |

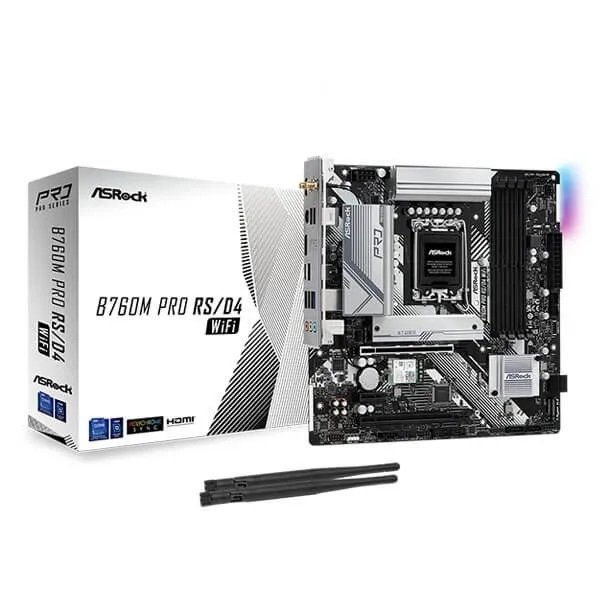

| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Motherboard
| Brand | ASROCK |
| Stock Status | IN STOCK |
| Chipset | B760 |
| Memory Type | DDR4 |
| Socket Support | LGA 1700 |
| Form Factor | MICRO-ATX |
| Platform | INTEL |
