ASUS Prime B760M-A WIFI Motherboard Features
The ASUS Prime B760M-A WIFI motherboard is a versatile and feature-rich platform, designed to support both 13th and 12th Gen Intel processors. Let's delve into its key features:
Intel® LGA 1700 Socket
The motherboard comes with an Intel LGA 1700 socket, making it compatible with both 13th and 12th Gen Intel processors. This ensures versatility and longevity in CPU support, allowing for future upgrades without needing a new motherboard.

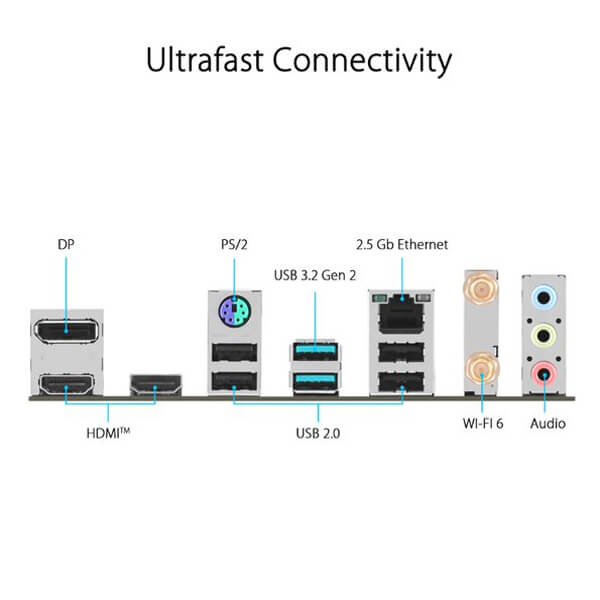

Ultrafast Connectivity
To facilitate high-speed data transfer and robust network connectivity, the motherboard is equipped with:
- PCIe 4.0 Support: Ensures rapid data transfer rates for the latest graphics cards and SSDs.
- Two M.2 Slots: Provides ample storage expansion options with fast read/write speeds.
- Realtek 2.5Gb Ethernet: Enhances wired network performance.
- Wi-Fi 6 Support: Offers advanced wireless connectivity with faster speeds and improved efficiency.

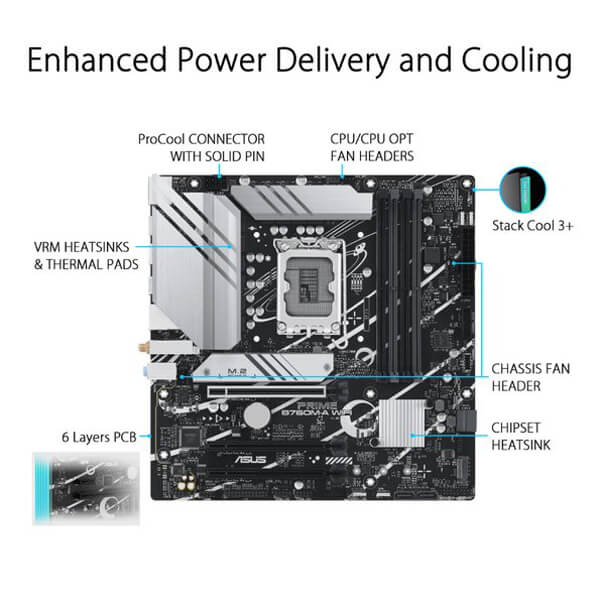

Comprehensive Cooling
Maintaining optimal temperatures and system stability is crucial for performance. The ASUS Prime B760M-A WIFI features:
- VRM Heatsinks, M.2 Heatsink, and PCH Heatsink: These components help dissipate heat efficiently.
- Hybrid Fan Headers and ASUS Fan Xpert 2+ Software: Provide precise control over fan speeds and cooling performance.
Exclusive Memory Technology
For memory-intensive tasks, the motherboard includes:
- ASUS Enhanced Memory Profile II and ASUS OptiMem II Technologies: These enhance memory performance, ensuring stability and reliability during demanding applications.

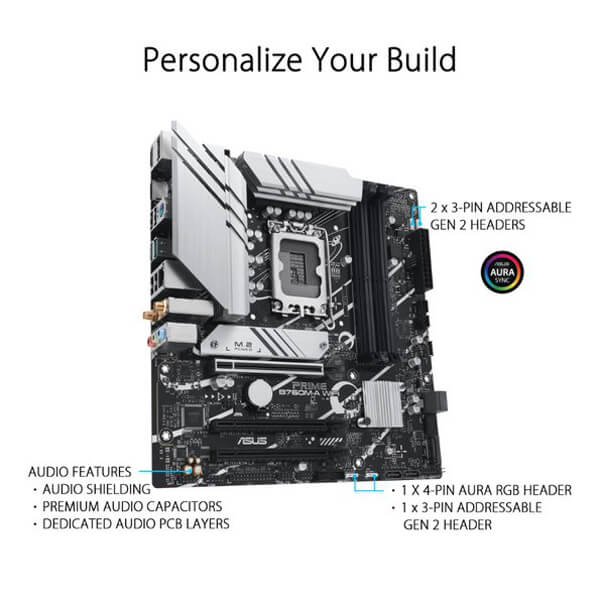

Aura Sync RGB Lighting
Customization is a breeze with:
- Addressable Gen 2 Headers and Aura RGB Header: Allow users to connect RGB LED strips and customize their system's lighting effects.
- Aura Sync: Synchronizes lighting effects with other Aura Sync-capable hardware for a cohesive visual experience.
Robust Power Design
The ASUS Prime B760M-A WIFI boasts a robust power design to ensure stable and reliable power delivery to the CPU and other components, optimizing performance and enhancing system longevity.
Intelligent Tuning Options
The motherboard offers intelligent tuning options, simplifying system optimization with:
- Intuitive Software and Firmware Features: These make overclocking and system tweaking accessible to users, even those with less technical expertise.
Conclusion
Overall, the ASUS Prime B760M-A WIFI motherboard combines robust power delivery, comprehensive cooling solutions, and intelligent tuning options. It provides PC DIY builders and users with a platform optimized for performance, customization, and future upgrades.
Specifications:
| Model | PRIME B760M-A WIFI |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
Memory |
4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort 2 x HDMITM ports |

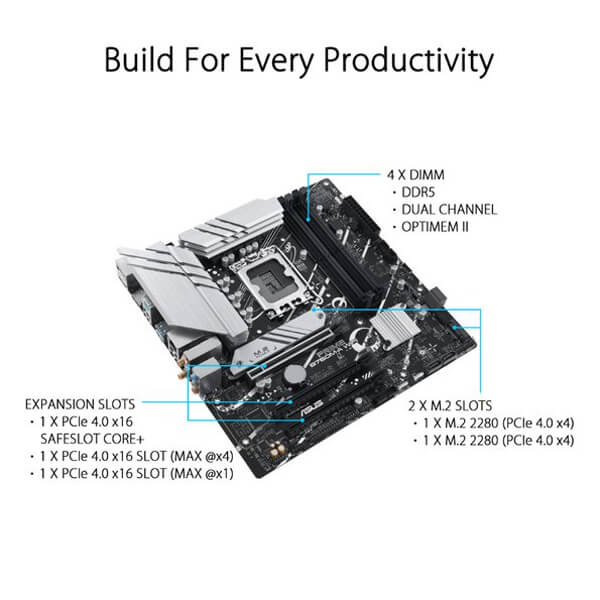

| Expansion Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth |
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
USB |
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide |
Operating System |
Windows® 11, Windows® 10 64-bit |
Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
