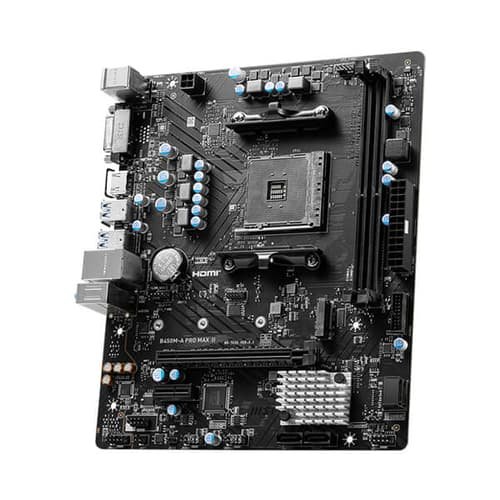

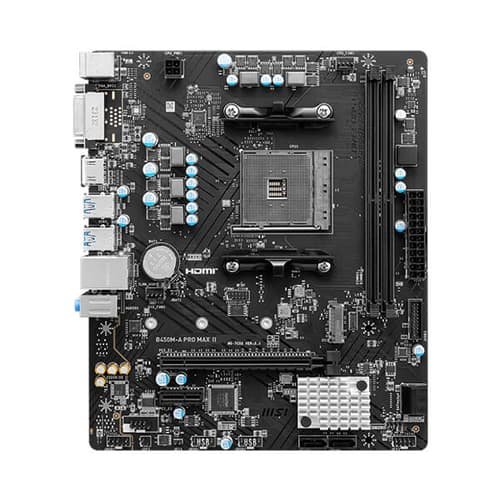

Introducing the MSI B450M-A PRO MAX II, an AMD AM4 motherboard that draws inspiration from architectural design principles. Packed with advanced features like Core Boost, DDR4 Boost, Turbo M.2, and USB 3.2 Gen1, this motherboard delivers a seamless and powerful computing experience.
Features:
Architectural Design Inspiration:
The motherboard's design is inspired by architectural aesthetics, reflecting a blend of functionality and style. Core Boost and DDR4 Boost:
Core Boost technology ensures optimal power delivery to the CPU for enhanced performance. DDR4 Boost provides optimized traces and isolated memory circuitry for an extended memory performance. Processor Compatibility:
Supports a wide range of AMD processors, including Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, and 1000 Series desktop processors. Compatibility also extends to Athlon™ processors with Radeon™ Vega Graphics. Memory Support:
DDR4 Memory support, allowing speeds of up to 4133 (OC) MHz for efficient multitasking and responsiveness. Turbo M.2:
Turbo M.2 technology running at PCI-E Gen3 x4 maximizes the performance of NVMe-based SSDs, ensuring rapid data access and transfer speeds. Audio Boost:
Immerse yourself in studio-grade sound quality with the Audio Boost feature, enhancing your audio experience during gaming or multimedia activities. 2.5G LAN:
Upgraded network solution designed for professional and multimedia usage, delivering a secure, stable, and high-speed network connection. X-Boost:
Intelligent software that automatically detects and boosts the performance of storage devices and USB peripherals, optimizing data transfer speeds. Core Boost:
Premium layout and fully digital power design support more cores, providing better performance and stability during intensive tasks. The MSI B450M-A PRO MAX II is not just a motherboard; it's a sophisticated computing solution that brings together innovative features and reliable performance.
| Specification | Details |
|---|---|
| Model | B450M-A PRO MAX II |
| Chipset | AMD B450 |
| CPU SUPPORT | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, |
| 2000 G-Series, and 1000 Series Desktop Processors, Athlon™ with Radeon™ Vega Graphics desktop processors | |
| Socket | AM4 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133 MHz (by A-XMP OC MODE) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Onboard Graphics | 1x HDMI™ - Support HDMITM 1.4, maximum resolution of 4K 24Hz* |
| 1x DVI - Support DVI-D, maximum resolution of 1920x1200 60Hz | |
| Expansion Slots | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) | |
| Storage | 1x M.2 - M.2_1 Source (From CPU) supports up to PCIe 3.0 x4/SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | Realtek® 8125 2.5Gbps LAN controller |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | Various connectors for power, fans, front panel, audio, USB, etc. |

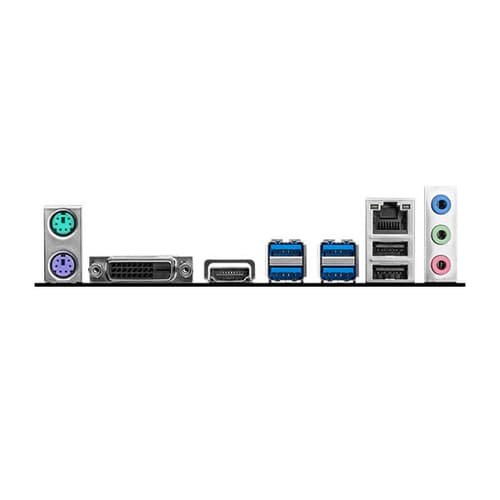

| Back Panel Ports | Keyboard/Mouse |
| DVI-D | |
| HDMI™ | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| 2.5G LAN | |
| Audio connectors | |
| USB 2.0 | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX |
| 200mmx236mm | |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice.*** |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | B450 |
| Memory Type | DDR4 |
| Socket Support | AM4 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
