the features listed:
AMD AM4 Socket: This indicates the type of socket on the motherboard, specifically designed for AMD processors compatible with the AM4 socket.
2 DIMMs, Supports DDR4 3200+(OC): This means the motherboard has two DIMM slots for DDR4 RAM modules. It supports DDR4 RAM with a maximum frequency of 3200MHz, and it can support higher frequencies when overclocked (hence the "+(OC)" designation).
1 PCIe 3.0 x16, 1 PCIe 2.0 x1: These are expansion slots for adding additional components such as graphics cards, network cards, or sound cards. The numbers indicate the type of PCIe slot and its size (x16, x1), as well as the version (3.0, 2.0), which determines the bandwidth.
Graphics Output: HDMI, DVI-D, D-Sub: These are the types of ports available for connecting displays to the motherboard. HDMI, DVI-D, and D-Sub (VGA) are common types of video output ports.
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps: This refers to the audio capabilities of the motherboard. It supports 7.1 channel high-definition audio, powered by the Realtek ALC887 audio codec. Additionally, it uses ELNA Audio Caps, which are capacitors known for their high-quality audio performance.
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3): These are storage options available on the motherboard. It has four SATA3 ports for connecting traditional SATA hard drives or SSDs. Additionally, it has an Ultra M.2 slot that supports both PCIe Gen3 x4 and SATA3 interfaces, allowing for high-speed NVMe SSDs or M.2 SATA SSDs.
6 USB 3.1 Gen1 (2 Front, 4 Rear): These are the USB ports available on the motherboard. It has six USB 3.1 Gen1 ports, with two located at the front of the case and four at the rear.
Realtek Gigabit LAN: This indicates the network interface controller (NIC) used for Ethernet connectivity, provided by Realtek, supporting Gigabit Ethernet speeds.
Actual support may vary by CPU: This note indicates that the support for certain features (such as overclocking and PCIe lanes) may vary depending on the specific CPU installed in the motherboard.
Specifications
| Unique Feature |
ASRock Super Alloy
- High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - AMD AM4 Socket - 6 Power Phase design - Supports CPU up to 105W |
| Chipset | - AMD Promontory B450 |
| Memory |
- Dual Channel DDR4 Memory Technology **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)* *Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. |

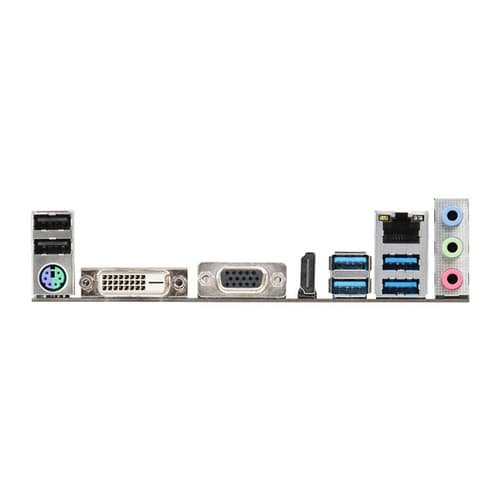

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software
- ASRock A-Tuning - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
|
Hardware Monitor
|
- CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design |
|
OS
|
Microsoft® Windows® 10 64-bit |
|
Certifications
|
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note |
Unique Feature***Features, Price and Specifications are subject to change without notice.
|
