The features listed pertain to a GIGABYTE motherboard, likely from the 400-series, designed to support AMD Ryzen processors. Here's a breakdown of the key features:
Processor Support: Supports AMD Ryzen™ 2nd Generation, Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics, and Ryzen™ 1st Generation Processors.
Memory: Supports Dual Channel Non-ECC Unbuffered DDR4 memory with 4 DIMM slots.
Wi-Fi and Bluetooth: Equipped with Intel® Dual Band 802.11ac Wi-Fi and Bluetooth 4.2 for fast wireless connectivity.
Storage: Features an Ultra-Fast PCIe Gen3 x4 M.2 slot with support for PCIe NVMe and SATA modes, providing high-speed storage options.
Audio: Incorporates High-Quality Audio Capacitors and Audio Noise Guard Design for superior audio performance.
RGB Fusion 2.0: Offers advanced RGB lighting customization with support for Addressable RGB and RGB LED strips.
LAN: Utilizes Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software for optimized network performance.
Smart Fan 5: Includes 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP feature for efficient cooling.
APP Center: Provides various utilities including EasyTune™ and Cloud Station™ for system management.
CEC 2019 Ready: Supports power-saving features compliant with the California Energy Commission 2019 requirements.
AMD StoreMI Technology: Enhances storage performance by accelerating traditional storage devices, combining the speed of SSDs with the capacity of HDDs.
Connectivity: Offers faster and better coverage with Intel Dual Band 802.11ac Wi-Fi and BT 4.2 module.
Fast Onboard Storage with NVMe: Features PCIe Gen3 x4 110mm M.2 slot for high-speed storage devices.
Cooling: Includes Smart Fan 5 with intelligent fan control design for efficient cooling.
VR Gaming Experience: Supports immersive VR gaming experience with recommended configurations.
Lighting: Provides RGB Fusion 2.0 with Digital LEDs support for customizable lighting effects.
High-Quality Onboard Audio Design: Delivers high-resolution sound effects for professional gamers.
Ultra Durable: Features solid pin power connectors and ion protection for enhanced durability.
BIOS & Applications: Offers a refreshed BIOS and easy access to GIGABYTE apps through the APP Center.
4K Ultra HD Support: Provides native 4K support via HDMI for high-definition content delivery.
HDMI™: Supports HDMI™ for superior uncompressed digital video and audio transmission.

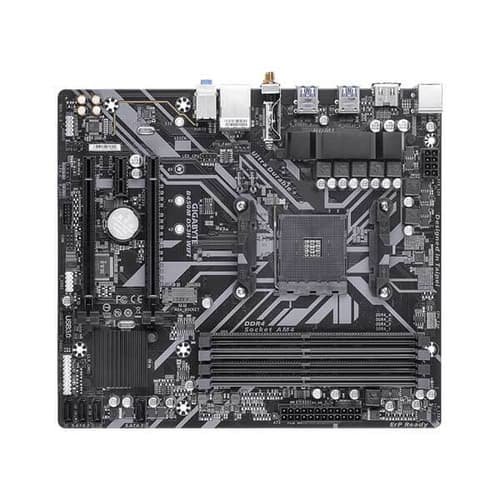

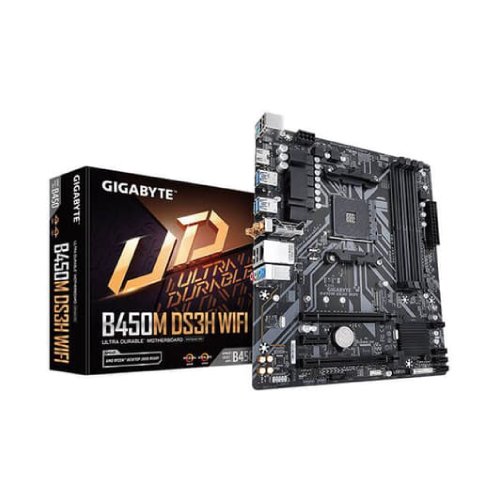

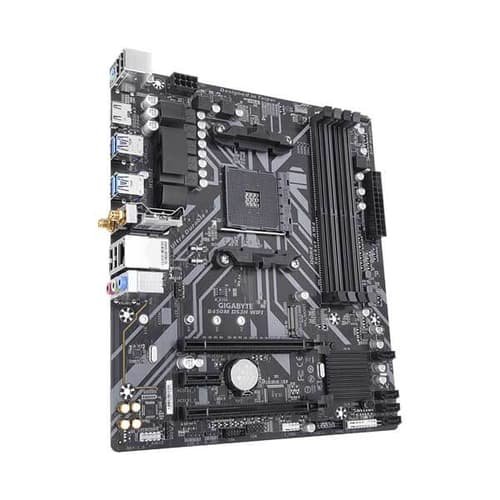

GIGABYTE B450M-DS3H-WIFI Specifications
| Specifications | Details |
|---|---|
| Model | B450M-DS3H-WIFI |
| CPU | - AM4 Socket: AMD Ryzen™ 2nd Generation processors, AMD Ryzen™ with Radeon™ Vega Graphics processors, AMD Athlon™ with Radeon™ Vega Graphics processors, AMD Ryzen™ 1st Generation processors |
| Chipset | AMD B450 |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory - Dual channel memory architecture - Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | - Integrated Graphics Processor - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.0 version and HDCP 2.2) - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.0 version and HDCP 2.2) |
| Audio | - Realtek® ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | - 1 x PCI Express x16 slot, running at x16 (PCIEX16) - 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) - 1 x PCI Express x1 slot |
| Storage Interface | - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 10 |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| USB | - CPU: 4 x USB 3.1 Gen 1 ports on the back panel - Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 Socket 3 connector - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x S/PDIF Out header - 1 x CPU cooler LED strip/RGB LED strip header - 1 x RGB LED strip header - 2 x addressable LED strip headers - 1 x USB 3.1 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) - 1 x serial port header - 1 x Clear CMOS jumper |

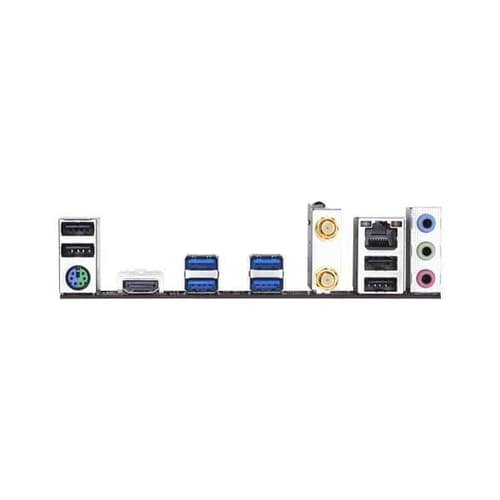

| Back Panel Connectors | - 1 x PS/2 keyboard/mouse port - 4 x USB 3.1 Gen 1 ports - 4 x USB 2.0/1.1 ports - 2 x SMA antenna connectors (1T1R) - 1 x RJ-45 port - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control |
| BIOS | - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS |
| Unique Features | - Support for APP Center - @BIOS - 3D OSD AutoGreen - Cloud Station - EasyTune - Fast Boot - Game Boost - ON/OFF Charge - RGB Fusion - Smart Backup - Smart Keyboard - Smart TimeLock - Smart HUD - Smart Survey - System Information Viewer - USB Blocker - Support for Q-Flash - Support for Xpress Install |
| Bundle Software | - Norton® Internet Security (OEM version) - cFosSpeed |
| Operating System | - Support for Windows 10 64-bit - Support for Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.) |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price, and Specifications are subject to change without notice. |
Motherboard
| Brand | GIGABYTE |
| Stock Status | IN STOCK |
| Chipset | B450 |
| Memory Type | DDR5 |
| Socket Support | AM4 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
