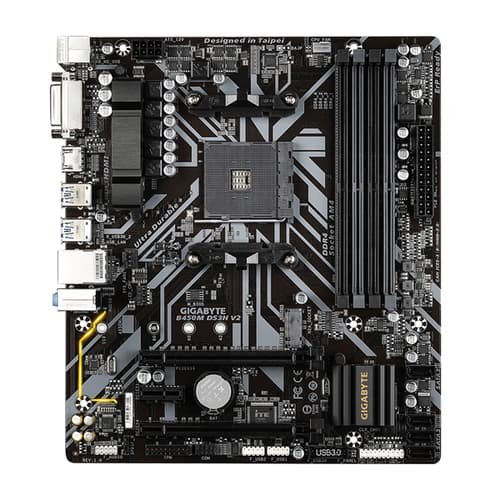

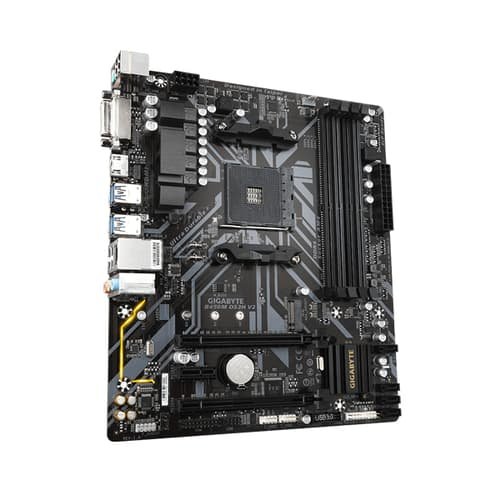

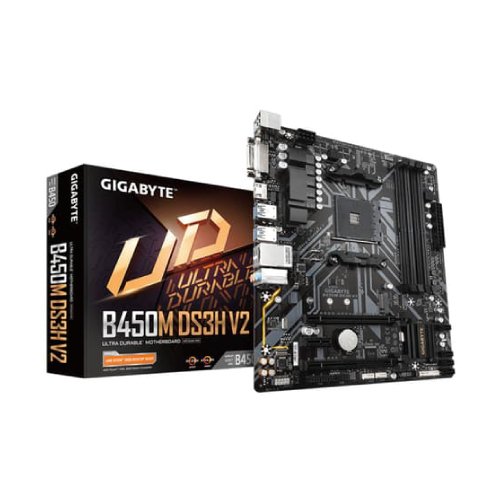

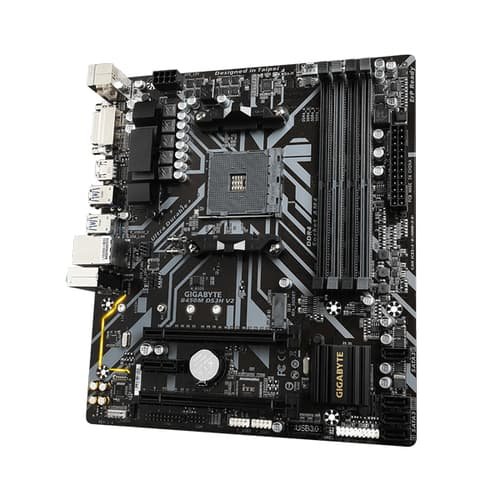

Features of the AMD B450 Ultra Durable Motherboard
Processor Compatibility:
The motherboard supports a broad range of AMD processors, including the latest Ryzen™ 5000 series, as well as 3rd Gen, 2nd Gen, and 1st Gen Ryzen™ processors. It also supports Ryzen™ processors with Radeon™ Vega Graphics and Athlon™ processors with Radeon™ Vega Graphics, ensuring versatile CPU compatibility for various computing needs.
Memory Support:
With support for Dual Channel Non-ECC Unbuffered DDR4 memory and four DIMM slots, the motherboard allows for flexible and high-performance memory configurations. This setup is ideal for enhancing multitasking capabilities and overall system performance.
Digital VRM Solution:
The motherboard features a Digital VRM Solution equipped with Low RDS(on) MOSFETs. This advanced design ensures stable and efficient power delivery to the CPU, optimizing performance and system stability, especially under heavy workloads.
Multiple Display Connectivity:
Offering both HDMI and DVI-D ports, the motherboard provides flexibility for connecting multiple displays simultaneously. This feature is perfect for users who require multi-monitor setups for enhanced productivity, gaming, or media consumption.
Ultra-Fast Storage:
The motherboard includes an Ultra-Fast PCIe Gen3 x4 M.2 slot that supports both PCIe NVMe and SATA modes. This ensures high-speed storage solutions, significantly improving data transfer rates and overall system responsiveness.
Audio Quality:
Equipped with high-quality audio capacitors and an audio noise guard with LED trace path lighting, the motherboard delivers superior audio fidelity with minimal interference. This ensures an immersive and high-quality audio experience for gaming, music, and multimedia.
Networking:
Featuring GIGABYTE Exclusive 8118 Gaming LAN with bandwidth management, the motherboard ensures smooth and lag-free network connectivity. This is particularly beneficial for online gaming, streaming, and other bandwidth-intensive activities.
RGB Lighting:
With RGB Fusion technology, the motherboard supports RGB LED strips in seven colors, allowing users to customize their system's lighting effects. This feature enables personalized aesthetics and can sync with other RGB components for a cohesive look.
Smart Fan Control:
Smart Fan 5 technology includes five temperature sensors and two hybrid fan headers with FAN STOP functionality. This intelligent cooling solution allows for efficient and customizable cooling, ensuring optimal system temperatures and reduced noise levels.
Utility Software:
The APP Center provides a suite of utilities, such as EasyTune™ for system tuning and optimization, and Cloud Station™ for remote access and control. These tools enhance user experience by simplifying system management and performance tweaking.
Energy Efficiency:
The motherboard is CEC 2019 Ready, offering energy-saving capabilities that can be activated with a simple click. This certification ensures reduced power consumption and environmental impact, promoting energy efficiency and sustainability.
Overall, the AMD B450 Ultra Durable Motherboard combines robust performance, versatile connectivity, and advanced features to cater to a wide range of users, from gamers and enthusiasts to professionals and everyday users.
| Specifications | Details |
|---|---|
| CPU | AM4 Socket: Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz (* The DVI-D port does not support D-Sub connection by adapter.) 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (* Support for HDMI 2.0 version and HDCP 2.2.) Maximum shared memory of 16 GB (Note) Actual support may vary by CPU. |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU. |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) (* Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 (* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.) |
| USB | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

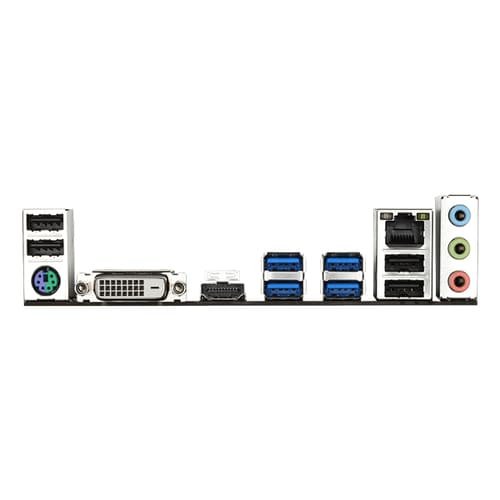

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control (* Whether the fan speed control function is supported will depend on the cooler you install.) |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center (* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Motherboard
| Brand | GIGABYTE |
| Chipset | B450 |
| Memory Type | DDR4 |
| Socket Support | AM4 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
