This motherboard offers a range of features designed to enhance performance, connectivity, and aesthetics:
AMD B450 Chipset: Designed for Ryzen AM4 processors, this micro ATX motherboard supports the latest AMD platform, providing compatibility with a wide range of Ryzen CPUs.

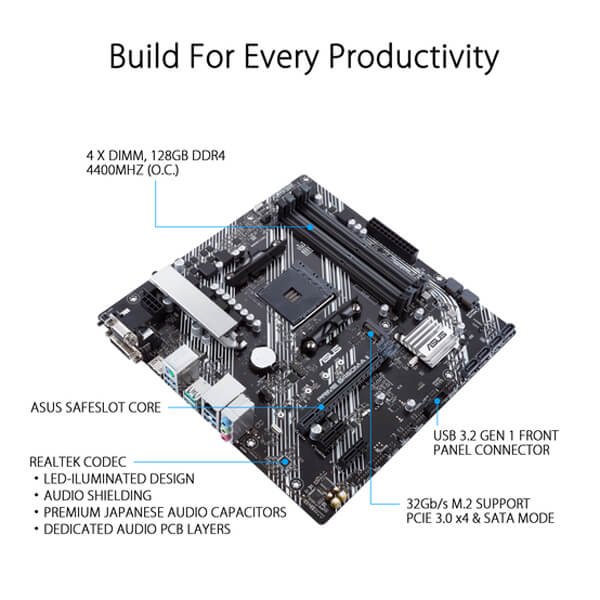

M.2 Support: The motherboard supports M.2 SSDs, allowing for high-speed data transfer and storage solutions that take advantage of the latest storage technology.

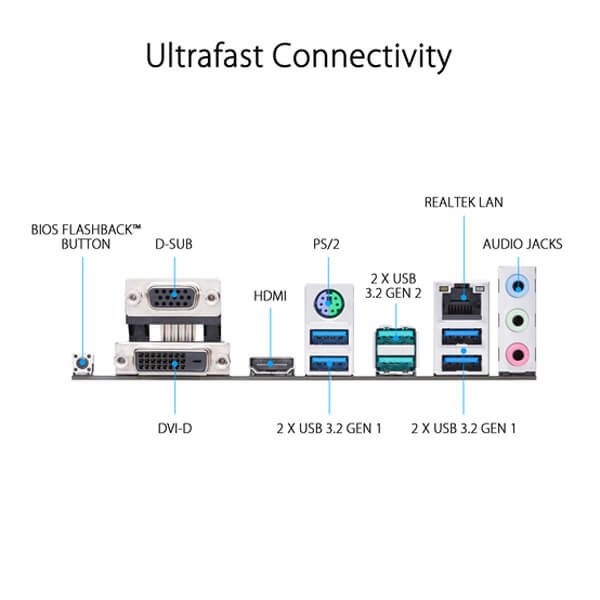

Multiple Display Outputs: With HDMI, DVI-D, and D-Sub ports, users can connect a variety of displays, offering flexibility in setup and configuration.
SATA 6 Gbps: The motherboard supports SATA 6 Gbps for fast and reliable data transfer to and from storage devices.
1 Gb Ethernet: Equipped with a Gigabit Ethernet port, users can enjoy high-speed networking capabilities for online gaming, streaming, and other network-intensive tasks.
USB 3.2 Gen 2 Type-A: Featuring USB 3.2 Gen 2 Type-A ports, users can benefit from ultrafast data transfer speeds, ideal for external storage devices and peripherals.
BIOS FlashBack™: This feature allows users to update the BIOS firmware easily, ensuring compatibility with the latest processors and hardware.
Aura Sync RGB Lighting Support: The motherboard supports Aura Sync RGB lighting, allowing users to customize and synchronize RGB lighting effects across compatible components and peripherals for a cohesive and visually stunning setup.

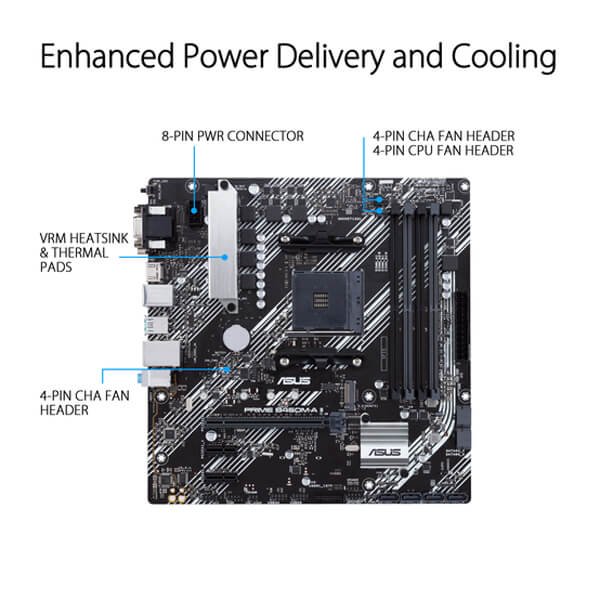

Comprehensive Cooling: The motherboard features VRM and PCH heatsinks to dissipate heat efficiently, ensuring stable performance even under heavy loads. Fan Xpert 2+ provides advanced fan control for optimized cooling performance.
5X Protection III: With multiple hardware safeguards, including overvoltage protection and circuit-protecting power design, the motherboard offers all-around system protection, enhancing reliability and durability.
Overall, these features combine to provide users with a versatile and high-performance motherboard solution, suitable for a variety of computing needs, from gaming to content creation.
| Specification | Details |
|---|---|
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | - 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| - Dual Channel Memory Architecture | |
| - ECC Memory (ECC mode) support varies by CPU | |
| Graphic | - Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors |
| - 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.0b | |
| Expansion Slots | - 1 x PCIe 3.0 x16 (x16 mode) for 3rd/2nd/1st Gen AMD Ryzen™ Processors |
| - 1 x PCIe 3.0 x16 (x8 mode) for 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors | |
| - 1 x PCIe 3.0 x16 (x4 mode) for AMD Athlon™ with Radeon™ Vega Graphics Processors | |
| - 2 x PCIe 2.0 x1 | |
| Storage | - Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
| - M.2 Support: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
