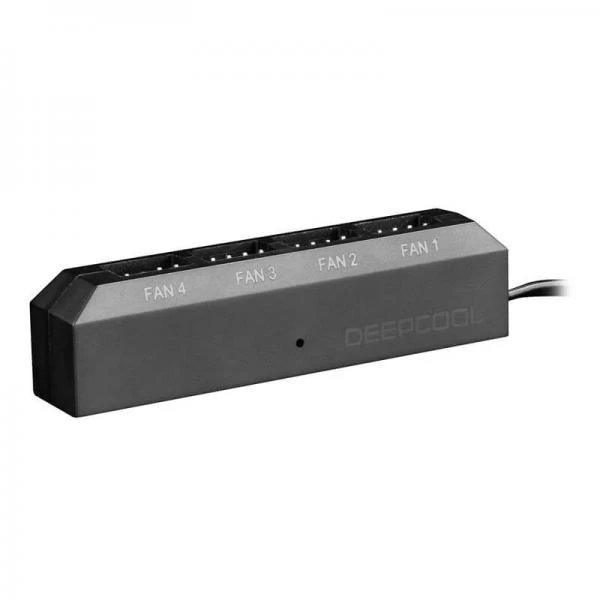

The Deepcool FH-04 is a fan hub designed to help users manage and control multiple case fans efficiently. Here are some key features and information about the Deepcool FH-04:
The FH-04 is designed to provide additional fan headers for users who need to connect more fans than their motherboard supports directly.
The FH-04 typically has four fan ports, allowing users to connect up to four case fans to a single hub.
It often requires a SATA power connection from the power supply unit (PSU) to provide sufficient power to all connected fans.
The FH-04 usually supports PWM (Pulse Width Modulation) control, allowing users to adjust fan speeds dynamically.
It is compatible with both 3-pin and 4-pin fans, making it versatile for various fan types.
The installation of FH-04 is very smooth with the help of double-sided adhesive provided with it.
| Specification | Value |
|---|---|
| Model | DP-F04PWM-HUB |
| Product Dimension | 68×13×17.5 mm |
| Net Weight | 22 g |
| Port Type | 4-pin×1 |
| Extension Port | 4-pin×4 |
| Length of HUB Strip Cable | 550 mm |
| Mounting Method | Double-faced Adhesive |
| Warranty | 1 Year |
