Lambda A++ Certification: This certification indicates that the Thor PSU is exceptionally quiet while delivering powerful performance.
ROG Heatsinks: These heatsinks cover critical components, ensuring lower temperatures and reduced noise levels, which is essential for maintaining optimal performance and longevity.
135mm Axial-tech Fan with PWM Control: The fan is designed for quieter operation and effective thermal management, thanks to its PWM control feature.
Built with Low-ESR Capacitors: The PSU is constructed with low-equivalent series resistance (ESR) capacitors and other premium components, enabling it to achieve an 80 Plus Platinum Certification, signifying high efficiency.
OLED Display: The built-in OLED display allows users to monitor power draw in real-time, providing valuable information for system optimization.
Aura Sync Compatibility: This feature enables users to customize and synchronize lighting effects with other compatible hardware, enhancing the visual aesthetics of their setup.
Quietest 1000W Power Supply: The second iteration of the ROG Thor 1000W Platinum PSU boasts cooling and component upgrades, making it the quietest PSU in its class.
Dual Ball Fan Bearings: The fan utilizes a dual ball bearing setup, ensuring durability and longevity compared to sleeve bearing designs.
0dB Technology: The PWM-controlled fan can shut off entirely when the PSU load is 50% or below, reducing noise output significantly.
Sleeved Cables: The PSU comes with a range of sleeved cables, enhancing cable management and aesthetics. Additionally, a 20% CableMod discount is provided.
PCIe Gen 5.0 Ready: The PSU includes a 16-pin PCIe cable capable of delivering up to 600W of power to PCIe Gen 5.0 graphics cards, ensuring compatibility with future hardware.
10-year Warranty: The ROG Thor 1000W Platinum II is backed by a 10-year warranty, providing users with peace of mind regarding its durability and reliability.
| Specification | Details | ||||
|---|---|---|---|---|---|

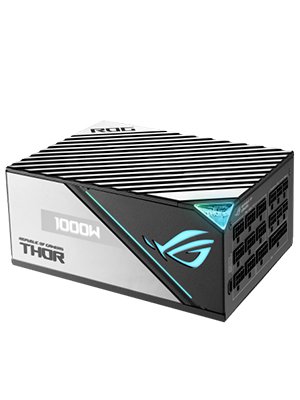

| Model | ROG-THOR-1000P2-GAMING | ||||
| Dimensions | 190 x 150 x 86 mm | ||||
| Efficiency | 80Plus Platinum | ||||
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP | ||||
| Hazardous Materials | ROHS | ||||
| AC Input Range | 100-240Vac | ||||
| Thermal Features | ROG Thermal Solution | ||||
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb | ||||
| Maximum Load | 25A 25A 83A 0.3A 3A | ||||
| Combined Load | 125W 125W 996W 3.6W 15W | ||||
| Total Output | 1000W | ||||
| Connectors | MB 24/20-pin x 1 | ||||
| CPU 4+4-pin x 2 | |||||
