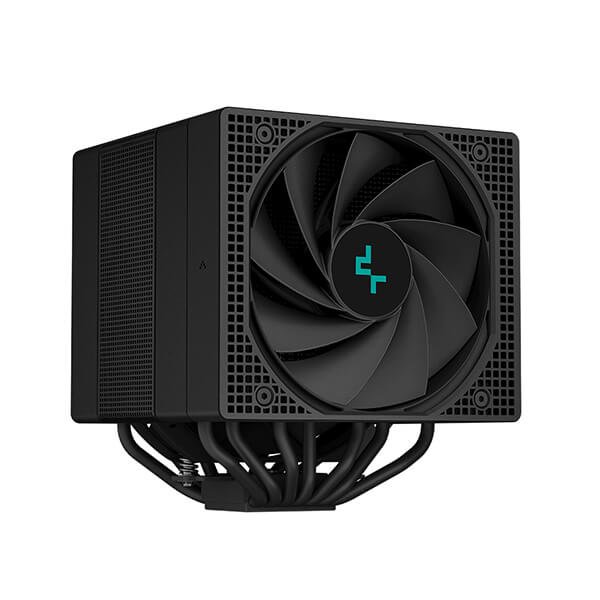

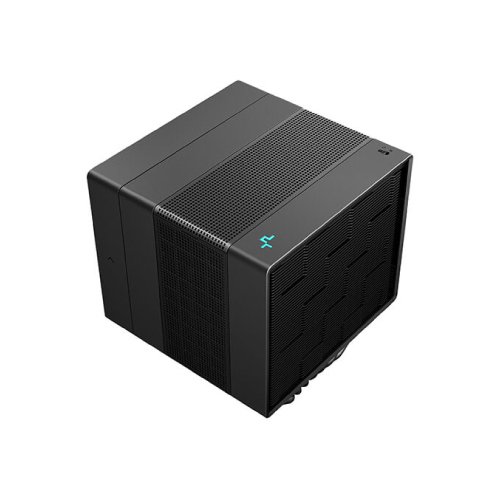

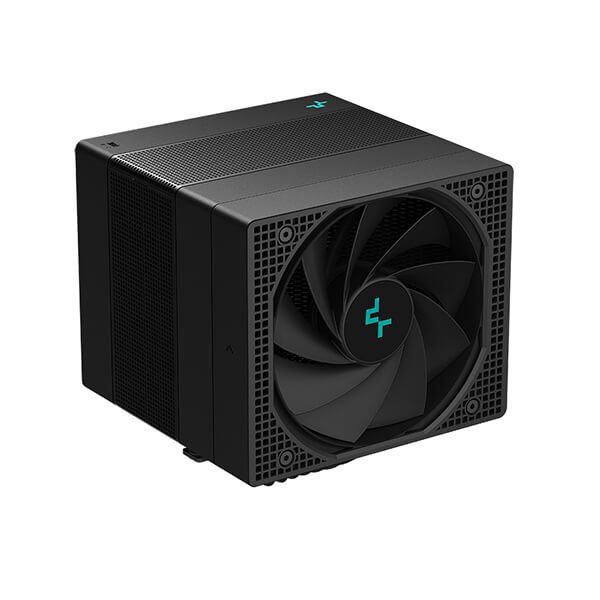

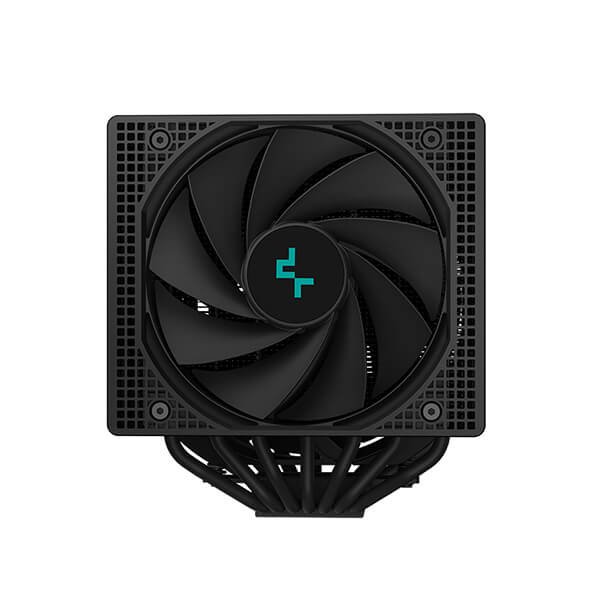

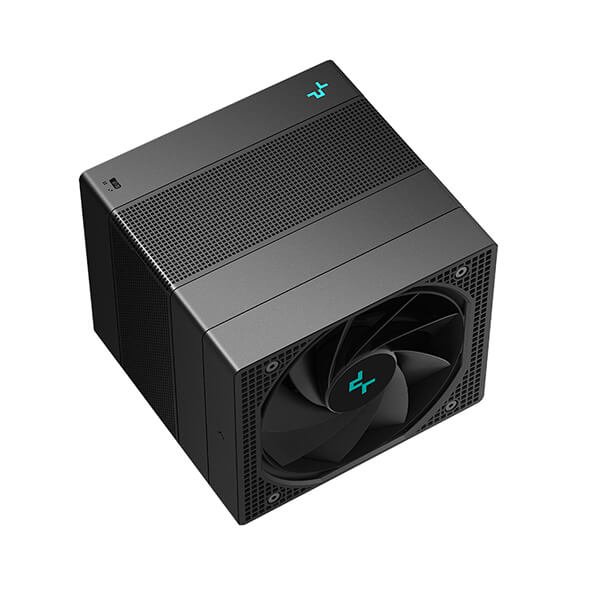

The Deepcool Assassin IV is a dual-tower CPU air cooler designed for high-performance cooling. Here are some crucial features and specifications regarding the Deepcool Assassin IV CPU Air cooler:
The cooler features two heatsink towers, which typically house a combination of heat pipes and aluminium fins to dissipate heat effectively.
It likely utilizes multiple heat pipes to transfer heat from the CPU to the heatsinks. The number and diameter of these pipes can impact the cooler's overall efficiency.
The Assassin IV comes with a fan, usually placed between the dual towers. The fans are responsible for actively cooling the heatsinks.
The cooler may feature large-diameter fans for efficient airflow. The fan speed, measured in revolutions per minute (RPM), can influence cooling performance and noise levels.
It should be compatible with various CPU sockets, such as Intel's LGA and AMD's AM series.
Given that it's a dual-tower cooler, it tends to be larger and heavier compared to single-tower coolers. It's important to ensure that your computer case can accommodate its size.

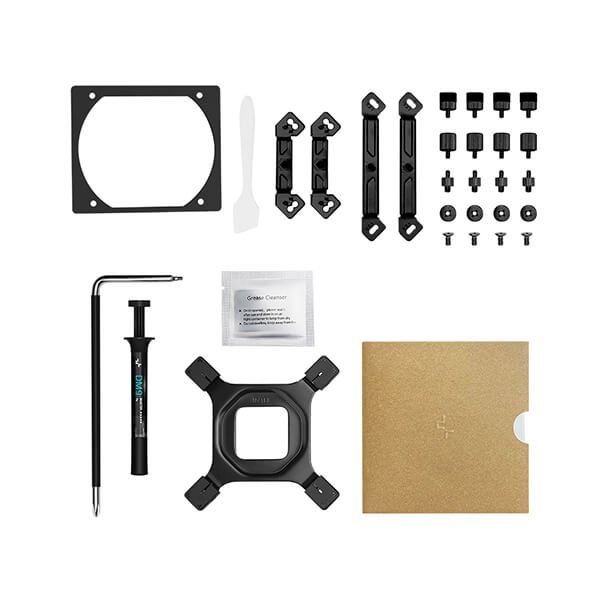

The Assassin IV has a reliable and secure mounting mechanism for easy installation on compatible motherboards.
Deepcool designed this cooler to provide efficient cooling for high-profile RGB RAM, making it suitable for gaming and other demanding tasks.
| Specification | Value |
|---|---|
| Model | ASSASSIN IV |
| P/N | R-ASN4-BKNNMT-G |
| Application For |
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD: AM5/AM4 |
| Product Dimensions | 144×147×164 mm(L×W×H) |
| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1575 g |
| Heatpipe | Ø6 mm×7 pcs |

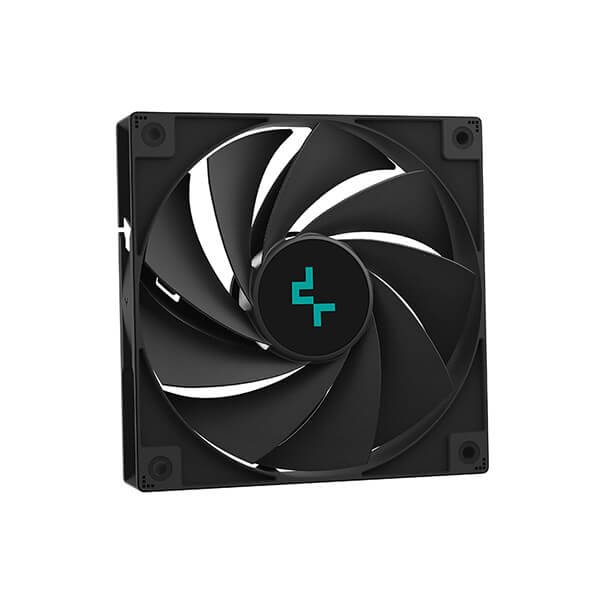

| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 79.1 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 2.44 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 63.76 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 1.58 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A / 0.07 A |
| Fan Power Consumption | 1.2 W / 0.84 W |
| Rated Voltage | 12 VDC |
| Power Consumption(Performance Mode) | 2.88 W |
| Power Consumption(Quiet Mode) | 1.56 W |
| Warranty | 5 Years |
