The Antec P12 PWM is a 120mm high-performance case fan designed to deliver efficient airflow with quiet operation, making it an ideal cooling solution for gaming PCs, workstations, and general-purpose builds. Whether used as an intake or exhaust fan, the P12 PWM combines durability, consistent airflow, and precise speed control through PWM technology to optimize system cooling without unnecessary noise.
Engineered for longevity and stability, the fan features a hydraulic bearing design that reduces friction and extends lifespan. With a sleek black finish and streamlined blade design, the Antec P12 PWM balances aesthetics with functionality, ensuring your system stays cool and quiet even under heavy load.
Key Features
PWM Speed Control
The 4-pin PWM connector allows motherboard-controlled fan speed adjustment, providing dynamic cooling that adapts to system temperature for optimal performance and reduced noise.
Optimized Fan Blade Design
Specially designed fan blades ensure high static pressure and airflow, making the P12 PWM suitable for both airflow-intensive cases and radiator cooling applications.

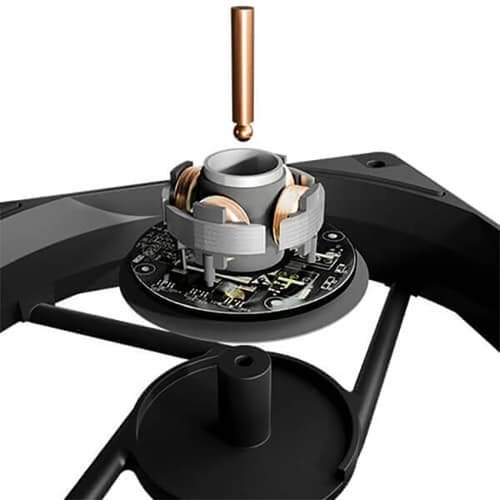

Quiet Hydraulic Bearing
Equipped with a long-life hydraulic bearing, the fan operates smoothly and quietly, minimizing noise while maintaining consistent performance.
Anti-Vibration Mounting Corners
Rubber pads on all four corners help absorb vibrations, reducing noise levels and providing stable, quiet operation even at higher speeds.
Durable Build Quality
Built with quality materials, the P12 PWM is designed for long-term reliability and performance, supporting continuous operation in demanding PC environments.
Universal 120mm Size
Fits all standard 120mm fan mounts, making it a flexible choice for front, top, rear, or bottom fan placements in most mid-tower and full-tower cases.
Technical Specifications
| Specification | Value |
|---|---|
| Model Name | Antec P12 PWM |
| Fan Size | 120mm x 120mm x 25mm |
| Connector Type | 4-pin PWM |
| Bearing Type | Hydraulic Bearing |
| Fan Speed Range | 600 – 1500 RPM ±10% |
| Airflow | Up to 68.5 CFM |
| Static Pressure | Up to 1.83 mmH₂O |
| Noise Level | 25.2 dBA (Max) |
| Voltage Range | DC 12V |
| Rated Current | 0.18A |
| Power Consumption | 2.16W |
| MTBF (Life Expectancy) | ≥ 40,000 hours at 25°C |
| Number of Blades | 9 |
| Anti-Vibration Pads | Yes (4 corners) |
| Fan Frame Color | Matte Black |
| LED Lighting | None |
| Compatibility | 120mm Radiator / Case Mounts |
| Weight | Approx. 130g |
| Warranty | 2 Years (Varies by region) |
