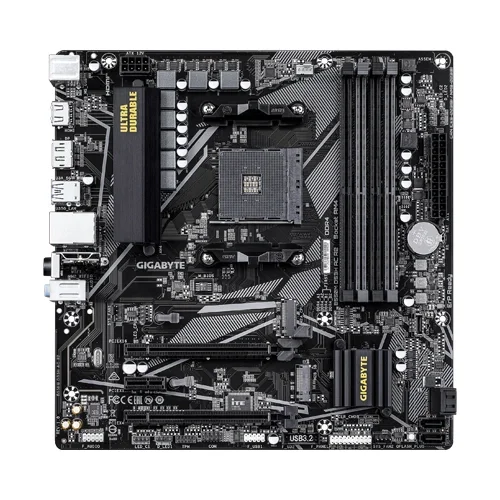

AMD B550 Ultra Durable Motherboard Features
The AMD B550 Ultra Durable Motherboard is meticulously designed to deliver high performance, stability, and reliability for both gaming enthusiasts and professional users. Below are the detailed features that set it apart:
Pure Digital VRM Solution
The motherboard boasts a Pure Digital Voltage Regulation Module (VRM) solution, which ensures consistent and stable power delivery to the CPU. This translates to optimal performance and reliability, particularly during intensive tasks.
PCIe 4.0 x16 Slot
Equipped with a PCIe 4.0 x16 slot, this motherboard supports the latest high-speed graphics cards and other PCIe 4.0 devices, offering unparalleled performance and future-proofing your system.
Dual PCIe 4.0/3.0 M.2 Connectors
With dual PCIe 4.0 and PCIe 3.0 M.2 connectors, the motherboard provides flexibility for ultra-fast storage solutions. This setup allows for superior data transfer rates and improved system responsiveness.
Intel® Dual Band 802.11ac WIFI
The integrated Intel® Dual Band 802.11ac WIFI module ensures high-speed wireless connectivity, essential for seamless online gaming, streaming, and other bandwidth-intensive activities.
GIGABYTE 8118 Gaming LAN
Featuring GIGABYTE's exclusive 8118 Gaming LAN with advanced bandwidth management, this motherboard guarantees smooth and stable network performance, crucial for gaming and online communications.
Smart Fan 5 with FAN STOP
Smart Fan 5 technology provides customizable fan controls with features like FAN STOP, which helps minimize noise while maximizing cooling efficiency. This ensures your system remains cool and quiet under various load conditions.
RGB FUSION 2.0
RGB FUSION 2.0 technology supports both addressable LED and RGB LED strips, allowing users to personalize their system’s lighting effects. This feature enables synchronization with other RGB components, creating a visually cohesive and aesthetically pleasing setup.
Processor Compatibility
The motherboard is compatible with the latest AMD Ryzen™ processors, including the 5000 Series and 3rd Gen Ryzen™ with Radeon™ Graphics Processors. This ensures powerful computing performance for demanding applications and gaming.
Dual Channel ECC/Non-ECC Unbuffered DDR4
Supporting both ECC and non-ECC unbuffered DDR4 memory modules, the motherboard offers flexible memory configurations that enhance system stability and reliability, which is especially beneficial for professional applications.
5+3 Phases Pure Digital VRM Solution
Featuring a 5+3 phases pure digital VRM solution with Low RDS(on) MOSFETs, this motherboard ensures efficient power delivery. This setup is particularly advantageous for overclocking, providing the stability needed for pushing your system to its limits.
Ultra Durable™ PCIe 4.0 Ready x16 Slot
The Ultra Durable™ PCIe 4.0 ready x16 slot guarantees compatibility with the latest graphics cards, offering high bandwidth and reliability essential for gaming and content creation.
Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2
In addition to wired LAN, the motherboard includes onboard Intel® Dual Band 802.11ac Wireless and Bluetooth 4.2, providing versatile wireless connectivity options.
High-Quality Audio Capacitors and Audio Noise Guard
Equipped with high-quality audio capacitors and an audio noise guard design, this motherboard delivers superior audio fidelity with minimal interference. This ensures an immersive audio experience for gaming and multimedia.
Rear HDMI & DVI Support
The motherboard features rear HDMI and DVI ports, providing multiple connectivity options for high-resolution displays. This flexibility supports a wide range of monitor configurations.
Q-Flash Plus
Q-Flash Plus allows users to update the BIOS without the need to install the CPU, memory, or graphics card. This feature simplifies the BIOS update process, ensuring that your system is always up-to-date with the latest firmware.
Anti-Sulfur Resistors Design
The anti-sulfur resistors design protects the motherboard from sulfur compounds in the air, enhancing long-term durability and reliability. This design feature ensures the motherboard remains functional even in challenging environments.
Overall, the AMD B550 Ultra Durable Motherboard combines robust performance, versatile connectivity, and advanced features to cater to the needs of gamers, professionals, and everyday users alike.
Motherboard Specifications
| Category | Description |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Wireless Communication module | Intel® Wi-Fi AC 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
