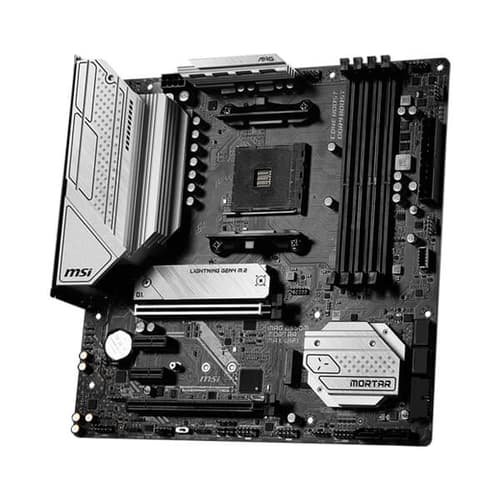

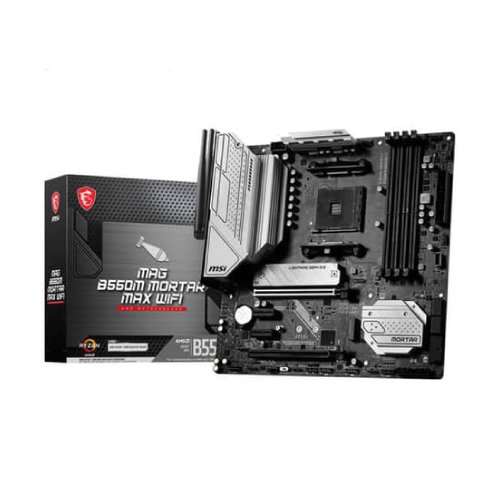

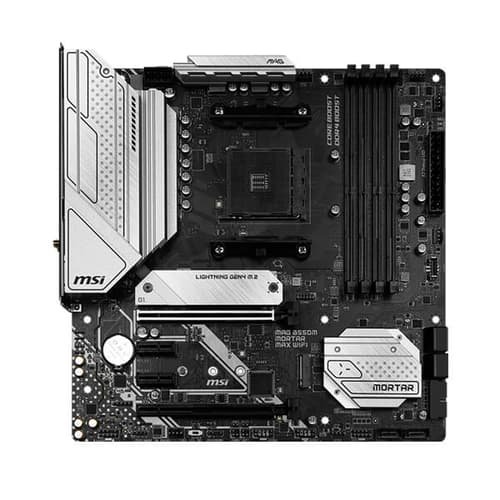

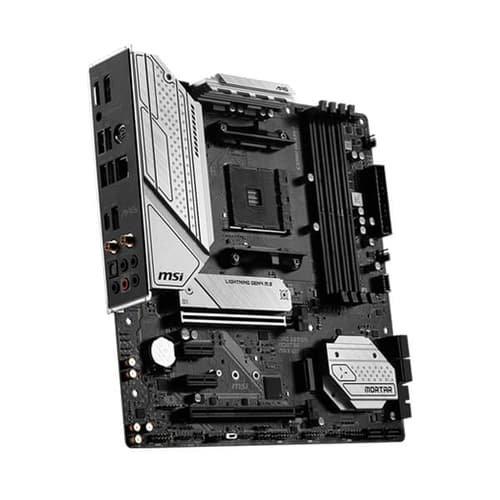

The MSI MAG B550M Mortar MAX WIFI motherboard is a Micro-ATX form factor motherboard designed for AMD Ryzen processors, particularly the AM4 socket. There are some special features of this MSI MAG B550M motherboard:
It is based on the AMD B550 chipset, which supports PCIe 4.0, providing faster data transfer speeds compared to previous generations.
It supports AMD Ryzen processors for AM4 sockets.
It supports DDR4 memory, with four DIMM slots allowing for a maximum of 128GB of RAM. It supports memory speeds of up to DDR4 4400MHz (OC).
The motherboard typically includes one PCIe 4.0 x16 slot for a graphics card and one or more PCIe 3.0 x1 slots for other expansion cards.
It provides multiple SATA III ports for traditional hard drives and SSDs, as well as M.2 slots for NVMe SSDs, enabling high-speed storage solutions.
It includes built-in Wi-Fi functionality, allowing for wireless connectivity.
It typically features high-quality onboard audio solutions with dedicated audio capacitors and audio shielding.
It offers a range of USB ports including USB 3.2 Gen 1 and Gen 2, as well as HDMI and DisplayPort outputs for integrated graphics support.
Many MSI motherboards, including the MAG series, come with customizable RGB lighting for aesthetic customization.
MSI motherboards are generally known for their solid build quality and reliability.
| Specifications | Value |
|---|---|
| Processor |
|
| Chipset | AMD B550 Chipset |
| Memory |
|
| Expansion Slot |
|
| Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
| Onboard Graphics |
|
| Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| RAID | AMD B550 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio | Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® | AMD® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5. |
| Internal connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |

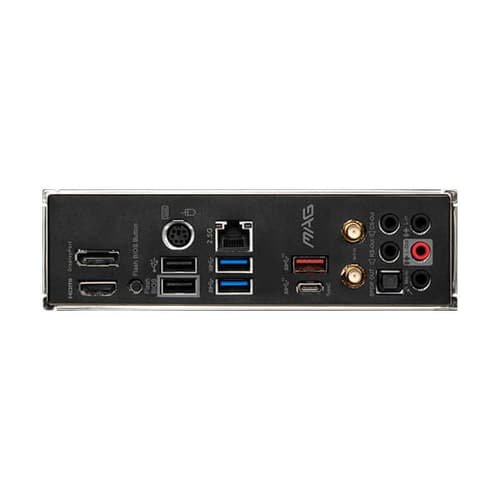

| Back panel ports | DisplayPort 1.4 PS/2 Combo Port 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port Flash BIOS Button USB 2.0 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT |
| Dimensions | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Mounting | 8 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
Motherboard
| Brand | MSI |
| Stock Status | IN STOCK |
| Chipset | B550 |
| Memory Type | DDR4 |
| Socket Support | AM4 |
| Form Factor | MICRO-ATX |
| Platform | AMD |
