The H590 TG ARGB mid-tower chassis is designed with several unique features that cater to both functionality and aesthetics:
Support for E-ATX Motherboards: The chassis supports up to E-ATX (12" x 13") Motherboards, offering ample space for high-performance builds.

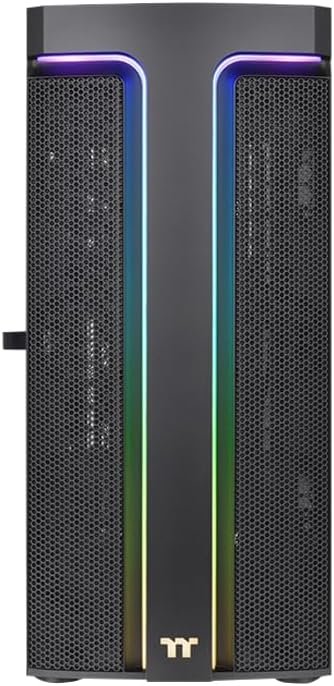

Unique Front Panel Design: The front panel of the H590 TG ARGB chassis features two RGB lighting strips arranged around a T-shaped pillar, creating an eye-catching aesthetic. These lighting effects can be controlled either through a physical RGB button on the I/O panel or via compatible motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Pre-installed Fans: This chassis comes with two pre-installed 120mm standard fans—one at the front and the other at the rear—to provide efficient cooling performance out of the box.
Built-in PSU Cover: A full-length power supply cover is integrated into the chassis, allowing users to neatly organize cables and maintain clear airflow for both hard drives and the PSU.

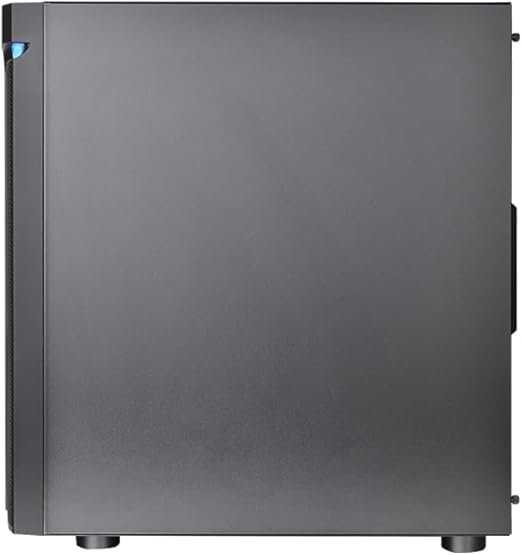

Hinged Tempered Glass Panel: The left side of the H590 TG ARGB chassis features a 4mm hinged tempered glass panel, offering durability, scratch resistance, and transparency for showcasing internal hardware components.
Dust Filtration: The chassis includes a magnetic filter positioned on the top panel to effectively prevent dust accumulation and maintain a clean interior environment.
Handy I/O Ports: Conveniently located on the top panel are two USB 3.0 ports, along with one HD Audio port and an RGB lighting control button, providing easy access for connecting peripherals and controlling lighting effects.
H590 TG ARGB Specifications
| Specification | Details |
|---|---|
| Part Number | CA-1X4-00M1WN-00 |
| Series | H Series |
| Model | H590 TG ARGB |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch) |
| Net Weight | 7.45 kg / 16.42 lbs. |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Front (intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 Rear (exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1, LED button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 140mm, 1 x 120mm Top: 3 x 120mm, 2 x 140mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 360mm PSU length limitation: 180mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Cabinet
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | ITX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| LED | ARGB |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
| Shipping Cost |
|
| Shop Location |
