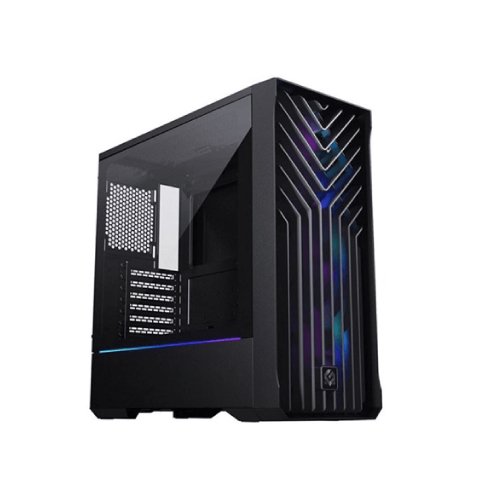

Form Factor: The chassis is designed as a mid-tower, offering a balance between size and functionality.
Motherboard Compatibility: It supports a wide range of motherboard form factors, including E-ATX, ATX, Micro ATX, and Mini ITX. This flexibility allows users to choose the motherboard size that best suits their build requirements.
Radiator Support: The case is capable of accommodating a 360mm radiator, providing users with the option to install powerful liquid cooling solutions for efficient CPU cooling. This support for large radiators enables enhanced thermal performance, particularly for high-performance systems.

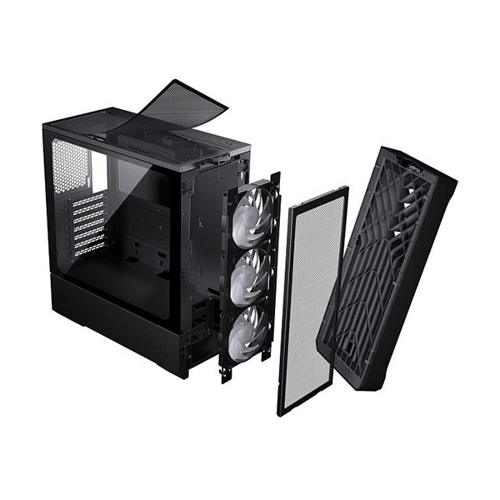

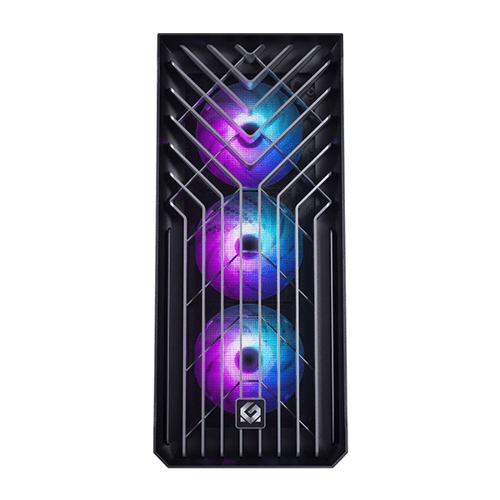

Pre-installed DRGB Fans: It comes with three 120mm DRGB fans pre-installed. These fans not only contribute to efficient airflow within the case but also add visual appeal with customizable lighting effects. The inclusion of DRGB fans allows users to create a personalized aesthetic for their build.

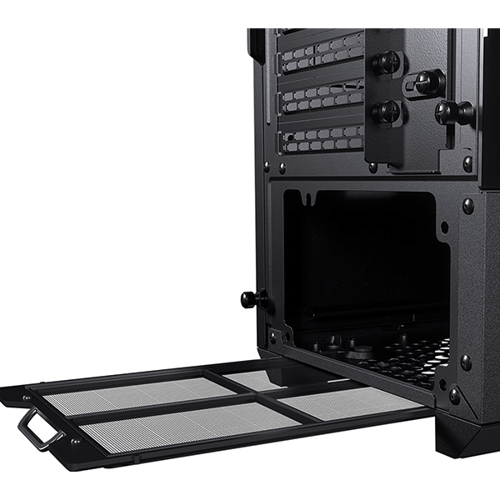

Dust Filters: The chassis features dust filters located at the front, top, and bottom to prevent dust buildup inside the case. These filters help maintain clean airflow and protect internal components from dust accumulation, ensuring optimal performance and longevity of the hardware.

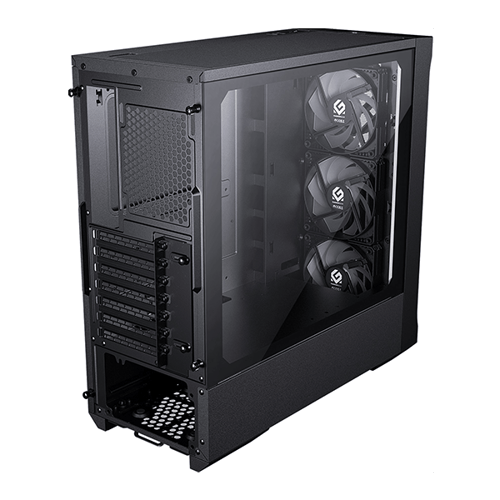

Overall, the Phanteks Magnum Gear Neo Air 2 Black offers a combination of airflow optimization, radiator support, pre-installed DRGB fans, and dust filtration, making it a suitable choice for users seeking a versatile and high-performance mid-tower chassis for their PC builds.
Magnum Gear Neo Air 2 Specifications
| Specification | Details |
|---|---|
| Model | Magnum Gear Neo Air 2 |
| P/N | MG-NE523A-DBK06 |
| Color | Black |
| Materials | Steel Chassis |
| Side Panel | Tempered Glass |

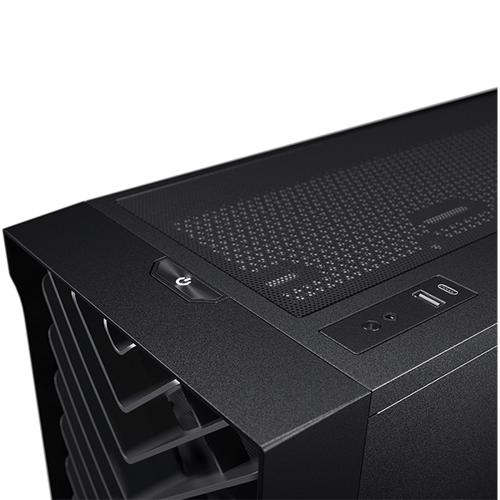

| I/O Ports | 1x USB 3.0 Type-A 1x USB 3.0 Type-C Microphone / Headphone D-RGB (Addressable) control (Mode & Color Button) Power Button Reset Button |
| Motherboard Support | Mini-ITX Micro-ATX ATX E-ATX (up to 280mm wide) |

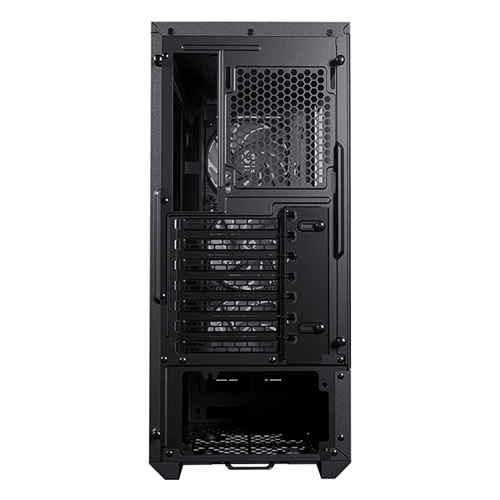

| Expansion Slots | 7 |
| Drive Bays | 2x 3.5" (2 included) / 3x2.5" (2 included) 3x 2.5" (Dedicated Positions) |
| PSU Support | 220 mm / 280 mm (depends on HDD Cage location) |
| Dimensions | 455 x 200 x 460 mm |
| Weight | 6.68 kg |
| Pre-Installed Fans | TOP: N/A Front: 3x 120 mm DRGB Bottom: N/A |
| Fan Support | Top: 3x 120 mm / 2x 140 mm Front: 3x 120 mm / 2x 140 mm Rear: 1x 120 mm |
| Radiator Support | Top: 120 / 240 mm Front: Up to 360 mm Rear: 120 mm |
| Clearance | CPU Cooler Height: 162 mm GPU Length: 400 mm Cable Management: 36 mm Top Radiator: 122 x 398 mm Front Radiator: 122 x 398 mm Rear Radiator: 120 x 170 mm |
| General | Dust Filters: Front, Top, Bottom Chassis Lighting: Yes, D-RGB Lighting |
| Warranty | 5 Years |
| Note | *** Image use as reference only *** Features, Price, Specifications are subject to change without notice. |
Cabinet
| Brand | PHANTEKS |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| Fan Size | 120 MM |
| Fan Size | 140 MM |
| Radiator Support | 120 MM |
| Radiator Support | 240 MM |
| Radiator Support | 360 MM |
