The Phanteks Magnum Gear Neo Air 2 White is a mid tower chassis designed for high airflow performance. It is compatible with a variety of motherboard sizes, including E-ATX, ATX, Micro ATX, and Mini ITX, providing versatility for different build configurations. The chassis supports up to a 360mm radiator, allowing for efficient liquid cooling solutions. Additionally, it comes with three 120mm DRGB fans pre-installed to enhance cooling and aesthetics. Furthermore, the chassis includes dust filters at the front, top, and bottom to minimize dust accumulation and maintain optimal airflow within the system.
Specification
Details
Model
Magnum Gear Neo Air 2
P/N
MG-NE523A-DWT06
Color
White
Materials
Steel Chassis
Side Panel
Tempered Glass
I/O Ports
1x USB 3.0 Type-A
1x USB 3.0 Type-C
Microphone / Headphone
D-RGB (Addressable) control (Mode & Color Button)
Power Button
Reset Button
Motherboard Support
Mini-ITX
Micro-ATX
ATX
E-ATX (up to 280mm wide)
Expansion Slots
7
Drive Bays
2x 3.5" (2 included) / 3x2.5" (2 included)
3x 2.5" (Dedicated Positions)
PSU Support
220 mm / 280 mm (depends on HDD Cage location)
Dimensions
455 x 200 x 460 mm
Weight
6.68 kg
Pre-Installed Fans
Front: 3x 120 mm DRGB
Fan Support
Top: 3x 120 mm / 2x 140 mm
Front: 3x 120 mm / 2x 140 mm
Rear: 1x 120 mm
Radiator Support
Top: 120 / 240 mm
Front: Up to 360 mm
Rear: 120 mm
Clearance
CPU Cooler Height: 162 mm
GPU Length: 400 mm
Cable Management: 36 mm
Top Radiator: 122 x 398 mm
Front Radiator: 122 x 398 mm
Rear Radiator: 120 x 170 mm
General

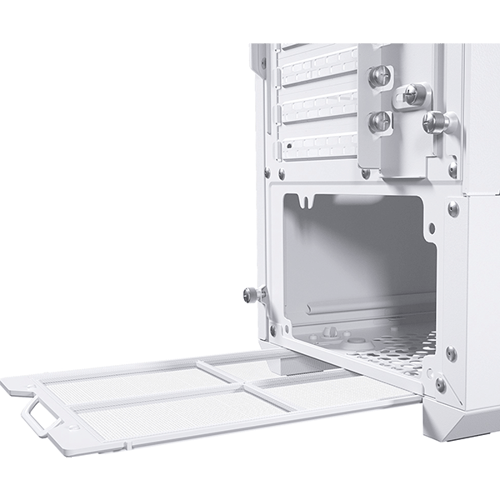

Dust Filters: Front, Top, Bottom
Chassis Lighting: Yes, D-RGB Lighting
Warranty
5 Years
Note
*** Image use as reference only
*** Features, Price, Specifications are subject to change without notice.
