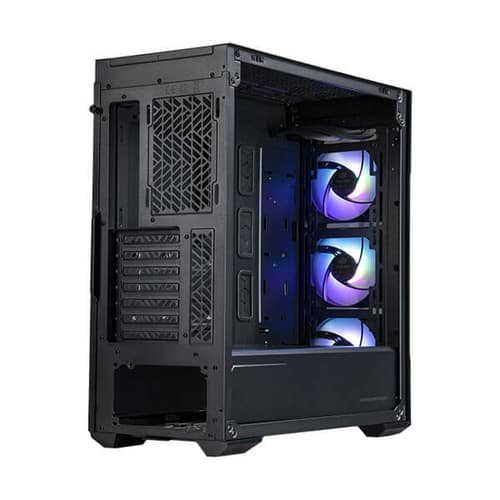

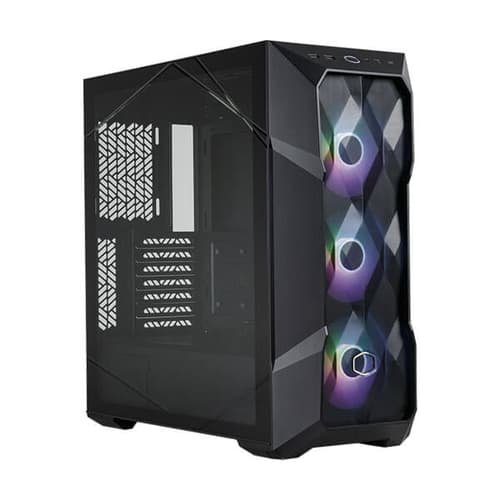

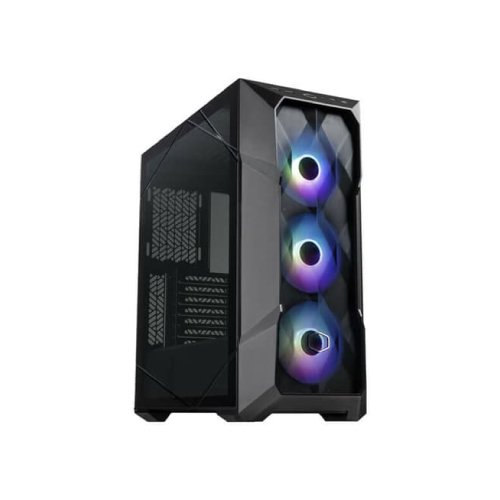

The Cooler Master MasterBox TD500 Mesh V2 ARGB is a mid-tower cabinet designed for ATX and E-ATX motherboards. Here are some specific aspects of this case:

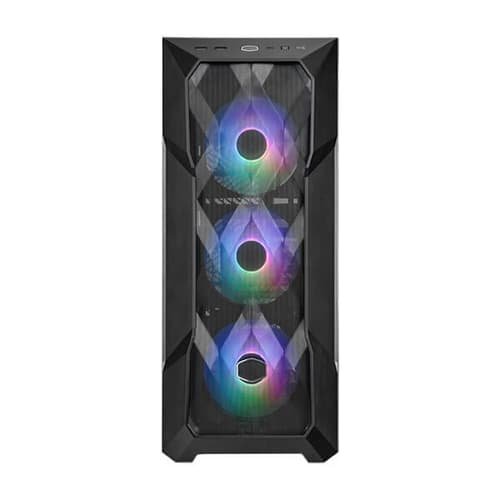

The case has a sleek and modern design with a focus on optimal airflow. It features a mesh front panel to allow for maximum air intake, promoting effective cooling
It supports Extended-ATX (E-ATX), ATX, Micro-ATX, and Mini-ITX motherboards. The case has support for large graphics cards and multiple storage devices.
The TD500 Mesh V2 ARGB is designed for excellent thermal performance. The mesh front panel increases airflow, and the case supports multiple cooling configurations. It comes with pre-installed ARGB (Addressable RGB) fans for eye-catching appeal.
The case features Addressable RGB lighting, allowing you to customize the lighting effects and colours. This can be controlled through compatible motherboard software or an included controller.
It has multiple drive bays for both 2.5" and 3.5" drives, providing flexibility in storage configurations.

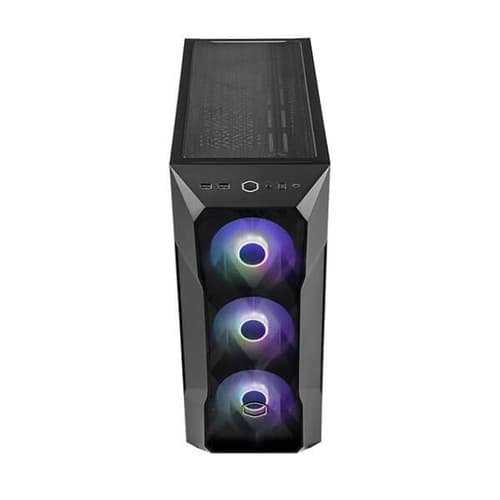

The case includes a front I/O panel with USB ports, audio jacks, and buttons for convenient access.

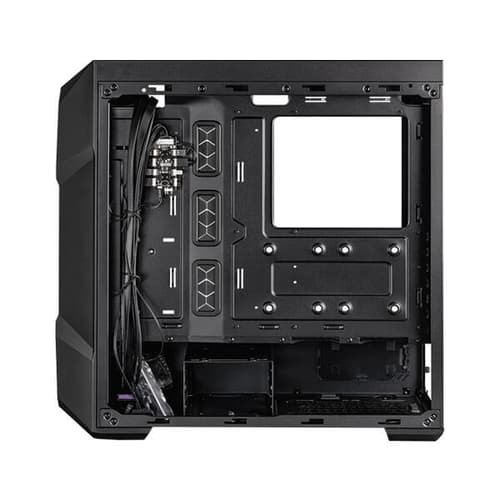

It likely includes features for cable management to keep the interior of the case dust-free.
| Specifications | Value |
|---|---|
| Model Number | TD500V2-KGNN-S00 |
| Exterior Color | Black |
| Materials - Exterior | Steel, Mesh, Plastic |

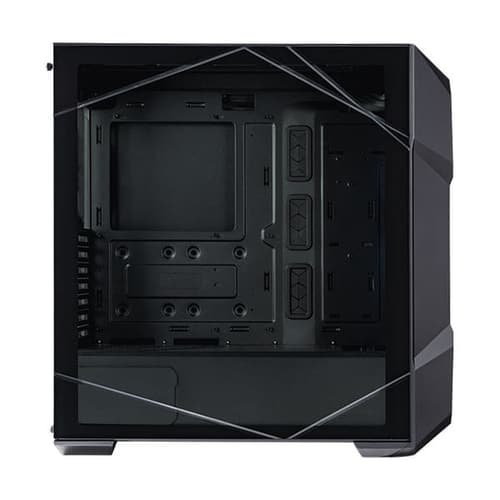

| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |
| Volume | 50L (excl. Protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |

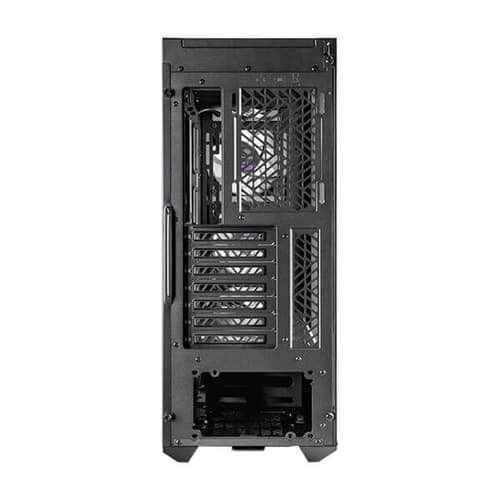

| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x Audio Jack |
| I/O Panel - Other | 1x ARGB Fan HubC |
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm / 6.49" |
| Clearance - PSU | 200mm, (Recommended up to 170mm) |
| Clearance -GFX | 410mm / 16.14" |
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Series | MasterBox Series |
| Warranty | 2 Years |
Black
| Brand | COOLER MASTER |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | MATX |
| Motherboard Size | M-ITX |
| Motherboard Size | SSI CEB |
| LED | ARGB |
| Fan Size | 120 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
