The DeepCool CH510 Mesh Digital is a mid-tower computer case designed to accommodate E-ATX motherboards, offering ample space for high-performance PC builds. Here are some attractive features and specifications you can expect from this case:
The mesh front panel design provides excellent airflow to keep your components cool during intense gaming sessions or heavy workloads.
The case supports Extended ATX (E-ATX) motherboards, allowing you to build systems with larger motherboards for expanded connectivity and performance options.
It features multiple fan mounts, allowing you to install additional case fans for enhanced cooling performance. Look for information on the number and size of fan mounts available.
If you're interested in liquid cooling, the case may support the installation of radiators for CPU or GPU cooling. Check for radiator compatibility and mounting options.
Its handy features such as cable routing channels, tie-off points, and ample space behind the motherboard tray facilitate clean cable management and improve airflow.
The case offers various drive bays and mounting options for both 2.5" SSDs and 3.5" HDDs, allowing you to configure your storage setup according to your needs.

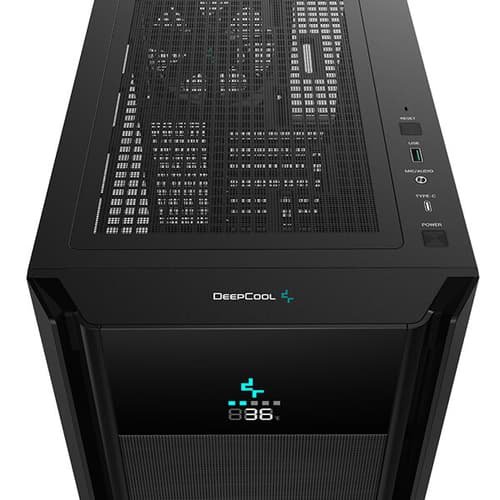

This cabinet has front I/O ports for convenient access to USB ports, audio jacks, and possibly other connectivity options.
The case provides sufficient clearance for your graphics card, especially if you plan to install a high-end GPU or multiple graphics cards in SLI or CrossFire configurations.
DeepCool is well-known for its durability in terms of materials and this case is no exception.
| Specification | Value |
|---|---|
| Model Number | R-CH510-BKNSE1-G-1 |
| Product Dimensions | 455×230×470mm(L×W×H) |
| Net Weight | 7.5Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×1、Tpye-c×1、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 （maximum length: 170mm） |
| Warranty | 1 Year |
Cabinet
| Brand | DEEPCOOL |
| Stock Status | IN STOCK |
| Material | TEMPERED GLASS |
| Material | SPCC |
| Cabinet Size | MID-TOWER |
| Motherboard Size | ATX |
| Motherboard Size | E-ATX |
| Motherboard Size | ITX |
| Motherboard Size | MATX |
| LED | ARGB |
| Fan Size | 120 MM |
| Radiator Support | 120 MM |
| Radiator Support | 140 MM |
| Radiator Support | 240 MM |
| Radiator Support | 280 MM |
| Radiator Support | 360 MM |
| Shipping Cost |
|
| Shop Location |
