MSI (Micro-Star International) - a well-known manufacturer of computer hardware, including motherboards, graphics cards, and power supplies.

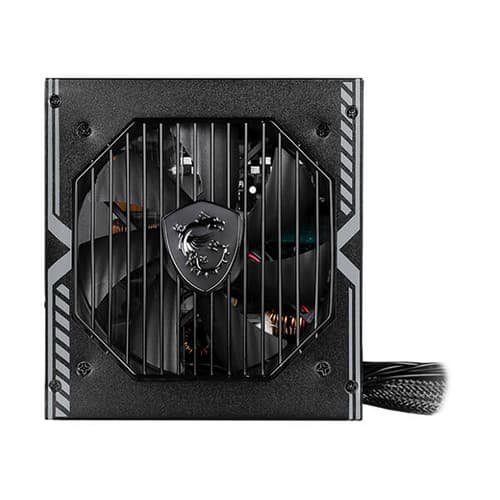

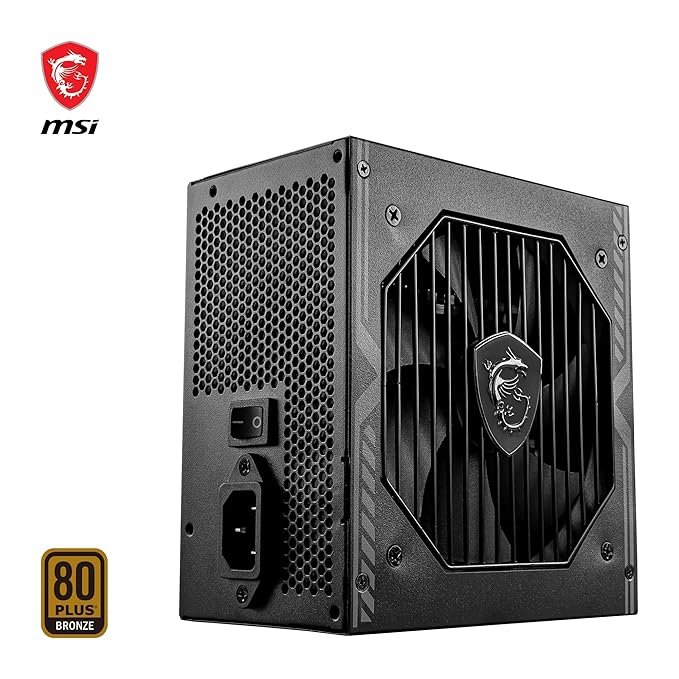

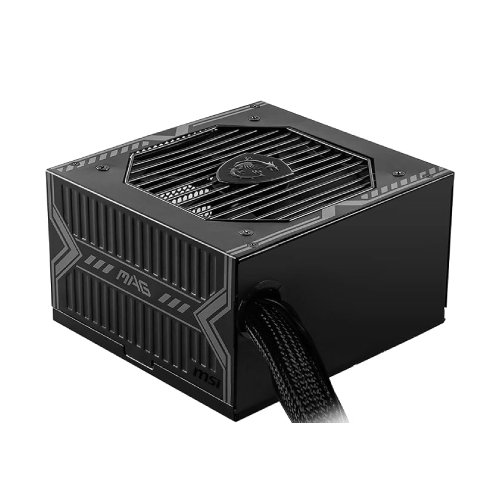

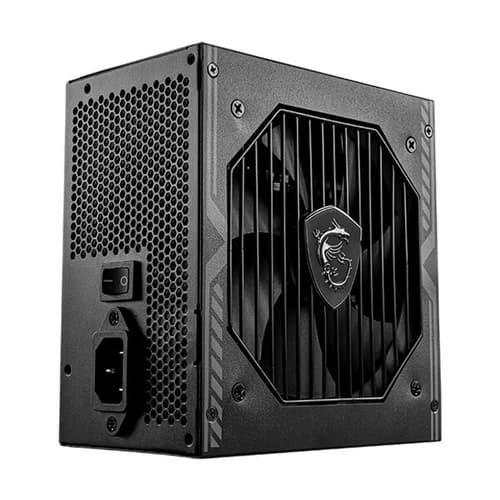

MAG A750BN - This is the specific model of the power supply.
It has a power output of 750 watts, which indicates its capacity to deliver electrical power to the components of a computer system.
It is rated as 80 Plus Bronze. This rating signifies its efficiency in converting AC power from the wall outlet into DC power for the computer components. An 80 Plus Bronze rating means that the PSU operates at 82-85% efficiency at 20-100% load.
PCIE5 refers to its compatibility with the PCIe 5.0 standard, which is the latest version of the Peripheral Component Interconnect Express standard for connecting various components inside a computer, such as graphics cards.
SMPS is the abbreviation for Switched-Mode Power Supply which utilizes switching regulators to convert electrical power efficiently. It's the most common type of power supply used in modern computers.
| Specifications | Value |
| Model | MAG A750BN PCIE5 |
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (DxWxH) | 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 750W |
| Input Frequency Range | 50~60Hz |
| Protection | OCP, OVP, OPP, OTP, SCP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1(300W) |
| PCI-E (6+2 pin) | 2 |
| SATA (15 pin) | 5 |
| MOLEX (4 pin) | 2 |
| FDD (4 pin) | 1 |
| Warranty | 5 Years |
SMPS
| Brand | MSI |
| Stock Status | IN STOCK |
| Wattage | 750 WATT |
| Certification | 80 PLUS BRONZE |
| Modular | NON MODULAR |
| PCle Connector (6+2) | 2 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 2 |
| Series | MAG SERIES |
| Shipping Cost |
|
| Shop Location |
