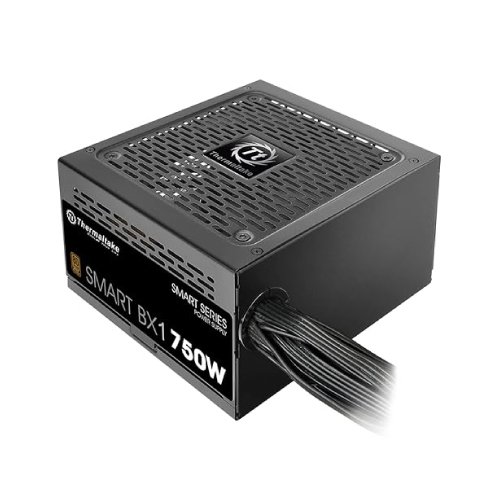

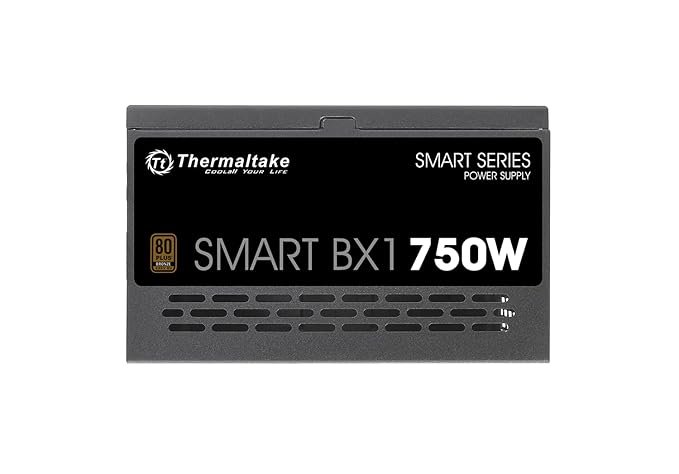

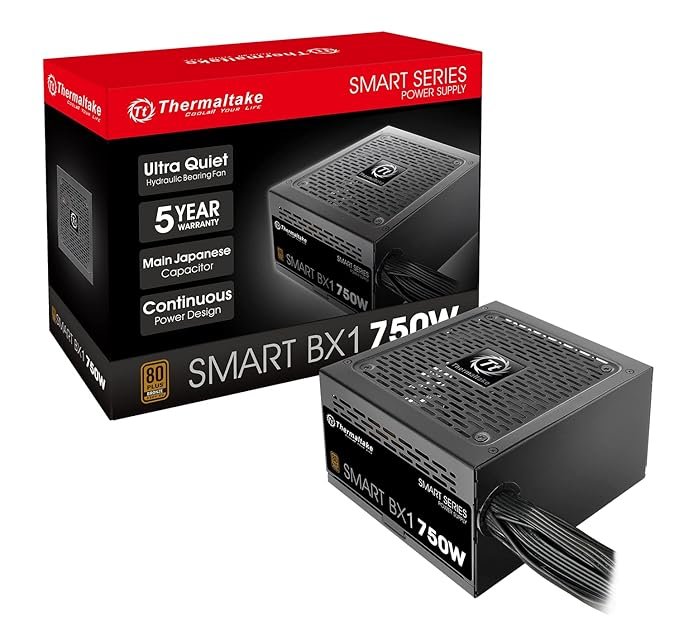

The Thermaltake Smart Series BX1 750W power supply is designed to provide reliable and efficient power to your PC components. Let's break down its features:
80 PLUS Bronze Certification: This power supply is built to deliver 80 PLUS Bronze certification with 88% power efficiency. This ensures that it operates efficiently, converting more power from the wall outlet into usable power for your computer, which can lead to cost savings on electricity bills.
Hydraulic Bearing Fan: Equipped with a 120mm hydraulic bearing fan, the Smart BX1 750W power supply ensures superior cooling performance while maintaining near-silent operation. The intelligent RPM controls help regulate fan speed for optimal cooling.
Low Ripple Noise: The power supply maintains low ripple noise levels, ensuring stable operation and reliability even under heavy loads. This feature is crucial for maintaining the performance and longevity of high-end components like graphics cards.
Premium Japanese Main Capacitor: The power supply is constructed with premium Japanese main capacitors, offering great durability and stability while remaining reliable.
High Amperage Single +12V Rail: With a powerful single +12V rail, the power supply ensures a stable and reliable power supply to all PC components, supporting their optimal performance.
Multiple Connectors: The power supply comes with multiple connectors, including 8x SATA, 4x PCIe 6+2 Pin, and 4x PATA + 1 Floppy connectors. Soft black cables with sleeve cabling make cable installation easy while ensuring optimal voltages to power the system.
80 PLUS Gold Certified and Intel C6/C7 States Ready: The Smart BX1 series power supply saves energy through its high energy efficiency of up to 88% and is certified to 80 PLUS Bronze. It is optimized to work with all generations of Intel processors to achieve maximum energy savings.
Overall, the Thermaltake Smart Series BX1 750W power supply offers a combination of efficiency, reliability, and performance, making it suitable for value-oriented users seeking a high-quality power supply with advanced features.
Thermaltake Smart Series BX1 750W Power Supply Specifications
| Specification | Details |
|---|---|
| P/N | PS-SPD-0750NNSABD-1 |
| Watts | 750W |
| RGB Fan | No |
| Form Factor | ATX |
| Model | SPD-750AH2NKB |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimension (W / H / D) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Input Current | 12A max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 5°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2PIN | 4 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
SMPS
| Brand | THERMALTAKE |
| Stock Status | IN STOCK |
| Wattage | 750 WATT |
| Certification | 80 PLUS BRONZE |
| Modular | NON MODULAR |
| PCle Connector (6+2) | 4 |
| SATA Connector | 8 |
| Peripheral (4-Pin) | 4 |
| Series | SMART SERIES |
