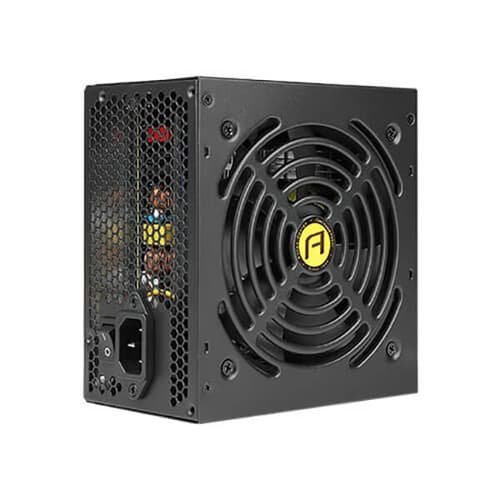

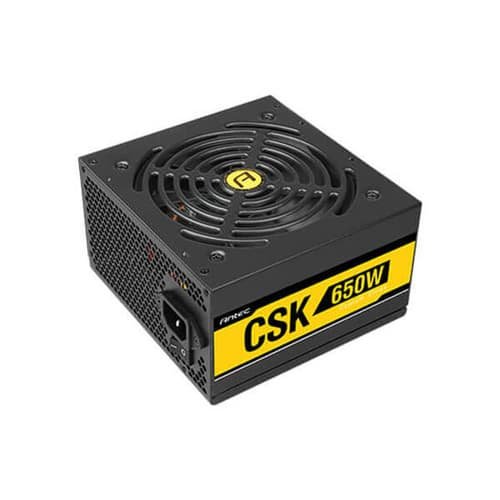

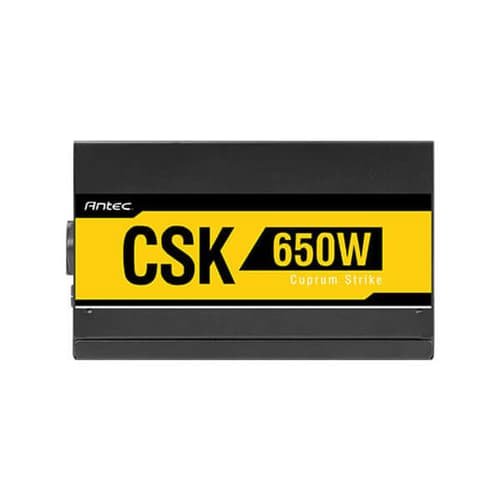

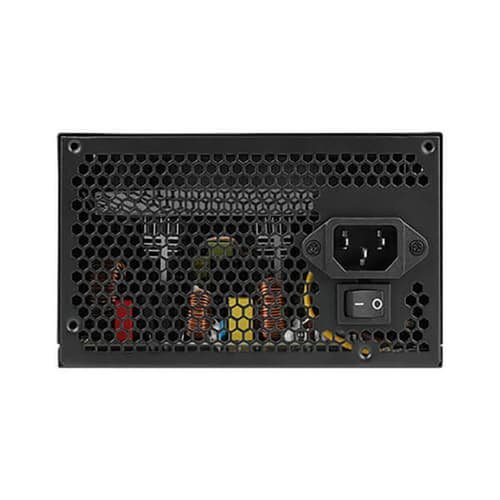

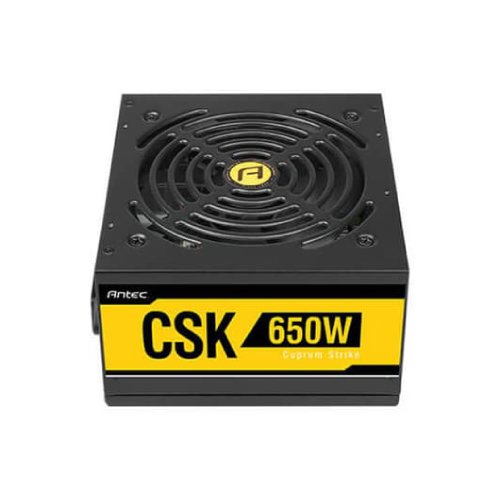

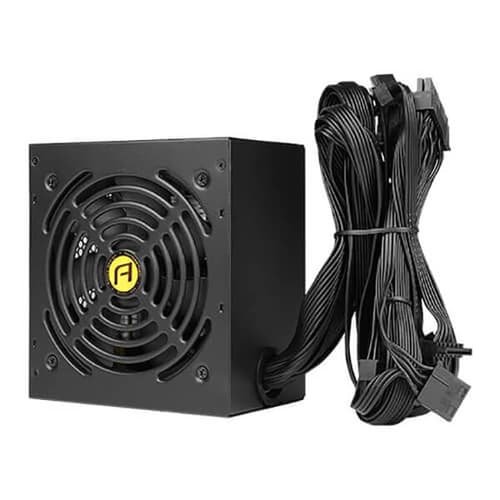

Antec presents the CSK Series 650 Watt 80 Plus Bronze SMPS, a power supply unit meticulously engineered for top-tier quality, efficiency, and performance. This power supply is armed with notable features, including 80 PLUS Bronze certification, a subdued 120 mm fan, and is backed by Antec's 3-year warranty with an additional 2 years of extended warranty.
Key Features:
80 PLUS Bronze Certified:
The CSK Series proudly carries the 80 PLUS Bronze certification, signifying exceptional efficiency. With up to 88% efficiency and active PFC (Power Factor Correction), the power supply ensures a cooler and quieter system, fueled by Continuous Power. 650 Watt Power Supply:
Delivering a robust 650 watts of power, the CSK Series is equipped to handle the energy demands of modern computing setups. SATA and PCIe Connectors:
With 7 SATA slots and 2x 6+2 Pin PCIe connectors, the power supply provides extensive connectivity options for storage devices and graphics cards. Additionally, it includes 3x SATA connectors and a thoughtful inclusion of a 1x floppy connector for versatility. Extended Warranty:
Antec stands behind the CSK Series with a comprehensive warranty package. The power supply comes with a standard 3-year warranty, and to provide users with added assurance, an extra 2 years of extended warranty is included, ensuring long-term reliability and support. CircuitShield™ Industrial-Grade Protections:
The CSK Series is fortified with Antec's CircuitShield™ suite, offering industrial-grade protections. These safeguards ensure that the power delivered to your system is secure and reliable, catering to diverse environmental conditions. 120 mm Silent Fan:
The integrated 120 mm silent fan is a standout feature, designed for quiet computing environments. Its extended lifetime guarantees hours of operation without compromising on efficient cooling. In summary, the Antec CSK Series 650 Watt 80 Plus Bronze SMPS is a powerhouse that not only meets the rigorous standards of efficiency but also provides a quiet and reliable solution for your computing needs. With a robust power output, thoughtful connectivity options, extended warranty, and industrial-grade protections, it stands as a solid choice for those seeking a high-performance power supply unit.
| Specifications | Details |
|---|---|
| Model | CSK650 Bronze |
| Type | ATX 12V 2.31 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Input Voltage | 100 ~ 240 VAC |
| Input Current | 10A ~ 5A |
| Input Frequency Range | 50Hz ~ 60Hz |
| PFC | Active PFC |
| Power Good Signal | 100 ~ 500ms |
| Efficiency | 88% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO/OTP |
| Output Capacity | 650W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/FCC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | |
| - 1 x MB 24(20+4) Pin | |
| - 1 x 8(4+4) Pin EPS 12V | |
| - 4 x 8(6+2) Pin PCI-E | |
| - 7 x SATA | |
| - 2 x Molex | |
| - 1 x FDD | |
| Net Weight | 1.95 Kgs |
| Gross Weight | 2.13 Kgs |
| Warranty | 3+(2 Extended) Years |
| Note | *** Features, Price, Specifcations are subject to change without notice. |
SMPS
| Brand | ANTEC |
| Stock Status | IN STOCK |
| Wattage | 650 WATT |
| Certification | 80 PLUS BRONZE |
| Modular | NON MODULAR |
| PCle Connector (6+2) | 2 |
| SATA Connector | 7 |
| Peripheral (4-Pin) | 2 |
| Series | CSK SERIES |
