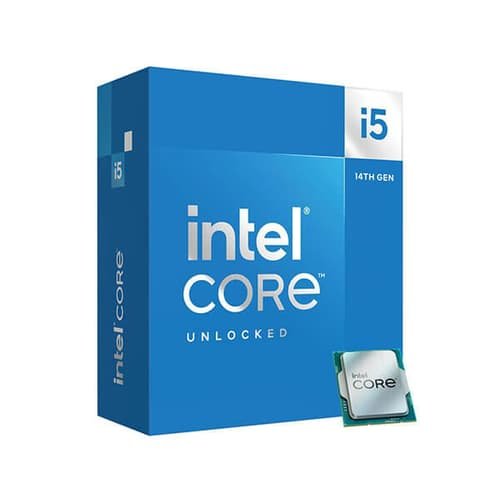

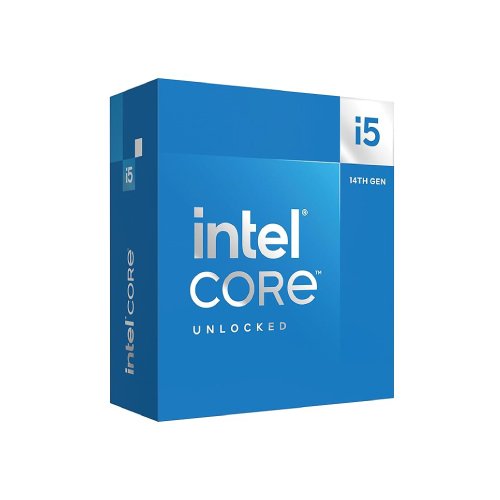

The Intel Core i5-14600K Desktop Processor seems to be quite the powerhouse, featuring a combination of P-cores and E-cores to deliver high performance across various tasks. Let's break down its features:
Core Configuration: The processor contains a total of 14 cores, which are divided into 6 Performance cores (P-cores) and 8 Efficiency cores (E-cores). This configuration allows for optimized performance for both demanding tasks that benefit from higher clock speeds (P-cores) and lighter workloads that benefit from energy efficiency (E-cores).
Thread Count: With 20 threads available, the processor can handle multiple tasks simultaneously, thanks to Intel's Hyper-Threading technology. This improves overall multitasking performance.
Turbo Boost Max Technology 3.0: This technology dynamically boosts the frequency of the processor cores to deliver increased performance when needed. It identifies the fastest cores on a processor and directs critical workloads to them, enhancing single-threaded performance.
PCIe Support: The processor supports both PCIe 5.0 and PCIe 4.0, providing high-speed connectivity for peripherals such as graphics cards, storage devices, and networking cards. PCIe 5.0 offers even faster data transfer speeds compared to PCIe 4.0.
Intel Optane Memory Support: Optane Memory is a type of non-volatile memory developed by Intel that offers high-speed performance and data persistence. By supporting Optane Memory, this processor can take advantage of faster storage solutions, enhancing overall system responsiveness.
No Thermal Solution Included: Unlike some processors that come bundled with a stock cooler, the Intel Core i5-14600K does not include a thermal solution. This means users will need to purchase a separate cooling solution to keep the processor operating at optimal temperatures, especially under heavy workloads or overclocking scenarios.
Overall, the Intel Core i5-14600K appears to be a versatile and powerful processor suitable for a range of computing tasks, from gaming to content creation, thanks to its combination of high-performance and energy-efficient cores, robust thread count, and support for advanced technologies like Turbo Boost Max, PCIe 5.0, PCIe 4.0, and Intel Optane Memory.
Intel Core i5-14600K Desktop Processor Specifications
| Specification | Details |
|---|---|
| Model | i5-14600K |
| Product Collection | Intel® Core™ i5 Processors (14th gen) |
| Code Name | Products formerly RAPTOR LAKE |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 20 |
| Max Turbo Frequency | 5.3 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core Base Frequency | 3.5 GHz |
| Efficient-core Base Frequency | 2.6 GHz |
| Cache | 24 MB Intel® Smart Cache |
| Total L2 Cache | 20 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 181 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4'23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s |
| Up to DDR4 3200 MT/s | |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| GPU Specifications | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
