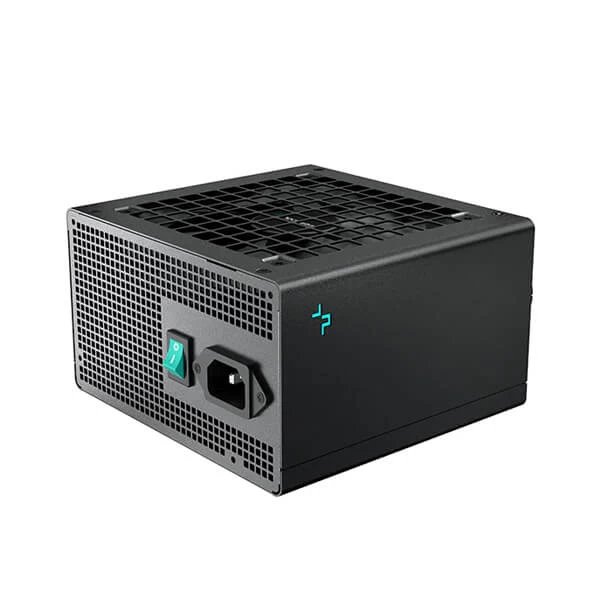

The Deepcool PK450D is a power supply unit (PSU) manufactured by Deepcool, a company known for producing cooling solutions and computer hardware components. Here are some key features of the Deepcool PK450D 450 Watt 80 Plus Bronze SMPS:
The PK450D has a maximum power output of 450 watts, making it suitable for powering mid-range to some high-end gaming systems or workstations.
The '80 Plus Bronze' certification indicates that the PSU is energy efficient, with at least 82% efficiency at 20% load, 85% efficiency at 50% load, and 82% efficiency at 100% load. This helps reduce energy consumption and heat output, resulting in lower electricity bills and better overall system stability.
The PK450D adheres to the ATX form factor, making it compatible with most standard ATX cases. It should fit properly into the designated PSU mounting area in the case.
It comes with standard connectors including the 24-pin ATX power connector, 4/8-pin CPU power connector, SATA power connectors for drives, PCIe power connectors for graphics cards, and peripheral connectors for other components.
The PSU may feature Active Power Factor Correction (PFC), which helps improve power efficiency and reduces harmonic distortion in the electrical system.
Deepcool PSUs are often designed with quiet operation in mind, utilizing features such as optimized fan curves and high-quality components to minimize noise levels.
It may include various protection mechanisms such as Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Power Protection (OPP) to safeguard the system components from damage due to power fluctuations or failures.
Deepcool is well-known for building its PSUs with quality components to ensure reliability and longevity under various operating conditions.
| Specification | Value |
|---|---|
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Bronze |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC+DC to DC |
| Capacitors | Taiwan capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 - 40 °C |
| Regulatory | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS |
| Erp Regulation | ErP 2013 |
| MTBF | 100,000 Hours |
| Wattage | 450 Watt |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 3 |
| Warranty | 5 Years |
