Max CPU Height and PSU Size:
The Antec DF700 FLUX Mid-Tower Cabinet is designed to accommodate a maximum CPU cooler height of 175 mm and a power supply unit (PSU) with a maximum length of 205 mm. These specifications ensure compatibility with a variety of cooling solutions and PSUs. Dust Protection:
The chassis recognizes the detrimental effects of dust on system components. To counter this, the ANTEC DF700 FLUX Mid-Tower Cabinet is equipped with magnetic dust filters on the top, front, and right side. These filters not only effectively shield the interior from dust but are also easy to remove and clean, maintaining optimal airflow and system cleanliness. In-built ARGB Controller:
The cabinet features an in-built ARGB (Addressable RGB) controller, providing support for up to 6 x 3-pin ARGB connectors. This allows users to customize and control the lighting effects of compatible ARGB components within the system. F-LUX Platform-GPU Enhanced Structure:
The F-LUX Platform-GPU is highlighted as a revolutionary structure designed by Antec to enhance airflow within the system. This structure, combined with 5 pre-installed 120mm fans, contributes to an improved and powerful cooling solution, especially focused on enhancing GPU cooling performance. Ample Room for Cable Management:

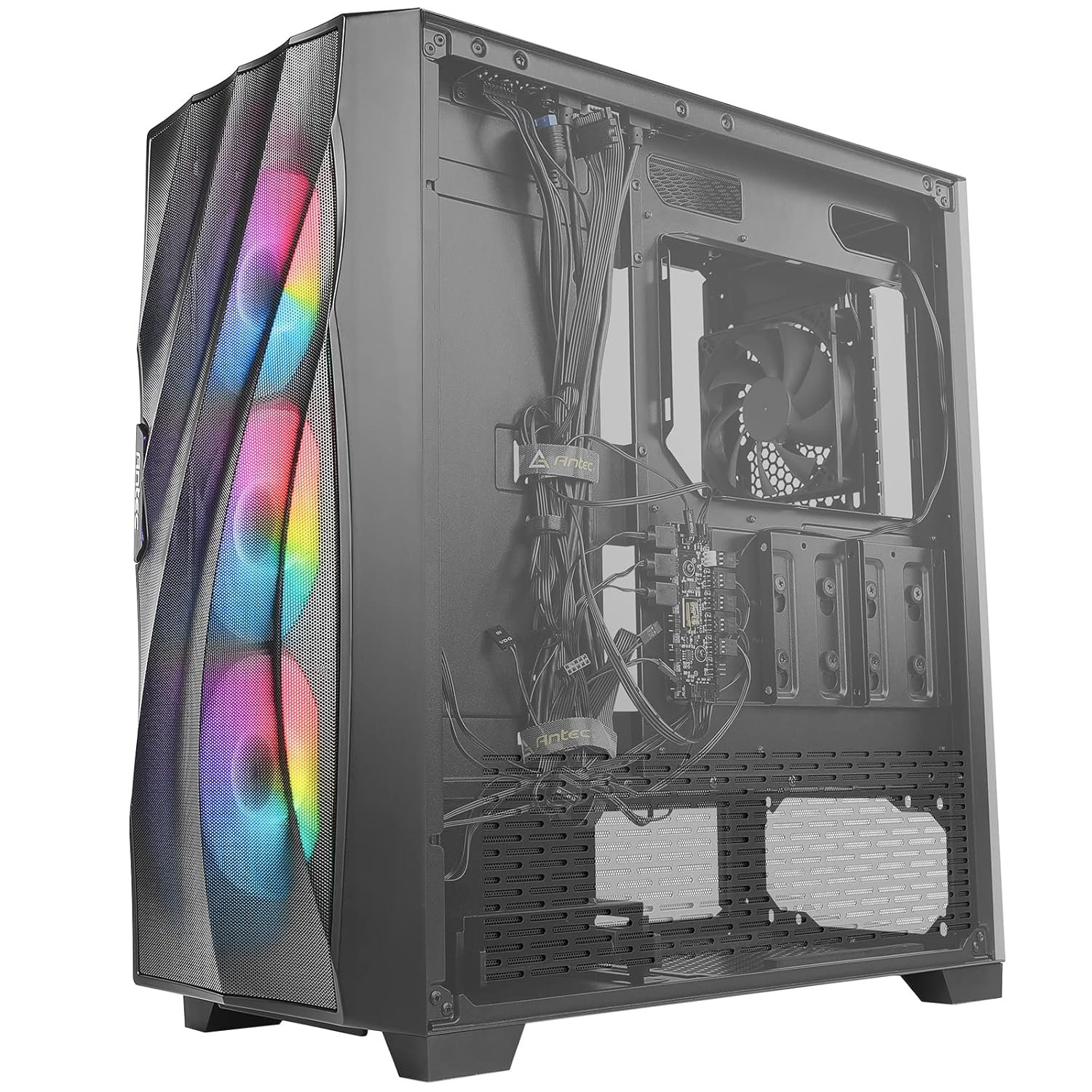

The chassis offers ample room for cable management, providing a clean and organized interior. This not only enhances the aesthetics of the build but also aids in maintaining unobstructed airflow, contributing to better cooling performance. Additional Features:
The cabinet boasts additional features, including great heat dissipation with massive airflow, reusable PCIe slots (7 in total), a USB dust plug, support for up to 9 fans (5 pre-installed 120mm fans), a pre-installed 120mm reverse fan for efficient air circulation, and a 4mm tempered glass side panel for showcasing internal components. Three-dimensional Airflow Mesh Panel Design:
The three-dimensional airflow mesh panel design is mentioned as part of the features, indicating a design approach that promotes efficient and unrestricted airflow throughout the chassis. F-LUX Platform - Antec's Original Cooling Solution:
The F-LUX Platform is described as Antec's original cooling solution, emphasizing its industry-leading and highly efficient design. It is specifically engineered to address the enhanced thermal requirements of modern CPUs, especially focusing on GPU cooling performance. The term "FLUX" is derived from "Flow Luxury," highlighting its emphasis on airflow. In summary, the Antec DF700 FLUX Mid-Tower Cabinet combines innovative features, advanced cooling solutions, and thoughtful design elements to provide users with a high-performance and visually appealing chassis.
| Specifications | Details |
|---|---|
| Model | DF700 FLUX |
| Case Specifications | |
| - Dimensions | 467 x 220 x 486 mm (DxWxH) |
| - Form Factor | Mid Tower |
| - Materials | Steel + Plastic |
| - Mainboard Support | ATX, Micro-ATX, Mini-ITX |
| - Front Access & Controls | Power, LED Control Button, 2 x USB3.0, HD-AUDIO |
| - Side Panel | 4 mm Tempered Glass Side Panel |
| Expansion & Drive Bays | |
| - Expansion Slots | 7 |
| - 5.25" | - |
| - 3.5"/2.5" (convertible) | 3/2 |
| - 2.5" | 3 |
| Fans | |
| - Front | 3 x 120mm / 3 x 140mm |
| - Top | 3 x 120mm / 2 x 140mm |
| - Power Supply Shroud | 2 x 120mm |
| - Rear | 1 x 120mm |
| - Included Fans | 3 x 120mm ARGB fans in front |
| 1 x 120mm fan (Reverse Fan) on PSU shroud & 1 x 120mm fan in rear | |
| Radiator Support | |
| - Front | 120/240/280/360mm |
| (≤ 55mm thickness when fans are installed outside of front panel) | |
| (≤ 30mm thickness when fans are installed inside of front panel) | |
| - Top | 120/240/280/360mm |
| - Rear | 120mm |
| Clearance | |
| - Max GPU Length | ≤ 405mm |
| - Max CPU Height | ≤ 175mm |
| - PSU Support | ≤ 205mm |
| Miscellaneous | |
| - Dust Filter | Top/Bottom/ Right Hand Side |
| - Net Weight | 7.4KG |
| - Gross Weight | 8.6KG |
| Warranty | 2 Years |
| Note | *** Features, Specifications, Price are subject to change without notice. |
